Volkswagen ID.3: Lights, lamps, switches outside. Towing bracket

• Removing and installing trailer detector control unit [J345]

Removing and installing trailer detector control unit [J345]

Removing and installing trailer detector control unit [J345]

The trailer detector control unit -J345- will henceforth be referred to as trailer detector control unit.

Removing

If the trailer detector control unit is renewed, perform the test plan for the renewal of the trailer detector control unit:

– Carry out function “Renew trailer detector control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.

Continued

– Remove left luggage compartment side trim → General body repairs, interior; Rep. gr.70; Luggage compartment trims; Removing and installing luggage compartment side trim.

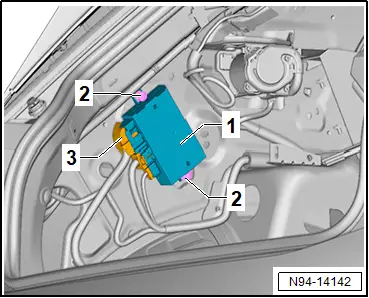

– Remove spreader rivet -2-.

– Remove trailer detector control unit -1-.

– Disconnect electrical connectors -3-.

Installing

Install in reverse order of removal, observing the following:

If the trailer detector control unit has been renewed, conclude the test plan for the renewal of the trailer detector control unit:

– Carry out function “Renew trailer detector control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.
