Overview of fitting locations – lights in dash panel
Overview of fitting locations - lights in front doors
Overview of fitting locations – lights in luggage compartment
Overview of fitting locations - lights in centre console
Overview of fitting locations – lights in roof trim
Removing and installing footwell/luggage compartment light
Removing and installing central locking SAFELOCK function warning lamp [K133]
Removing and installing rear illuminated vanity mirror [W49]/[W50]
Removing and installing dynamic light strip 3 for information in dash panel [L385]
Removing and installing light 1 for front centre console background lighting [L193]
Removing and installing light 1 for dash panel contour lighting [L243], driver side
Removing and installing light 2 for dash panel contour lighting [L244]/[L245], front passenger side

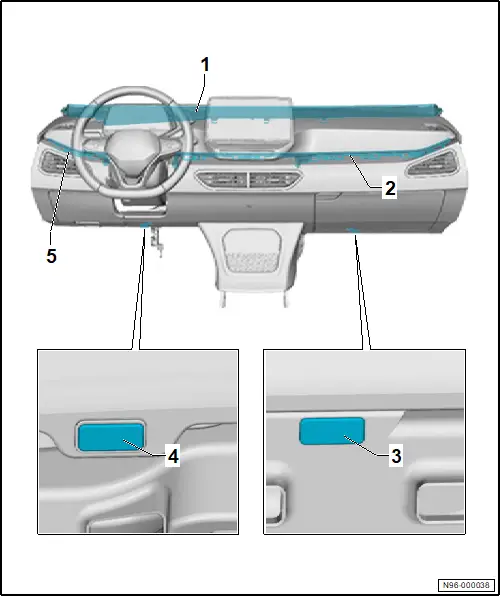

Overview of fitting locations – lights in dash panel

Overview shown for a left-hand drive vehicle as an example

1 - Dynamic light strip 3 for information -L385-

❏ → Rep. gr.96; Removing and installing dynamic light strip 3 for information in dash panel [L385]

2 - Contour lighting of dash panel

❏ With light 3 for dash panel contour lighting -L245-

❏ With light 2 for dash panel contour lighting -L244-

❏ → Rep. gr.96; Removing and installing light 2 for dash panel contour lighting [L244]/[L245], front passenger side

3 - Right footwell light -W10-

❏ → Rep. gr.96; Removing and installing footwell/luggage compartment light

4 - Left footwell light -W9-

❏ → Rep. gr.96; Removing and installing footwell/luggage compartment light

5 - Light 1 for dash panel contour lighting -L243-

❏ → Rep. gr.96; Removing and installing light 1 for dash panel contour lighting [L243], driver side

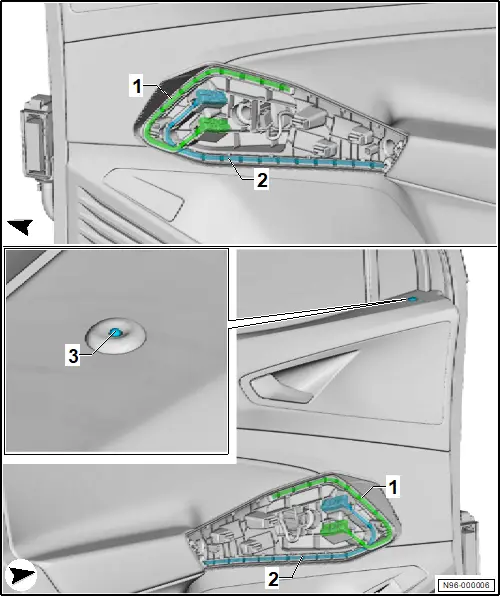

Overview of fitting locations - lights in front doors

The overview shows a left-hand drive vehicle as an example.

1 - Light for front left door contour lighting -L251-/light for front right door contour lighting -L252-

❏ → General body repairs, interior; Rep. gr.70; Front door trims; Removing and installing front door trim

2 - Light 2 for front left door contour lighting -L296-/light 2 for front right door contour lighting -L297-

❏ → General body repairs, interior; Rep. gr.70; Front door trims; Removing and installing front door trim

3 - Central locking SAFELOCK function warning lamp -K133-

❏ → Rep. gr.96; Removing and installing central locking SAFELOCK function warning lamp [K133]

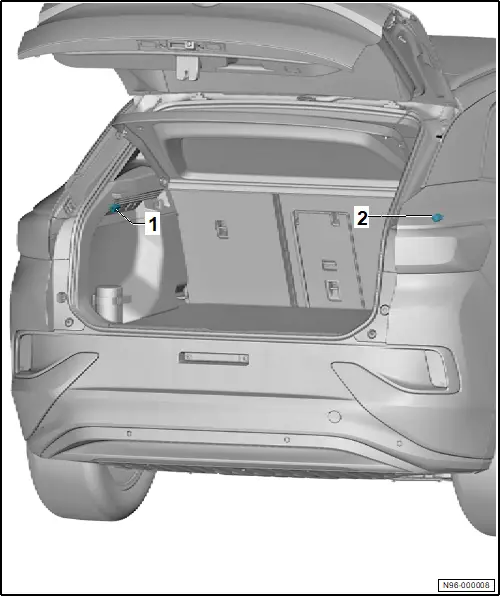

Overview of fitting locations – lights in luggage compartment

1 - Left luggage compartment light -W18-

❏ → Rep. gr.96; Removing and installing footwell/luggage compartment light

2 - Right luggage compartment light -W35-

❏ Depending on model

❏ → Rep. gr.96; Removing and installing footwell/luggage compartment light

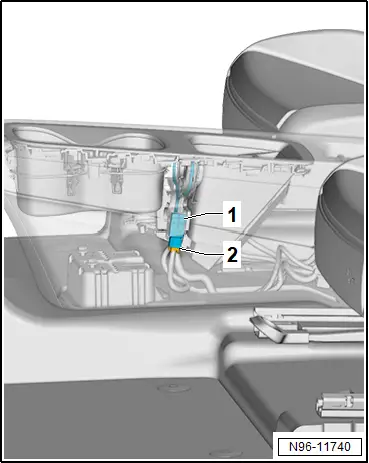

Overview of fitting locations - lights in centre console

1 - Light 1 for front centre console background lighting -L193-

❏ → Rep. gr.96; Removing and installing light 1 for front centre console background lighting [L193]

2 - Electrical connector

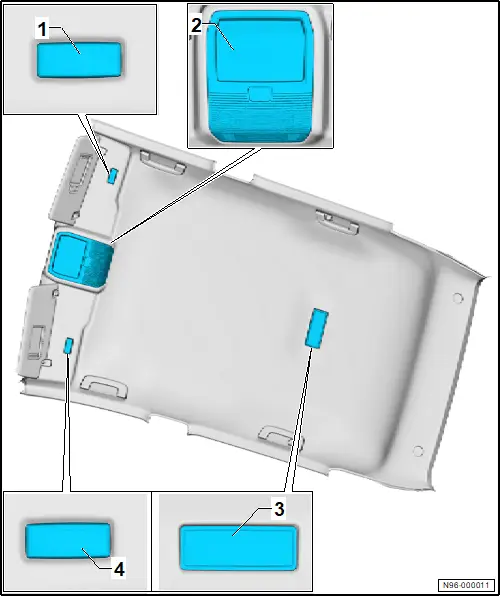

Overview of fitting locations – lights in roof trim

The overview shows a left-hand drive vehicle as an example

1 - Rear left illuminated vanity mirror -W49-

❏ → Rep. gr.96; Removing and installing rear illuminated vanity mirror [W49]/[W50]

2 - Front roof module -WX3-

❏ With front passenger airbag warning lamp -K145-

❏ With front left reading light -W65-

❏ With front right reading light -W66-

❏ With button illumination bulb -L76-

❏ Can only be renewed together with front roof module -WX3-

❏ → Rep. gr.96; Removing and installing front roof module [WX3]

3 - Rear interior light -WX2-

❏ With rear left reading light -W11-

❏ With rear right reading light -W12-

❏ Can only be renewed together with rear interior light -WX2-

❏ → Rep. gr.96; Removing and installing rear interior light [WX2]

4 - Rear right illuminated vanity mirror -W50-

❏ → Rep. gr.96; Removing and installing rear illuminated vanity mirror [W49]/[W50]

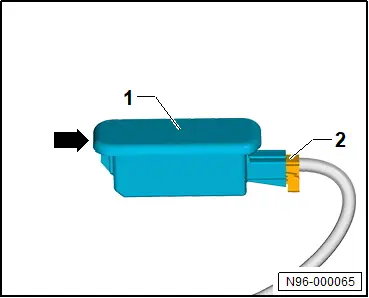

Removing and installing footwell/luggage compartment light

Removing

NOTICE

Risk of damage to component surfaces.

– Before using a lever, always mask off the components installed in visible areas using commercially available adhesive tape.

– Release locking device -arrow-.

– Swivel out light -1-.

– Disconnect electrical connector -2-.

Installing

Install in reverse order of removal.

Removing and installing central locking SAFELOCK function warning lamp [K133]

Removing

– Remove front door trim → General body repairs, interior; Rep. gr.70; Front door trims; Removing and installing front door trim.

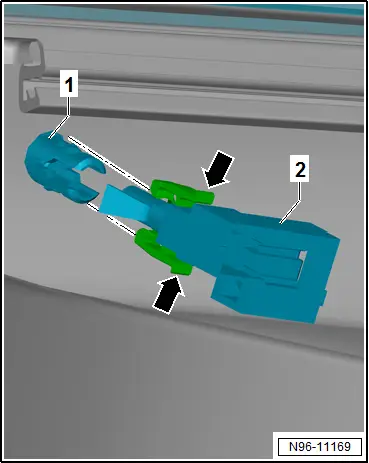

– Release locking devices -arrows-.

– Pull central locking SAFELOCK function warning lamp -K133- -2- out of mounting -1-.

Installing

Install in reverse order of removal.

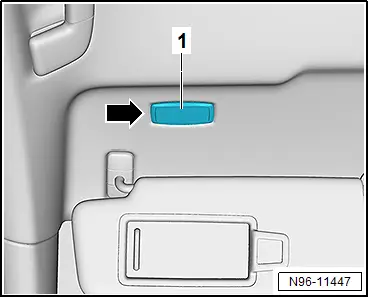

Removing and installing rear illuminated vanity mirror [W49]/[W50]

Rear left illuminated vanity mirror -W49- and rear right illuminated vanity mirror -W50- are referred to hereafter as light.

Removal and installation are described for the left vehicle side as an example.

Removing

– Swing sun visor towards front.

NOTICE

Risk of damage to surfaces of components.

– Before using a lever, always mask off the components installed in visible areas using commercially available adhesive tape.

– Use a commercially available plastic wedge to lever off light -1- at recess -arrow- and remove.

– Disconnect electrical connector.

Installing

Install in reverse order of removal.

Removing and installing dynamic light strip 3 for information in dash panel [L385]

Special tools and workshop equipment required

♦ hook -T10538-

Dynamic light strip 3 for information in dash panel -L385- is referred to hereafter as light strip.

Removing

– Remove A-pillar trims → General body repairs, interior; Rep. gr.70; Trims, interior; Removing and installing upper A-pillar trim.

– Remove cover for dash panel/head-up display → General body repairs, interior; Rep. gr.70; Removing and installing cover for dash panel/head-up display.

Important

● The entire surface of the dash panel must be covered and protected due to the risk of damage to component surfaces by leverage tools.

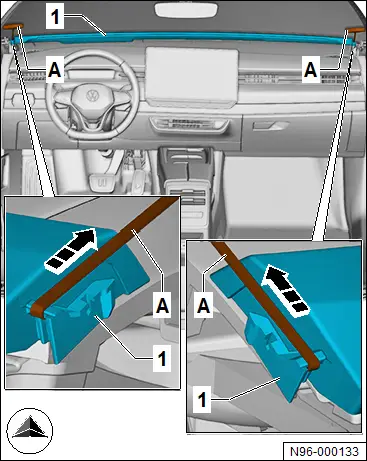

– Use hook -T10538- -A- to detach light strip -1- on front passenger side parallel to dash panel in direction of -arrow-.

– Secure light strip -1- against re-engaging.

– Use hook -T10538- -A- to detach light strip -1- on driver side parallel to dash panel in direction of -arrow-.

– Remove light strip -1-, and disconnect electrical connector.

Installing

Install in reverse order of removal, observing the following:

Vehicles with identification number in front of light strip:

Aid of additional person is required for installation of light strip. Vehicle identification number must be visible from outside following installation.

– Make sure that plate with vehicle identification number is not deformed when attaching light strip.

All vehicles (continued)

– Engage light strip starting in centre.

Removing and installing light 1 for front centre console background lighting [L193]

Light 1 for front centre console background lighting -L193- will henceforth be referred to as “background lighting”.

Removing

– Remove centre console insert → General body repairs, interior; Rep. gr.68; Centre console; Removing and installing centre console insert .

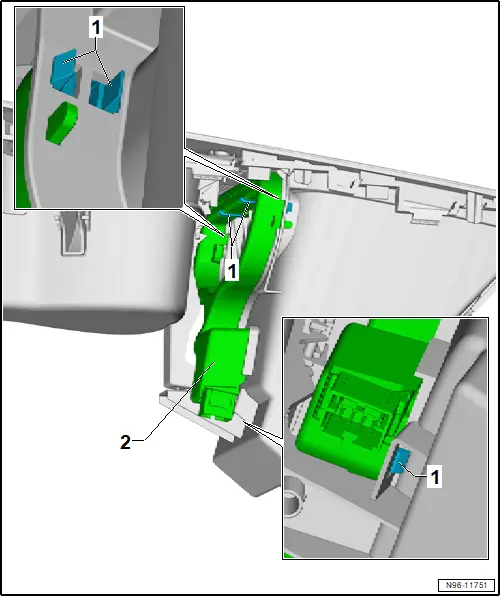

– Release locking devices -1-.

– Remove background lighting -2-.

– Disconnect electrical connector.

Installing

Install in reverse order of removal.

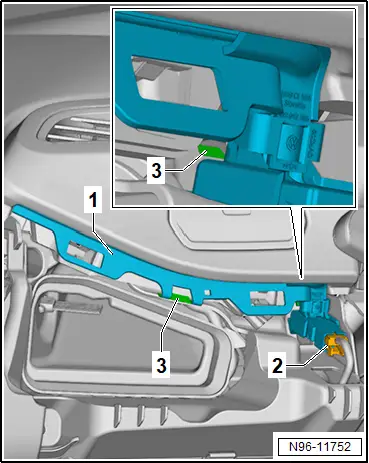

Removing and installing light 1 for dash panel contour lighting [L243], driver side

The light 1 for dash panel contour lighting -L243- will henceforth be referred to as contour lighting.

The removal procedure is shown for a left-hand drive vehicle as an example.

Removing

– Remove dash panel end cover on driver side → General body repairs, interior; Rep. gr.70; Dash panel; Removing and installing dash panel end cover.

– Disconnect connector -2-.

– Release locking device -3-.

– Remove contour lighting -1-.

Installing

Install in reverse order of removal.

Removing and installing light 2 for dash panel contour lighting [L244]/[L245], front passenger side

The light 2 for dash panel contour lighting -L244-/light 3 for dash panel contour lighting -L245- will henceforth be referred to as contour lighting.

The removal procedure is shown for a left-hand drive vehicle as an example.

Removing

– Remove dash panel trim on front passenger side → General body repairs, interior; Rep. gr.70; Dash panel; Removing and installing dash panel end cover.

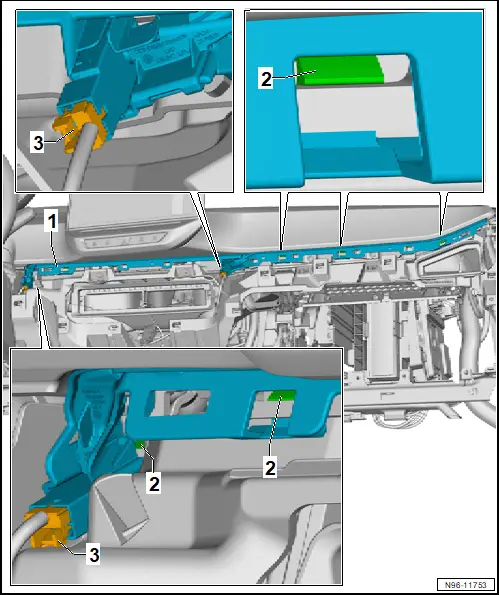

– Disconnect connector -3-.

– Release locking device -2-.

– Remove contour lighting -1-.
