Volkswagen ID.3: Front door, central locking. Central locking

• Overview of fitting locations – central locking system
• Removing and installing door control unit [J386]/[J387]
• Removing and installing actuator for high-voltage charging flap lock [F496]

Overview of fitting locations – central locking system

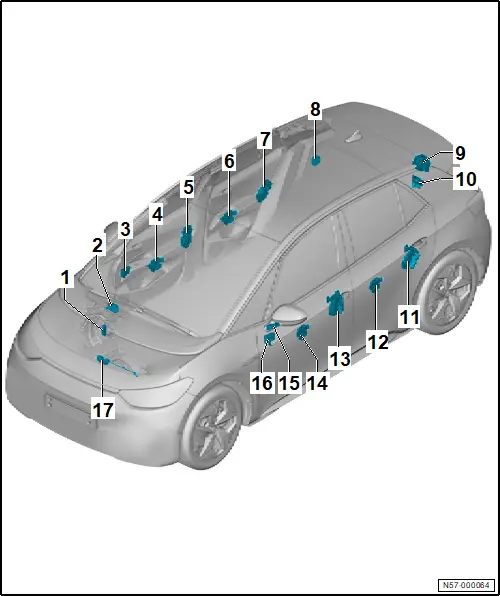

Overview of fitting locations – central locking system

Overview shows left-hand drive vehicle as an example

1 - Alarm horn -H12-

❏ → Electrical system; Rep. gr.96; Anti-theft alarm system; Assembly overview – interior monitoring

❏ → Electrical system; Rep. gr.96; Anti-theft alarm system; Removing and installing alarm horn [H12]

2 - Onboard supply control unit -J519-

❏ → Electrical system; Rep. gr.97; Control units; Assembly overview – onboard supply control unit

❏ → Electrical system; Rep. gr.97; Control units; Removing and installing onboard supply control unit [J519]

3 - Front passenger door control unit -J387-

❏ → Rep. gr.57; Removing and installing door control unit [J386]/[J387]

4 - Front passenger side window regulator motor -V148-

❏ → Rep. gr.57; Assembly overview – subframe

❏ → Rep. gr.57; Removing and installing window regulator motor [V147]/[V148]

5 - Front passenger door lock unit -VX22-

❏ With front passenger door contact switch -F3-

❏ With front passenger side central locking lock unit -F221-

❏ With front passenger door central locking actuator for SAFELOCK function -F244-

❏ With front passenger door central locking motor -V57-

❏ With front passenger door central locking SAFELOCK function motor -V162-

❏ → Rep. gr.57; Assembly overview – door handle and door lock

❏ → Rep. gr.57; Removing and installing lock unit [VX21]/[VX22]

6 - Rear passenger side window regulator motor -V472-

❏ → Rep. gr.58; Assembly overview – subframe

❏ → Rep. gr.58; Removing and installing rear window regulator motor [V471]/[V472]

7 - Rear door lock unit, passenger side -VX84-

❏ → Rep. gr.58; Assembly overview – door handle and door lock

❏ → Rep. gr.58; Removing and installing rear door lock unit [VX83]/[VX84]

8 - Actuator for high-voltage charging flap lock 1 -F496-

❏ → Rep. gr.55; Assembly overview – charging flap unit

❏ → Rep. gr.57; Removing and installing actuator for high-voltage charging flap lock 1 [F496]

9 - Rear lid handle

❏ With reversing camera -R189- depending on equipment/installation period

❏ With rear overhead view camera -R246- depending on equipment/installation period

❏ With rear lid handle release button -E234-

❏ → Rep. gr.55; Assembly overview – rear lid

❏ → Rep. gr.55; Removing and installing rear lid handle

10 - Rear lid lock unit -VX25-

❏ With or without power latching system, depending on equipment/version

❏ → Rep. gr.55; Assembly overview – rear lid

❏ → Rep. gr.55; Removing and installing rear lid lock unit [VX25]

11 - Rear door lock unit, driver side -VX83-

❏ With rear door contact switch, driver side -F505-

❏ With rear driver side central locking lock unit -F435-

❏ With rear central locking actuator, driver side -F509-

❏ With rear central locking motor, driver side -V539-

❏ With rear central locking SAFELOCK function motor, driver side -V537-

❏ → Rep. gr.58; Assembly overview – door handle and door lock

❏ → Rep. gr.58; Removing and installing rear door lock unit [VX83]/[VX84]

12 - Rear driver side window regulator motor -V471-

❏ → Rep. gr.58; Assembly overview – assembly carrier

❏ → Rep. gr.58; Removing and installing rear window regulator motor [V471]/[V472]

13 - Driver door lock unit -VX21-

❏ With driver door contact switch -F2-

❏ With driver side central locking lock unit -F220-

❏ With driver side contact switch in lock cylinder -F241-

❏ With driver door central locking actuator for SAFELOCK function -F243-

❏ With driver door central locking motor -V56-

❏ With driver door central locking SAFELOCK function motor -V161-

❏ → Rep. gr.57; Assembly overview – door handle and door lock

❏ → Rep. gr.57; Removing and installing lock unit [VX21]/[VX22]

14 - Driver side window regulator motor -V147-

❏ → Rep. gr.57; Assembly overview – assembly carrier

❏ → Rep. gr.57; Removing and installing window regulator motor [V147]/[V148]

15 - Driver door control unit -J386-

❏ → Rep. gr.57; Removing and installing door control unit [J386]/[J387]

16 - Window regulator operating unit -EX36-

❏ → Electrical system; Rep. gr.96; Controls; Overview of fitting locations – controls in front doors

❏ → Electrical system ID.3, New; Rep. gr.96; Controls; Removing and installing operating unit for window regulator in driver door [EX36]

17 - Bonnet contact switch -F266-

❏ Only to be renewed together with bonnet lock

❏ → Rep. gr.55; Assembly overview – bonnet

❏ → Rep. gr.55; Removing and installing bonnet lock

Removing and installing door control unit [J386]/[J387]

Removing and installing door control unit [J386]/[J387]

The driver door control unit -J386- and front passenger door control unit -J387- will henceforth be referred to as “door control unit”.

Removal and installation are described for the left side of vehicle as an example.

Removing

If the door control unit is renewed, perform the test plan for the renewal of the control unit:

– Carry out function “Renew control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.

Continued

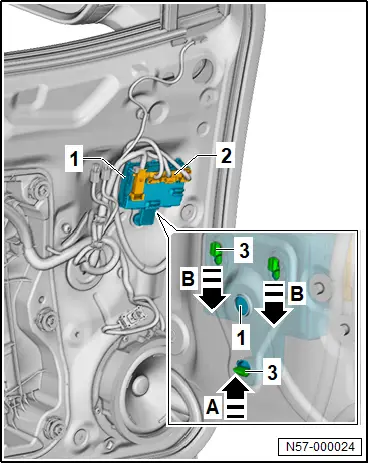

– Remove front door trim → General body repairs interior; Rep. gr.70; Front door trims; Removing and installing front door trim.

– Disconnect electrical connectors -2-.

– Disengage hook -3- in direction of -arrow A-.

– Push door control unit -1- in direction of -arrow B-, and remove it.

Installing

Install in reverse order of removal, observing the following:

If the control unit has been renewed, conclude the test plan for the renewal of the control unit:

– Carry out function “Renew control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.

Removing and installing actuator for high-voltage charging flap lock [F496]

Removing and installing actuator for high-voltage charging flap lock [F496]

Removing

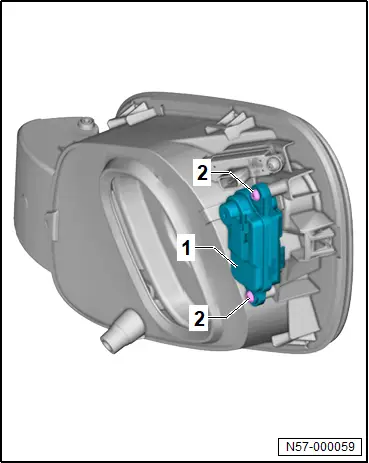

– Remove charging flap unit → Rep. gr.55; Removing and installing charging flap unit.

– Unscrew bolts -2-.

– Remove actuator for high-voltage charging flap lock 1 -F496- -1- from charging flap unit.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.55; Assembly overview – charging flap unit
