Volkswagen ID.3: Lights, lamps, switches outside. Steering column switch module

• Assembly overview – steering column switch module
• Removing and installing steering column electronics control unit [J527]
• Removing and installing immobiliser reader coil [D2]

Assembly overview – steering column switch module

Assembly overview – steering column switch module

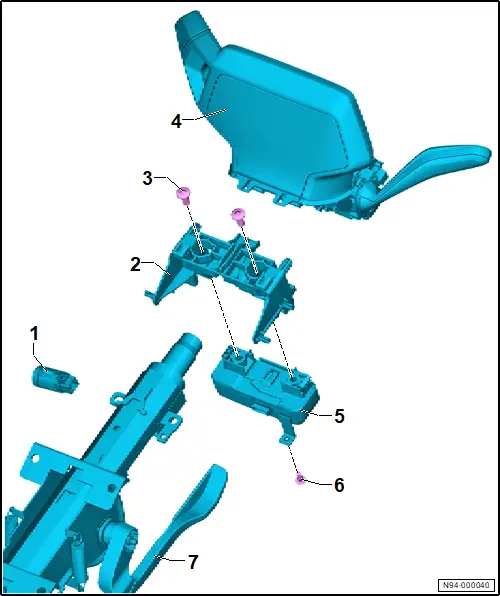

1 - Starter button -E378-

❏ → Chapter „Removing and installing starter button [E378]“

2 - Bracket for dash panel insert

3 - Shear bolt

❏ Qty. 2

4 - Steering column electronics control unit -J527-

❏ With driving mode selector, depending on equipment/version

❏ With wiper switch -E- With intermittent wiper switch -E22- With turn signal switch -E2- With headlight dipper and flasher switch -E4- With electromechanical parking brake button -E538-

❏ With airbag coil connector and return ring with slip ring -F138- With selector lever locked in position P switch -F319-

❏ With selector lever position display -Y6-

❏ Depending on equipment/version, with cruise control system (CCS) switch -E45- With cruise control system (CCS) SET button -E227- With multifunction display call-up button -E86- Wit heated steering wheel -Z36-

❏ → Rep. gr.94; Removing and installing steering column electronics control unit [J527]

5 - Control unit for electronic steering column lock -J764-

❏ → Running gear, axles, steering; Rep. gr.48; Steering column; Removing and installing control unit for electronic steering column lock [J764]

6 - Bolt

❏ 2.5 Nm

7 - Steering column

❏ → Running gear, axles, steering; Rep. gr.48; Steering column; Removing and installing steering column

Removing and installing steering column electronics control unit [J527]

Removing and installing steering column electronics control unit [J527]

Steering column electronics control unit -J527- is referred to hereafter as control unit.

Removing

– Move steering wheel to rearmost and lowest position. Use full range of steering column adjustment for this purpose.

– Remove lower steering column trim → General body repairs, interior; Rep. gr.68; Compartments/covers; Removing and installing lower steering column trim.

– Remove control unit with display unit for driver information system -J1254- → Rep. gr.90; Removing and installing control unit with display unit for driver information system [J1254].

NOTICE

Risk of damage to the electronic components due to electrostatic discharge.

– Discharge any static charge by briefly touching the door striker plate.

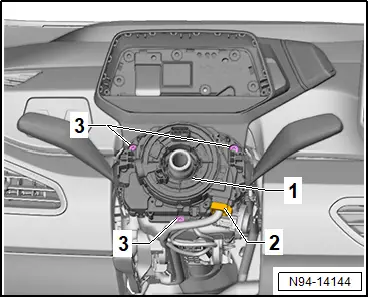

– Disconnect electrical connector -2-.

– Unscrew bolts -3-.

NOTICE

Risk of damage to the return ring.

– When removed, the return ring with slip ring must not be turned.

– Pull off control unit -1-.

Installing

Install in the reverse order of removal, observing the following:

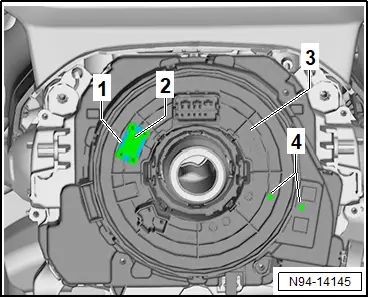

– Before pushing on control unit -3-, ensure the following:

♦ “Arrows” -4- must align.

♦ Coil connector -2- must be visible in window -1-.

Tightening torques

ComponentSpecified torqueBolts for steering column electronics control unit1.3 Nm

Removing and installing immobiliser reader coil [D2]

Removing and installing immobiliser reader coil [D2]

Immobiliser reader coil -D2- is referred to hereafter as reader coil.

Removing

– Remove lower steering column trim → General body repairs, interior; Rep. gr.68; Compartments/covers; Removing and installing lower steering column trim.

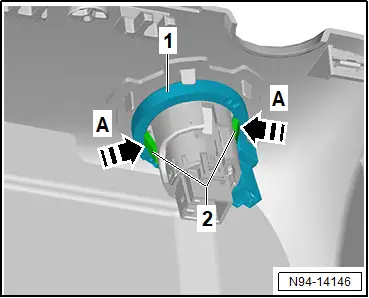

– Release locking devices -2- in direction of -arrow A-.

– Pull out reader coil -1-.

Installing

Install in reverse order of removal.
