Overview of fitting locations – controls in dash panel
Overview of fitting locations – controls in front doors
Overview of fitting locations – controls in rear doors
Overview of fitting locations – controls in luggage compartment
Overview of fitting locations – controls in roof trim
Removing and installing operating unit for lighting [EX59]
Removing and installing centre switch module in dash panel [EX22]
Removing and installing operating unit for window regulator in driver door [EX36]
Removing and installing window regulator switch/door operating unit
Removing and installing operating unit in rear door, driver side/passenger side [EX60]/[EX61]
Removing and installing starter button [E378]

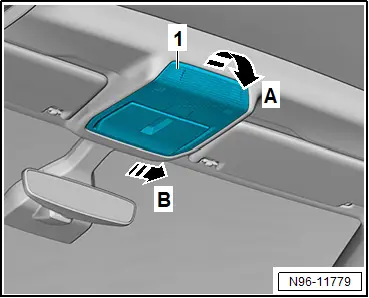

Removing and installing front roof module [WX3]
Removing and installing rear interior light/reading light

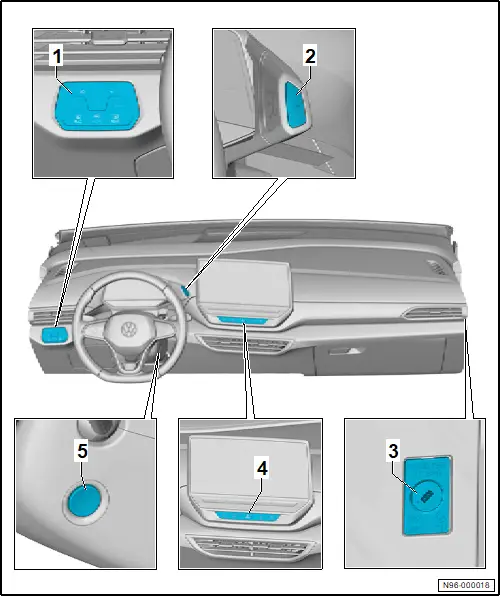

Overview of fitting locations – controls in dash panel

Overview shows left-hand drive vehicle as an example

1 - Operating unit for lighting -EX59-

❏ With light switch -E1-

❏ With switch and instrument illumination regulator -E20-, rear fog light button -E314-, heated rear window button -E230-, button for automatic lighting control -E854-, button for side lights -E855-, button for dipped beam headlights -E856-, defroster button -E782-

❏ With rear fog light warning lamp -K13-, heated rear window warning lamp -K10-

❏ → Rep. gr.96; Removing and installing operating unit for lighting [EX59]

2 - Electromechanical parking brake button -E538-

❏ Depending on equipment/version

❏ With electromechanical parking brake warning lamp -K213-

❏ In steering column electronics control unit -J527-

❏ → Rep. gr.94; Removing and installing steering column electronics control unit [J527]

3 - Key-operated switch to deactivate airbag on front passenger side -E224-

❏ → General body repairs, interior; Rep. gr.69; Front passenger airbag; Removing and installing key-operated switch to deactivate airbag on front passenger side

4 - Centre switch module in dash panel -EX22-

❏ With operating unit 1 for driver and convenience functions -E791-

❏ With hazard warning lights button -E229-

❏ With button for driver assist systems -E617-

❏ With driving mode selection button -E735-

❏ With air conditioning system and heating button -E85-

❏ → Rep. gr.96; Removing and installing centre switch module in dash panel [EX22]

5 - Starter button -E378-

❏ → Rep. gr.96; Removing and installing starter button [E378]

Overview of fitting locations – controls in front doors

The overview shows a left-hand drive vehicle as an example.

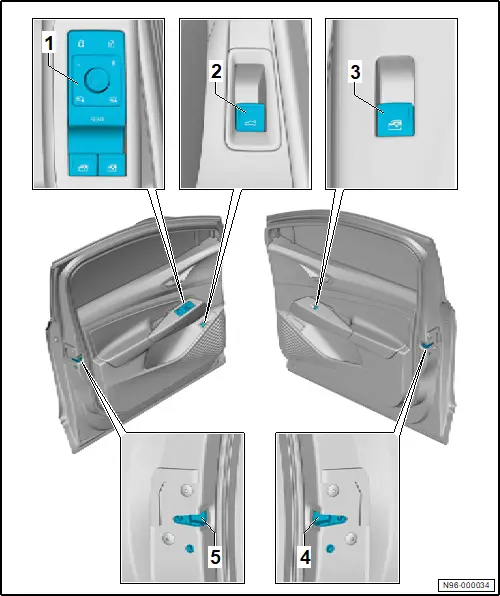

1 - Operating unit for window regulator in driver door -EX36-

❏ With childproof lock button -E318-, operating unit for window regulator in driver door -E512-, front driver side window regulator button -E710-, rear driver side window regulator button, in driver door -E712-, rear passenger side window regulator button, in driver door -E714-, front driver side window regulator button, in the driver door -E715-

❏ With driver side interior locking button for central locking system -E308-, mirror adjustment switch -E43-, rear window regulator isolation switch -E39-, mirror adjustment changeover switch -E48-

❏ With rear window regulator lock warning lamp -K194-, driver side interior locking warning lamp -K174-

❏ → Rep. gr.96; Removing and installing operating unit for window regulator in driver door [EX36]

2 - Rear lid remote release button -E233-

❏ Depending on model

❏ → Electrical system; Rep. gr.96; Controls; Removing and installing rear lid remote release button [E233]

3 - Window regulator switch in front passenger door -EX27-

❏ With front passenger side window regulator button -E716-

❏ → Rep. gr.96; Removing and installing window regulator switch/door operating unit

4 - Front passenger door lock unit -VX22-

❏ With front passenger door contact switch -F3-

❏ → General body repairs, exterior; Rep. gr.57; Door components; Removing and installing door lock

5 - Driver door lock unit -VX21-

❏ With driver door contact switch -F2-

❏ → General body repairs, exterior; Rep. gr.57; Door components; Removing and installing door lock

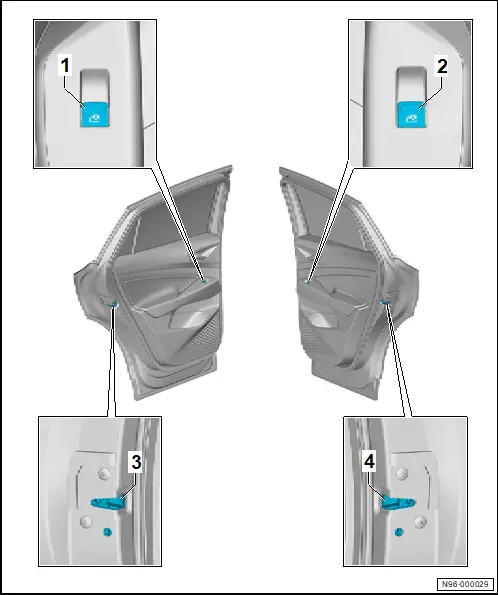

Overview of fitting locations – controls in rear doors

Overview shows a left-hand drive vehicle as an example

1 - Operating unit in rear door, driver side -EX61-

❏ With rear driver side window regulator button -E711-

❏ With button illumination bulb -L76-

❏ → Rep. gr.96; Removing and installing window regulator switch/door operating unit

2 - Operating unit in rear door, passenger side -EX60-

❏ With rear driver side window regulator button -E713-

❏ With button illumination bulb -L76-

❏ → Rep. gr.96; Removing and installing window regulator switch/door operating unit

3 - Rear door lock unit, driver side -VX83-

❏ Right-hand drive vehicles: rear door lock unit, passenger side -VX84-

❏ With rear door contact switch, driver side -F505-

❏ → General body repairs, exterior; Rep. gr.58; Door components; Removing and installing door lock

4 - Rear door lock unit, passenger side -VX84-

❏ Right-hand drive vehicles: rear door lock unit, driver side -VX83-

❏ With rear door contact switch, passenger side -F506-

❏ → General body repairs, exterior; Rep. gr.58; Door components; Removing and installing door lock

Overview of fitting locations – controls in luggage compartment

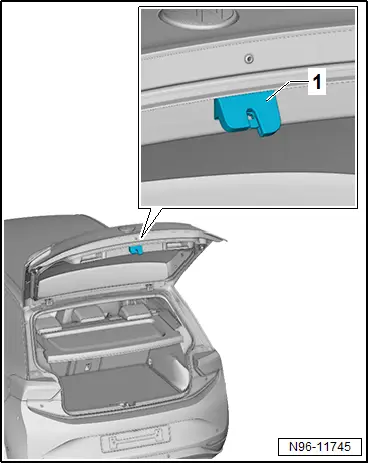

1 - Rear lid lock unit -VX25-

❏ With rear lid contact switch -F111-

❏ → General body repairs, exterior; Rep. gr.55; Rear lid; Removing and installing rear lid lock unit [VX25]

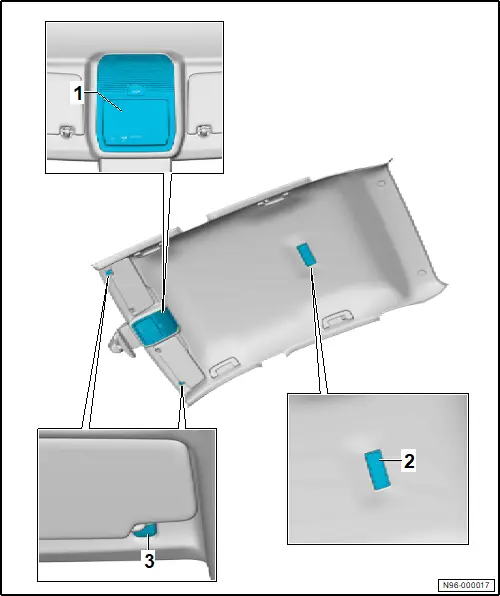

Overview of fitting locations – controls in roof trim

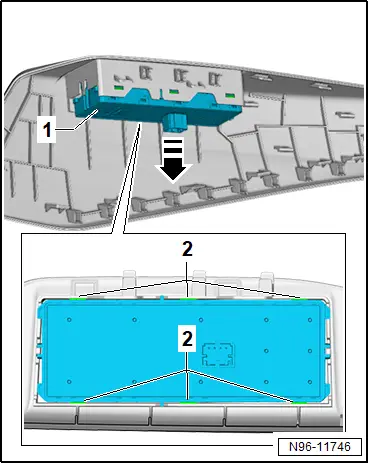

1 - Front roof module -WX3-

❏ With button 1 for roof roller blind -E584- and roof electronics control unit -J528-

❏ With front left reading light -W65-, front right reading light -W66-

❏ With emergency assistance call button -E276-, Front passenger airbag deactivated warning lamp -K145-

❏ With front interior light button -E326-, rear interior light button -E327-

❏ With front left reading light button -E633-, front right reading light button -E634-

❏ Depending on equipment/version, can only be renewed along with front roof module -WX3-

❏ → Rep. gr.96; Removing and installing front roof module [WX3]

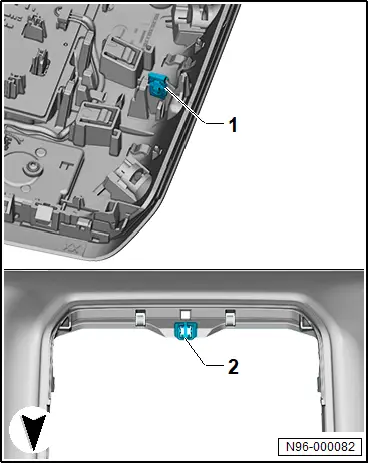

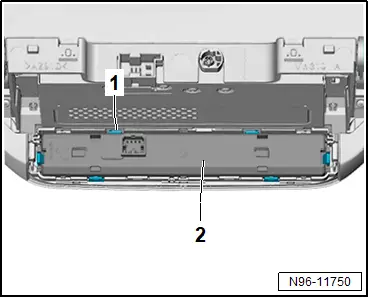

2 - Rear interior light -WX2-

❏ Depending on equipment/version

❏ With rear left reading light -W11-

❏ With rear right reading light -W12-

❏ With rear left reading light button -E454-

❏ With rear right reading light button -E455-

❏ Can only be renewed together with rear interior light -WX2-

❏ → Rep. gr.96; Removing and installing rear interior light/reading light

3 - Sun visors

❏ With rear left vanity mirror contact switch -F298-/rear right vanity mirror contact switch -F299-

❏ → General body repairs, interior; Rep. gr.68; Equipment; Removing and installing sun visor

Removing and installing operating unit for lighting [EX59]

Special tools and workshop equipment required

♦ hook -T10538-

Operating unit for lighting -EX59- will henceforth be referred to as “operating unit”.

The removal procedure is shown for a left-hand drive vehicle as an example.

Important

● Operating unit cannot be removed without being destroyed.

Removing

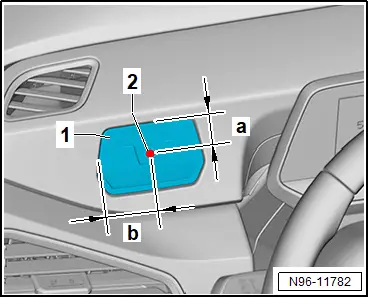

– Make a mark -2- in centre of operating unit -1- according to dimension -a- and -b-.

♦ a = 26 mm

♦ b = 42 mm

CAUTION

Risk of hands and eyes being injured by glass splinters.

When removing damaged components, glass splinters may enter eyes and flesh wounds may occur.

– Wear safety goggles.

– Wear protective gloves.

NOTICE

Danger of damage to components.

– Protect dash panel and dash panel vent from swarf.

NOTICE

Risk of air duct being damaged.

– Mark 30 mm for plunge depth of drill bit.

– Using a commercially available 8 mm drill bit, drill 30 mm into operating unit -1- at marking -2-.

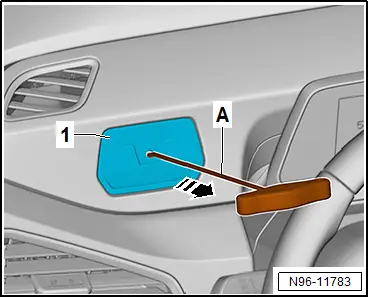

– Guide hook -T10538- -A- through hole.

– Engage hook -A- in operating unit -1-.

– Pull out operating unit -1- in direction of -arrow-.

– Disconnect electrical connector.

– Detach operating unit -1-.

Installing

Install in reverse order of removal, observing the following:

Important

● Operating unit must engage audibly.

● Perform functional check.

Removing and installing centre switch module in dash panel [EX22]

Centre switch module in dash panel -EX22- is referred to hereafter as switch module.

Removing

– Remove control unit for front display and information control panel -J685- → Communication; Rep. gr.91; Components/control units; Removing and installing control unit for front display and information control panel [J685].

– Release locking devices -1-.

– Remove switch module -2-.

Installing

Install in the reverse order of removal, observing the following:

Important

● Switch module must be heard to engage.

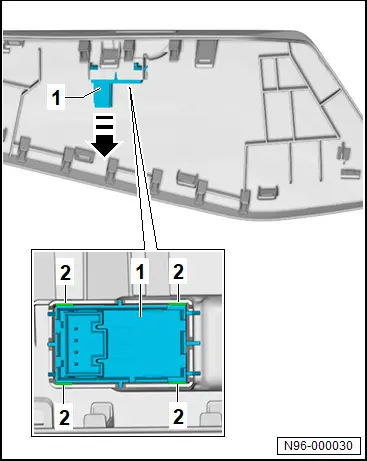

Removing and installing operating unit for window regulator in driver door [EX36]

Operating unit for window regulator in driver door -EX36- is referred to hereafter as operating unit.

Removal and installation are described for a left-hand drive vehicle as an example.

Removing

– Remove trim for button → Rep. gr.70; Front door trims; Removing and installing trim for button.

– Release locking devices -2-.

– Remove operating unit -1- in direction of -arrow-.

Installing

Install in reverse order of removal.

Removing and installing window regulator switch/door operating unit

Window regulator switch in front passenger door -EX27- and operating unit in rear door, driver side -EX61-/operating unit in rear door, passenger side -EX60- are referred to hereafter as button.

Removal and installation are described for a left-hand drive vehicle as an example.

Removing

Front door

– Remove trim for button → Rep. gr.70; Front door trims; Removing and installing trim for button.

All vehicles (continued)

Rear door

– Remove trim for button → General body repairs, interior; Rep. gr.70; Rear door trims; Removing and installing trim for button.

All vehicles (continued)

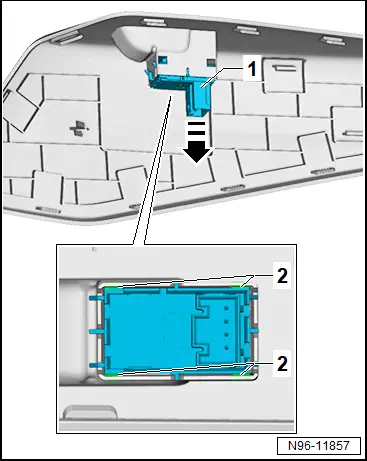

– Release fasteners -2-.

– Remove button -1- in direction of -arrow-.

Installing

Install in reverse order of removal.

Removing and installing operating unit in rear door, driver side/passenger side [EX60]/[EX61]

Operating unit in rear door, driver side -EX61-/operating unit in rear door, passenger side -EX60- will henceforth be referred to as “operating unit”.

Removal and installation are described for the left vehicle side as an example.

Removing

– Remove trim for button → General body repairs, interior; Rep. gr.70; Rear door trims; Removing and installing trim for button.

– Release fasteners -2-.

– Remove operating unit -1- in direction of -arrow-.

Installing

Install in the reverse order of removal, observing the following:

Important

● Operating unit must engage audibly.

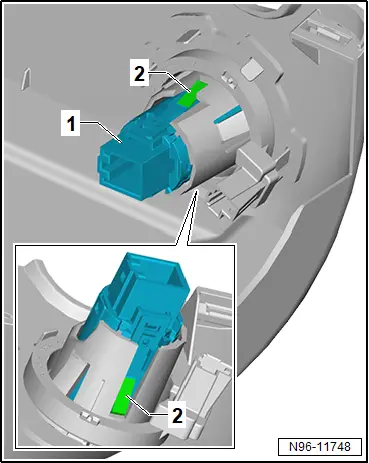

Removing and installing starter button [E378]

Starter button -E378- is referred to hereafter as button.

Removing

– Remove lower steering column trim → General body repairs, interior; Rep. gr.68; Compartments/covers; Removing and installing lower steering column trim.

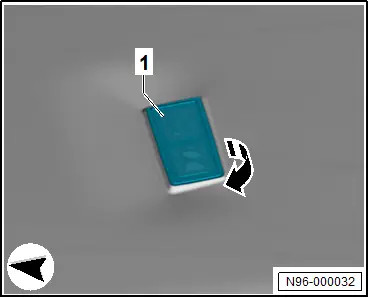

– Press together retaining clips -2-.

– Remove button -1-.
