Volkswagen ID.3: Lights, lamps, switches outside. Tail lights

• Removing and installing tail light cluster [MX3]/[MX4]
• Removing and installing rear fog light [X3]
• Removing and installing tail light cluster on rear lid

Removing and installing tail light cluster [MX3]/[MX4]

Removing and installing tail light cluster [MX3]/[MX4]

Left tail light cluster -MX3- and right tail light cluster -MX4- will henceforth be referred to as “tail light cluster”.

Removal and installation are described for the left vehicle side as an example.

Removing

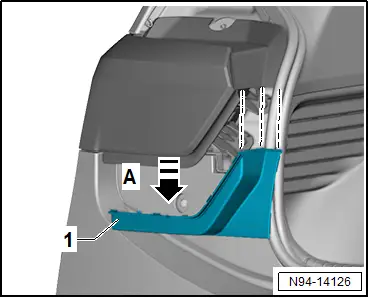

– Unclip lower tail light cluster trim -1- in direction of -arrow A- using commercially available removal wedge.

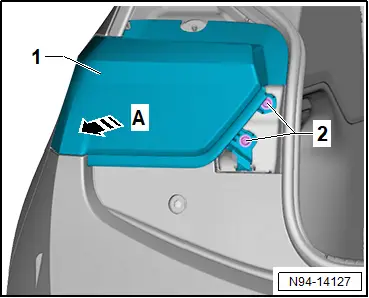

– Unscrew bolts -2-.

– Remove tail light cluster -1- in direction of -arrow A-.

– Disconnect electrical connector.

– Remove tail light cluster -1-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

StageComponentSpecified torque1-1- and -2-Screw in by hand2-1- and -2-3 Nm

Removing and installing rear fog light [X3]

Removing and installing rear fog light [X3]

The rear fog light -X3- will henceforth be referred to as “rear fog light”.

Removal and installation are described for the left vehicle side as an example.

Removing

– Remove rear wheel housing liner → General body repairs, exterior; Rep. gr.66; Wheel housing liner; Removing and installing rear wheel housing liner.

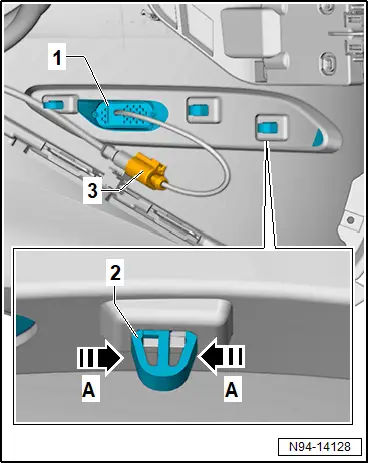

– Disconnect electrical connector -3-.

– Release retaining clips -2- in direction of -arrow A-.

– Remove rear fog light -1-.

Installing

Install in reverse order of removal, observing the following:

– The rear fog light must engage audibly.

Removing and installing tail light cluster on rear lid

Removing and installing tail light cluster on rear lid

Removal and installation are described for the left side of vehicle as an example.

Removing

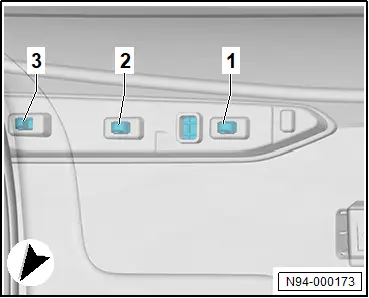

– Tail light cluster is secured with 3 locking devices -1-, -2- and -3-.

Note

Only the locking devices -3- and -2- can be released manually. The locking device -1- releases automatically.

– Remove lower rear lid trim → General body repairs, interior; Rep. gr.70; Luggage compartment trims; Removing and installing lower rear lid trim.

Vehicles without left tail light cluster 2 -MX5-/right tail light cluster -MX4- depending Vehicles

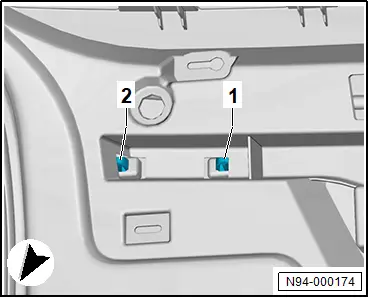

– Press together locking devices -2- and -1- using a commercially available long-nose pliers.

Note

The tail light cluster is under tension due to the gasket. Hold the tail light cluster securely.

– Remove tail light cluster.

All vehicles (continued)

Vehicles with left tail light cluster 2 -MX5-/right tail light cluster -MX4-

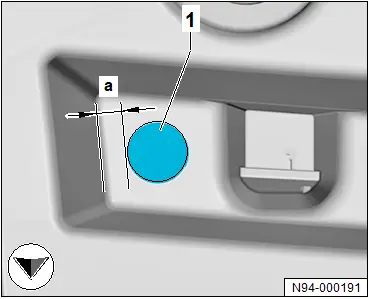

– Drill hole -1- using commercially available drill bit.

Important

● Diameter -1- = 12 mm

● Dimension a = 6 mm

– Using a screwdriver, carefully release locking devices -2- and -1-.

Note

The tail light cluster is under tension due to the gasket. Hold the tail light cluster securely.

– Remove tail light cluster.

– Disconnect electrical connector.

All vehicles (continued)

Installing

Install in reverse order of removal.
