Volkswagen ID.3: Lights, lamps, switches outside. Lights in exterior mirror

• Removing and installing turn signal repeater bulb [L131]/[L132]
• Removing and installing entry light in exterior mirror [W52]/[W53]

Removing and installing turn signal repeater bulb [L131]/[L132]

Removing and installing turn signal repeater bulb [L131]/[L132]

Driver side exterior mirror turn signal bulb -L131- and front passenger side exterior mirror turn signal bulb -L132- will henceforth be referred to as “turn signal in exterior mirror”.

Removal and installation are described for the left side of vehicle as an example.

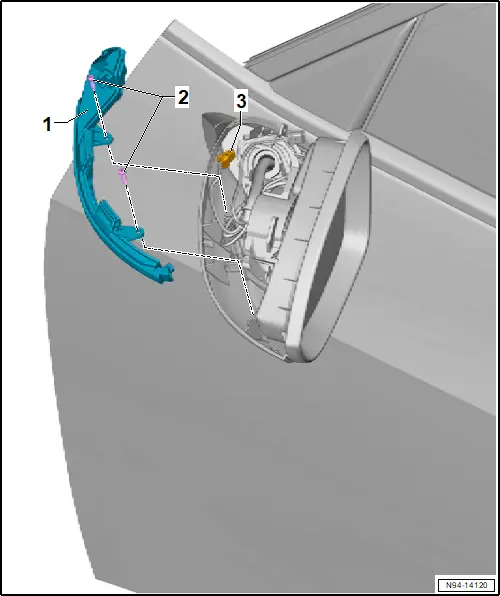

Removing

– Remove upper mirror cover → General body repairs, exterior; Rep. gr.66; Exterior mirrors; Removing and installing upper mirror cover.

– Disconnect electrical connector -3-.

– Unscrew bolts -2-.

– Remove turn signal -1-.

Installing

Install in the reverse order of removal, observing the following:

Tightening torques

♦ → General body repairs, exterior; Rep. gr.66; Exterior mirror; Assembly overview - exterior mirror

Removing and installing entry light in exterior mirror [W52]/[W53]

Removing and installing entry light in exterior mirror [W52]/[W53]

Entry light in exterior mirror, driver side -W52- and entry light in exterior mirror, passenger side -W53- will henceforth be referred to as “entry light”.

Removal and installation are described for the left vehicle side as an example.

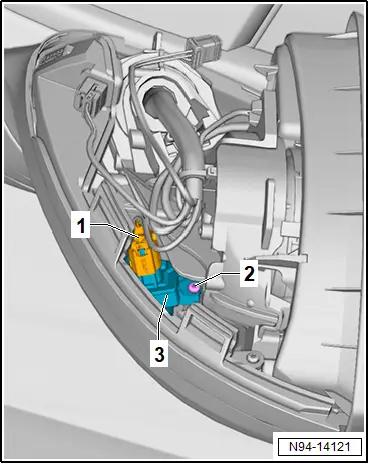

Removing

– Remove turn signal → Rep. gr.94; Removing and installing exterior mirror turn signal bulb [L131]/[L132].

– Unscrew bolt -2-.

– Guide out entry light -3-.

– Disconnect electrical connector -1-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → General body repairs, exterior; Rep. gr.66; Exterior mirror; Assembly overview - exterior mirror
