Volkswagen ID.3: Driver assist systems. Reversing camera system

• Calibrating reversing camera R189

Calibrating reversing camera R189

Calibrating reversing camera R189

Special tools and workshop equipment required

♦ Calibration unit -VAS 6350A-

♦ Linear laser -VAS 6350/3A-

♦ Spacing laser -VAS 6350/2A-

♦ Wheel bolt adapters -VAS 6350/1-3A-

♦ Wheel bolt adapters -VAS 6350/1-4A-

♦ Wheel centre mounting -VAS 6350/1A-

Reversing camera -R189- is called camera in this document.

Preparation

Important

● Observe → Rep. gr.98; Necessity of calibration.

● There must be no entries in the event memory that would hinder calibration.

– Check camera image on display unit for front information display and operating unit control unit -J685-.

– Read and clear event memory using → Vehicle diagnostic tester.

– Verify pitch circle of rear wheel rims, and prepare wheel centre mounting -VAS 6350/1A- accordingly.

Vehicles with 17 mm wheel bolts

– Secure wheel centre mounting -VAS 6350/1A- with wheel bolt adapter -VAS 6350/1-3A-.

All vehicles (continued)

Vehicles with 19 mm wheel bolts

– Secure wheel centre mounting -VAS 6350/1A- with wheel bolt adapter -VAS 6350/1-4A-.

All vehicles (continued)

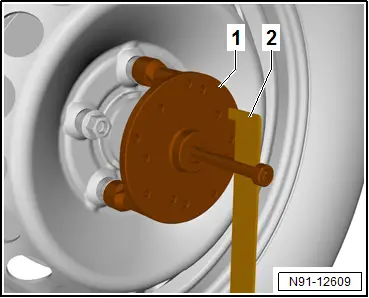

– Fit paddle -2- from calibration unit -VAS 6350A- to wheel centre mounting -VAS 6350/1A--1-, and secure it using clamping bolt.

– Fit wheel centre mounting -VAS 6350/1A- to wheel bolts of rear wheels.

Important

● Fit wheel centre mounting -VAS 6350/1A- in such a way that the anti-theft wheel bolts do not make contact with wheel centre mounting -VAS 6350/1A-.

– Adjust paddle -2-.

Important

● Paddles -2- must free to move smoothly just above the ground.

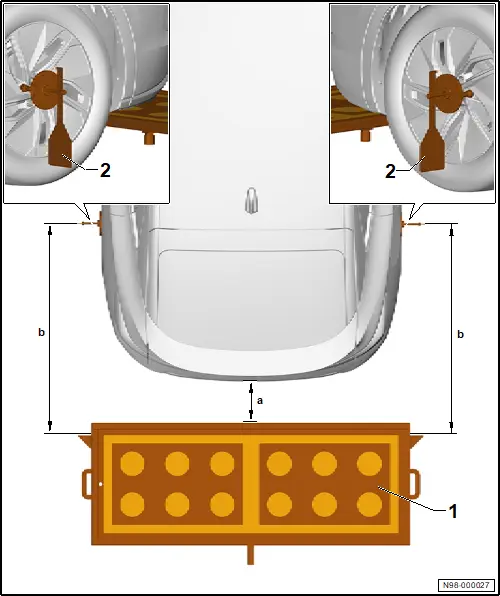

– Position calibration field -1- from calibration unit -VAS 6350A- at distance -a- behind vehicle.

Important

● Dimension -a- = 400 mm - 1000 mm

– Align calibration panel -1- parallel to paddles -2-.

Important

● Distance -b- must be the same on both sides.

Note

Make a note of dimension -b- for the subsequent calibration procedure.

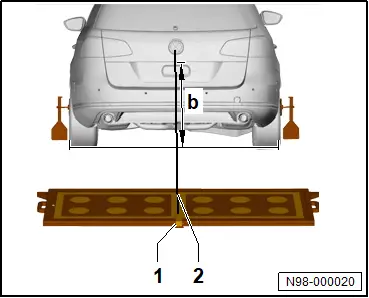

– Switch on linear laser -VAS 6350/3A- -1-.

– Align calibration field in such a way that laser beam -2- is centred on rear badge.

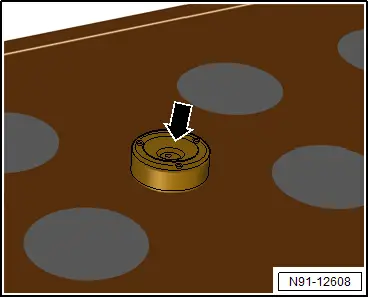

– Turn plastic feet under calibration field until spirit level -arrow- is centred.

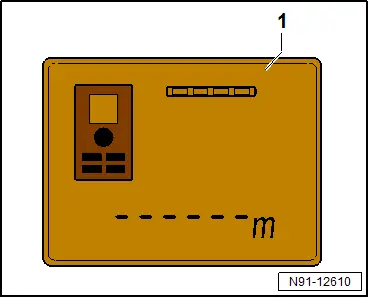

– Switch on spacing laser -VAS 6350/2A-, and hold it as shown on display -1-.

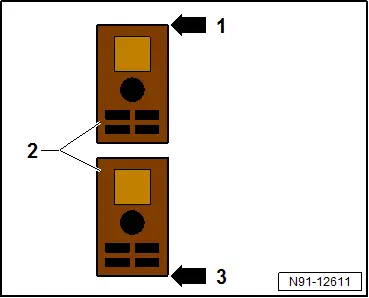

– Press corresponding button of spacing laser -VAS 6350/2A--2-:

♦ -Arrow 1-: Fit with front edge

♦ -Arrow 3-: Fit with rear edge

– Fit spacing laser -VAS 6350/2A--2- with rear edge -arrow 3- and press corresponding button.

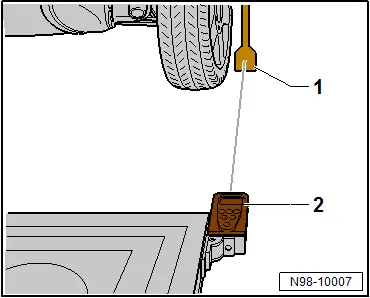

– Position spacing laser -VAS 6350/2A--2- flush in bracket on calibration field, and hold it in place.

– Press measurement button.

Important

● Laser beam from spacing laser -VAS 6350/2A--2- must hit paddle -1-.

● If laser beam is not centred on paddle -1-, adjust paddle -1- again.

– Note reading.

– Repeat procedure on other side of the vehicle.

Important

● Determined values must be the same on both sides.

● If the values differ, align calibration unit -VAS 6350A- again, until the values are the same.

– Switch on spacing laser -VAS 6350/2A-, and hold it as shown on display -1-.

– Press corresponding button of spacing laser -VAS 6350/2A--2-:

♦ -Arrow 1-: Fit with front edge

♦ -Arrow 3-: Fit with rear edge

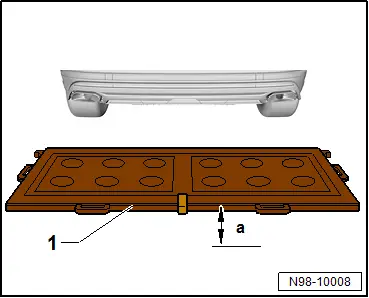

– Measure and record dimension -a- using a commercially available folding meter.

– Measure and record dimension -b- using a commercially available folding meter.

– Enter dimensions -a- and -b- in “mm” in → Vehicle diagnostic tester.

– Proceed as prompted by → Vehicle diagnostic tester.
