Volkswagen ID.3: Driver assist systems. Overhead view camera

• Calibrating overhead view camera system

Calibrating overhead view camera system

Calibrating overhead view camera system

Special tools and workshop equipment required

♦ Calibration system -VAS 721 001-

Preparation

Important

● Observe → Rep. gr.98; Necessity of calibration.

● There must be no entries in the event memory that would hinder calibration.

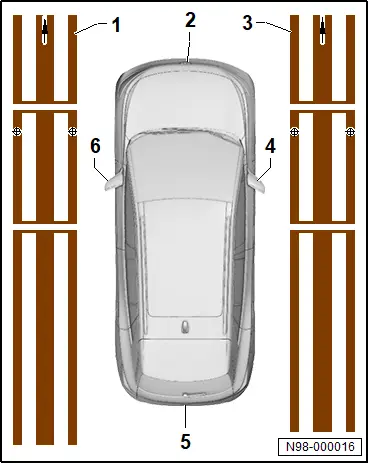

Overview of assembled calibration unit -VAS 721 001-

1 - Left calibration panel from calibration system -VAS 721 001-

2 - Front overhead view camera -R243-

3 - Right calibration panel from calibration system -VAS 721 001-

4 - Right overhead view camera -R245-

5 - Rear overhead view camera -R246-

6 - Left overhead view camera -R244-

– Check camera images on display unit.

– Check cameras, holders and fasteners for damage, manipulation and secure fit.

– Read and clear event memory using → Vehicle diagnostic tester.

– Roll out calibration fields on left and right next to vehicle.

Important

● Arrows -1- must point in direction of travel.

– Install end strips to front and rear of calibration fields.

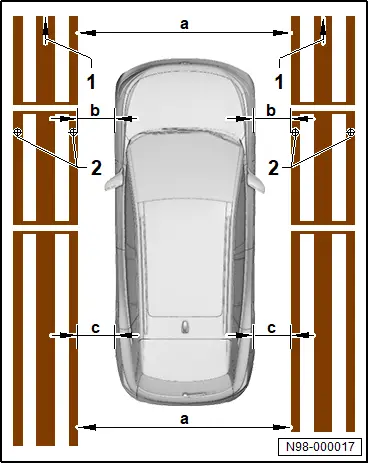

– Align calibration fields on left and right next to vehicle.

Important

● Crosshair -2- must be centred to the front wheel on both sides of the vehicle.

● Dimension -a- = 2000 mm - 2500 mm ±5 mm must be the same at front and rear.

● Dimension -b- must be the same on both sides.

● Dimension -c- must be the same on both sides.

Calibrating

Important

● → Vehicle diagnostic tester connected.

– Carry out function “Calibrate overhead view camera system” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.
