Volkswagen ID.3: Brake, brake mechanics. Parking brake

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Running gear / Brake system / Brake, brake mechanics. Parking brake

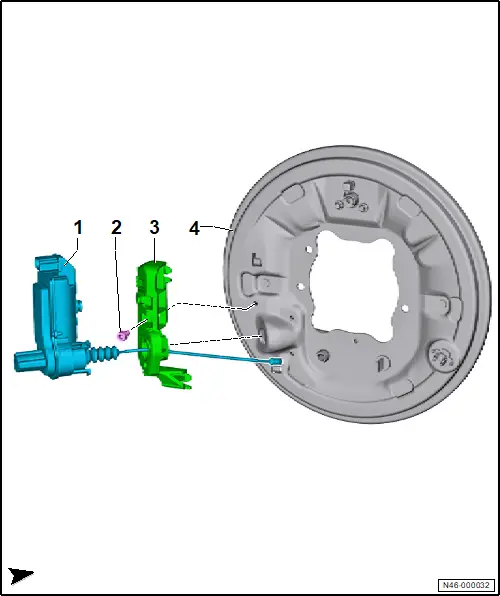

Assembly overview - parking brake

Overview is shown for left side of vehicle as an example

1 - Left parking brake motor -V282-/right parking brake motor -V283-

❏ → Rep. gr.46; Removing and installing parking brake motor [V282]/[V283]

2 - Bolt

❏ 8 Nm

3 - Bracket

4 - Brake carrier

Control unit for electromechanical parking brake -J540- is integrated in ABS control unit -J104-.

– Separating and connecting ABS control unit -J104- → Rep. gr.45; Separating and connecting control unit on hydraulic unit

Removing

Left parking brake motor -V282- and right parking brake motor -V283- are referred to hereafter as parking brake motor.

Removal and installation are described for the left side of vehicle as an example.

Important

● Switch off ignition for at least 30 seconds before disconnecting electrical connector.

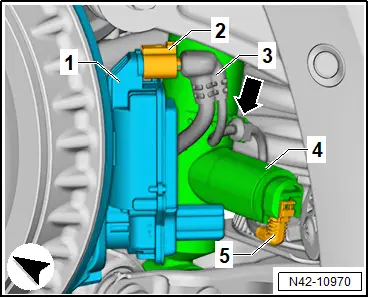

– Disconnect electrical connector -2- on parking brake motor -1-.

– Remove brake shoes, and unhook parking brake cable from brake shoe → Rep. gr.46; Removing and installing brake shoes.

– Press down locking lug in bracket, and turn parking brake motor out of bracket.

Installing

Install in reverse order of removal, observing the following:

– Carry out function “Basic setting brake system” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.

Tightening torques

♦ → Rep. gr.46; Assembly overview – rear brake, drum brake

♦ → Rep. gr.46; Assembly overview – brake shoes
