Assembly overview – brake pedal, left-hand drive vehicles

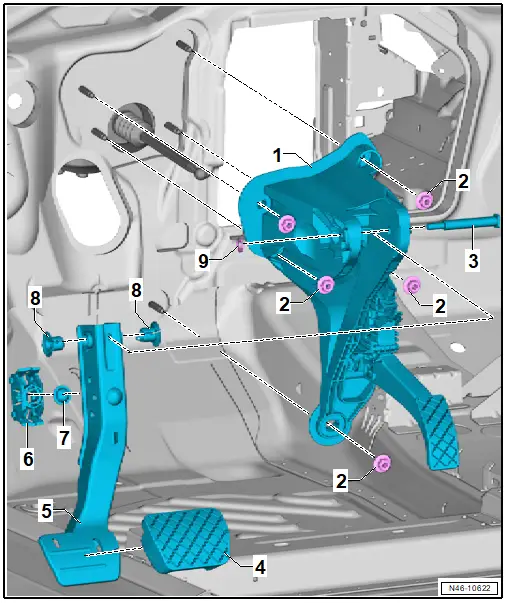

1 - Mounting bracket
❏ → Rep. gr.46; Removing and installing mounting bracket
2 - Nut
❏ Qty. 5
❏ Renew after removing
❏ 20 Nm
3 - Pivot pin
❏ Renew after removing
4 - Cap
5 - Brake pedal
❏ → Rep. gr.46; Separating brake pedal from and joining to brake servo
❏ → Chapter „Removing and installing brake pedal, left-hand drive vehicles“
6 - Support
❏ For ball head of brake servo push rod
7 - Bearing shell
8 - Bearing bush
9 - Clamping washer
❏ Renew after removing

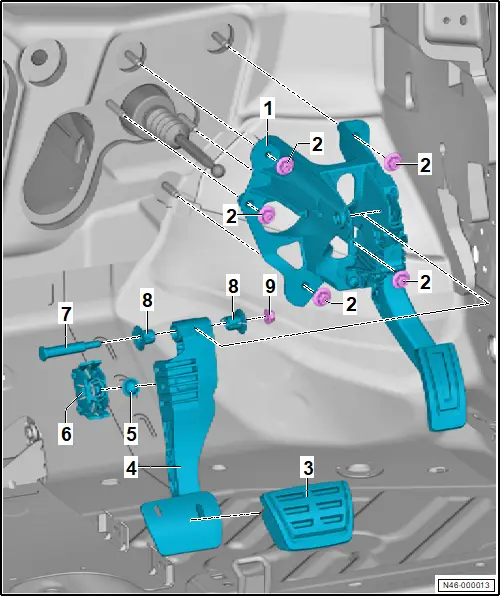

Assembly overview – brake pedal, right-hand drive vehicles
1 - Mounting bracket
❏ → Rep. gr.46; Removing and installing mounting bracket
2 - Nut
❏ Qty. 5
❏ Renew after removing
❏ 20 Nm
3 - Cap
4 - Brake pedal
❏ → Rep. gr.46; Separating brake pedal from and joining to brake servo
❏ → Chapter „Removing and installing brake pedal, left-hand drive vehicles“
5 - Bearing shell
6 - Support
❏ For ball head of brake servo push rod
7 - Pivot pin
❏ Renew after removing
8 - Bearing bush
9 - Nut
❏ Renew after removing
❏ 20 Nm
Separating brake pedal from brake servo
Special tools and workshop equipment required
♦ Release tool -T10006A-
Removing
– For reasons of clarity, the pedal cluster is not shown in the illustrations of the following work procedures.

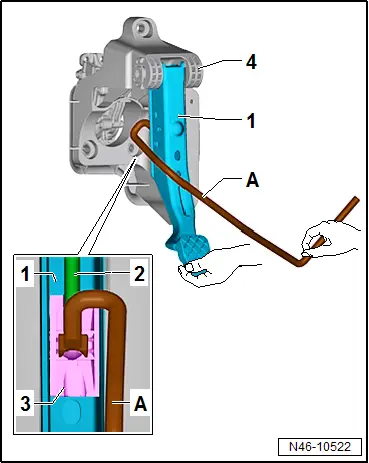

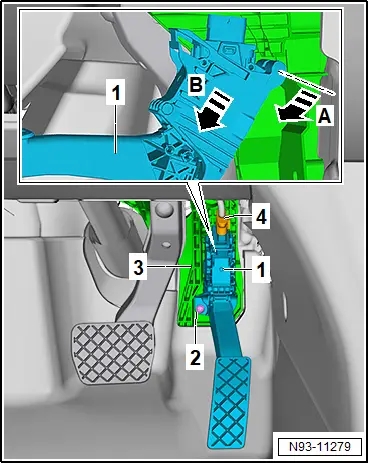

– First press brake pedal -1- in direction of brake servo, and hold it in this position.
1 - Brake pedal
2 - Push bar
3 - Retaining lugs
4 - Mounting bracket
A - Release tool -T10006A-
– Insert release tool -T10006A- -A- , and pull it in direction of front seat. When doing this, counterhold on brake pedal -1- . At this stage, pedal must not be allowed to move towards front seat. This action will press retaining lugs -3- of mounting off ball head of plunger rod -2- .
– Pull release tool -T10006A- -A- and brake pedal -1- together towards front seat. When doing this, brake pedal -1- is pulled off ball head of push rod -2- .
Connecting brake pedal to brake servo
– Hold ball head of push rod -2- in front of mounting -1-, and push brake pedal in direction of -arrow- towards brake servo. The ball head of the push rod must be heard to engage.
– Check engagement by pulling briefly on brake pedal.
Removing and installing brake pedal, left-hand drive vehicles
Removing
– Remove lower steering column trim → General body repairs, interior; Rep. gr.68; Compartments/covers; Removing and installing lower steering column trim.
– Remove footwell vent on driver side → Heating, air conditioning system; Rep. gr.87; Air duct; Removing and installing footwell vent on driver side.
– Remove crash bar → General body repairs, interior; Rep. gr.70; Dash panel cross member; Removing and installing crash bar.
– → Rep. gr.46; Separating brake pedal from and joining to brake servo.

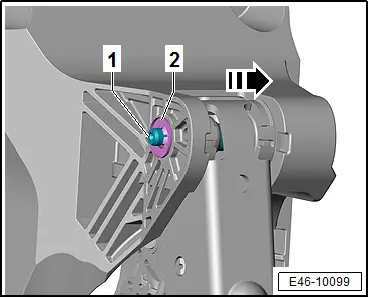

– Pull clamping washer -2- off pivot pin -1-.
– Pull out pivot pin -1- in direction of -arrow-.
– Remove brake pedal from mounting bracket.
Installing
– Do not lubricate or grease the pivot pin.
Important
● The pivot pin must remain dry.
– Slide pivot pin from right to left through mounting bracket and brake pedal.
– Fit clamping washer onto pivot pin.
– Continue installation in reverse order of removal.
Removing and installing brake pedal, right-hand drive vehicles
Removing
– → Rep. gr.46; Separating brake pedal from and joining to brake servo.

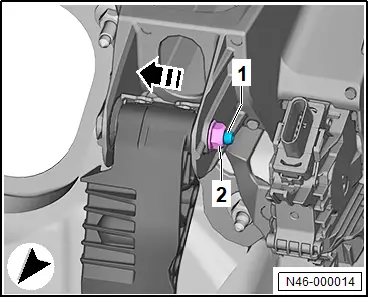

– Unscrew nut -2- from pivot pin -1-.
– Pull out pivot pin -1- in direction of -arrow-.
– Remove brake pedal from mounting bracket.
Installing
– Do not lubricate or grease the pivot pin.
Important
● The pivot pin must remain dry.
– Push pivot pin from left side to right side through mounting bracket and brake pedal.
– Screw nut onto pivot pin, and tighten it.
– Continue installation in reverse order of removal.
Tightening torques
♦ → Rep. gr.46; Assembly overview – brake pedal
Removing and installing mounting bracket, left-hand drive vehicles
Installing
– Remove footwell vent on driver side → Heating, air conditioning system; Rep. gr.87; Air duct; Removing and installing footwell vent on driver side.
– Remove crash bar → General body repairs, interior; Rep. gr.70; Dash panel cross member; Removing and installing crash bar.
– Remove centre console → General body repairs, interior; Rep. gr.68; Centre console; Removing and installing centre console.
– Remove tunnel support cover → General body repairs, interior; Rep. gr.70; Dash panel; Removing and installing tunnel support cover.
– Remove front sill panel moulding → General body repairs, interior; Rep. gr.70; Trims, interior; Removing and installing front sill panel moulding.
– Remove lower A-pillar trim → General body repairs, interior; Rep. gr.70; Trims, interior; Removing and installing lower A-pillar trim.
– → Rep. gr.46; Separating brake pedal from and joining to brake servo.
– Separate electrical connector -4- from accelerator pedal module -GX2- -1-.

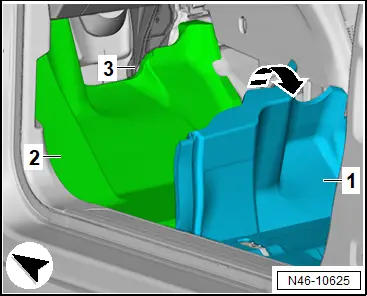

– Pull floor covering -1- as far as possible towards rear.
– Remove filler -2-, expose nut -3- on mounting bracket.

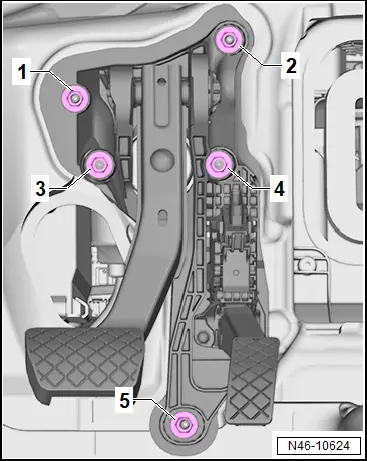

– Unscrew nuts -1- to -5-.
– Remove mounting bracket.
If mounting bracket is to be renewed:
– Separate accelerator pedal module -GX2- from mounting bracket → Electric rear-wheel drive EIP220 and all-wheel drive EIA200, EIP220; Rep. gr.93; Accelerator mechanism; Removing and installing accelerator pedal module [GX2].
All vehicles (continued)
Installing
Install in reverse order of removal, observing the following:
– Tighten nuts in the sequence -1- to -5-.
– → Rep. gr.46; Separating brake pedal from and joining to brake servo.
Tightening torques
♦ → Rep. gr.46; Assembly overview – brake pedal
♦ Text
Removing and installing mounting bracket, right-hand drive vehicles
Removing
– → Heater, air conditioning; Rep. gr.87; Air duct; Removing and installing footwell vent on driver side
– → General body repairs, interior; Rep. gr.70; Central tube for dash panel; Removing and installing crash bar
– Disconnect electrical connector from accelerator pedal module -GX2-.
– → Rep. gr.46; Removing and installing brake pedal, right-hand drive vehicles

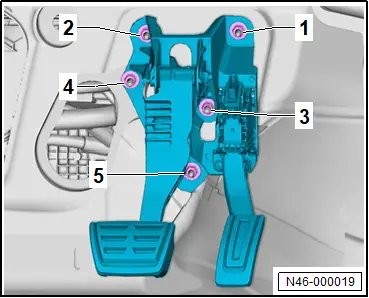

– Unscrew nuts -1- to -5-.
– Remove mounting bracket.
If mounting bracket is to be renewed:
– Separate accelerator pedal module -GX2- from mounting bracket → Electric rear-wheel drive EIP220 and all-wheel drive EIA200, EIP220; Rep. gr.93; Accelerator mechanism; Removing and installing accelerator pedal module [GX2].
All vehicles (continued)
Installing
Install in reverse order of removal, observing the following:
– Tighten nuts in the sequence -1- to -5-.
– → Rep. gr.46; Separating brake pedal from and joining to brake servo.
Tightening torques
♦ → Rep. gr.46; Assembly overview – brake pedal
