Volkswagen ID.3: Electric drive. Warning stickers

• Checking warning stickers

Checking warning stickers

Checking warning stickers

All high-voltage components are equipped with warning stickers.

♦ Renew any illegible or damaged identification labels and information or warning signs found on components of this vehicle, and affix the new ones in the same location.

♦ They must be fitted on all high-voltage components.

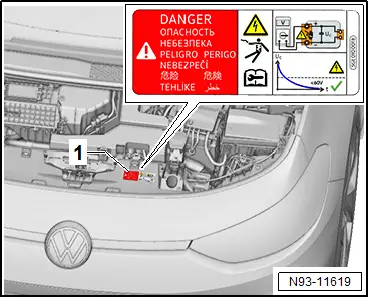

Warning stickers in visible areas

Emergency label must be checked on the following components:

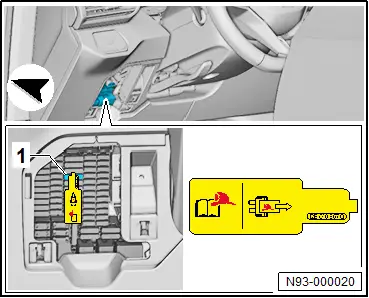

– Emergency label in the interior, on fuse carrier behind fuse box cover.

– Emergency label, maintenance connector for high-voltage system -TW-.

Continued

Warning stickers must be checked on the following components:

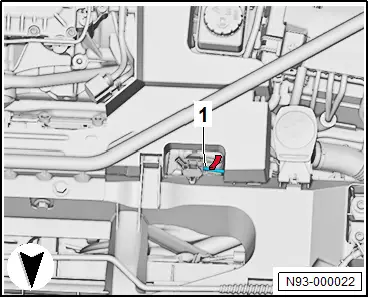

– Warning sticker on front left lock carrier.

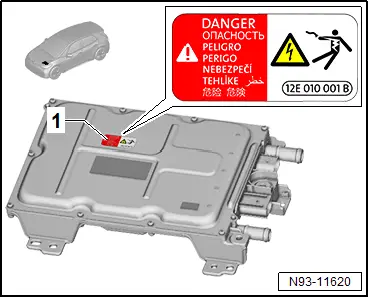

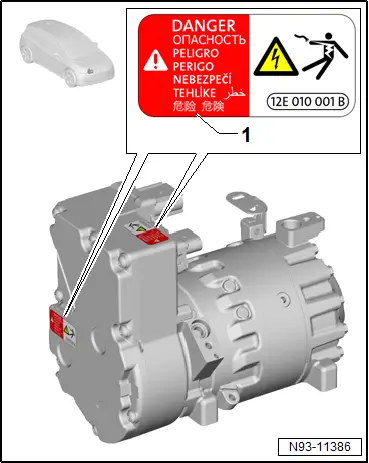

– Warning sticker on air conditioner compressor -VX81-.

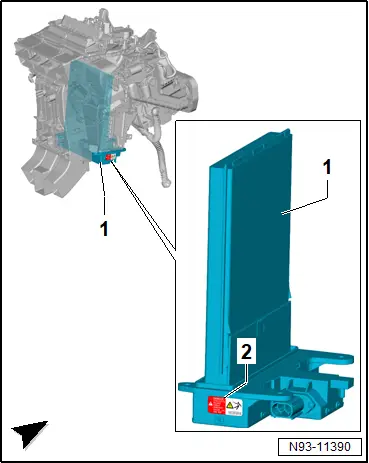

– Warning sticker on high-voltage heater (PTC) -ZX17-.

Rear-wheel drive

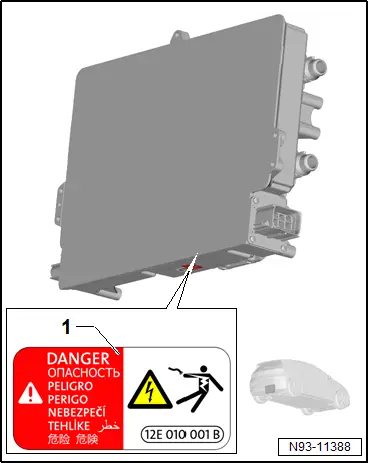

– Warning sticker on voltage converter -A19-.

All vehicles (continued)

Warning stickers in non-visible areas

Emergency label must be checked on the following components:

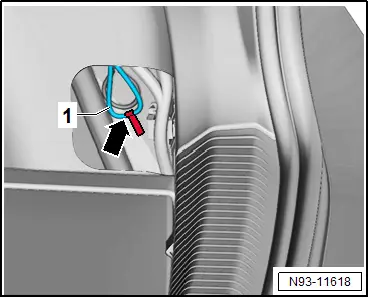

– Emergency label behind right luggage compartment side trim.

Continued

Emergency label must be checked on the following components:

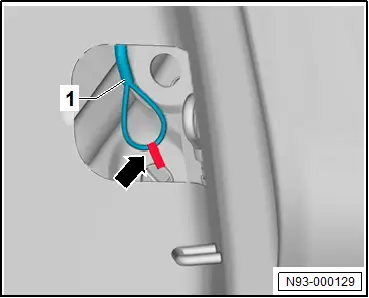

– Emergency label behind right tail light cluster.

Continued

Warning stickers must be checked on the following components:

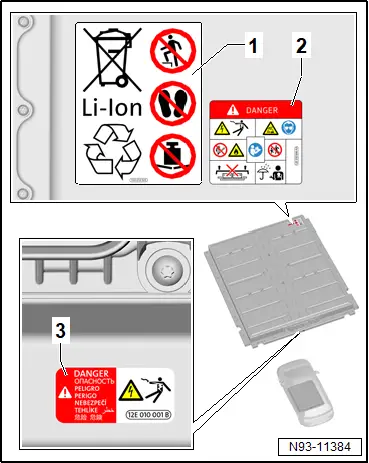

– Warning sticker on high-voltage battery 1 -AX2-.

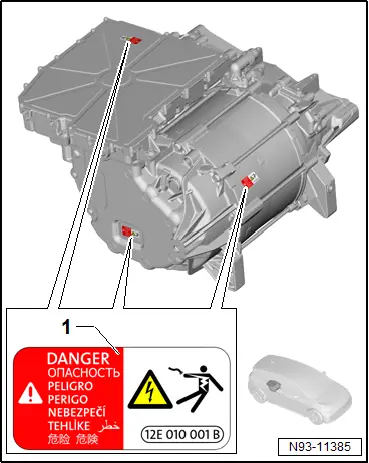

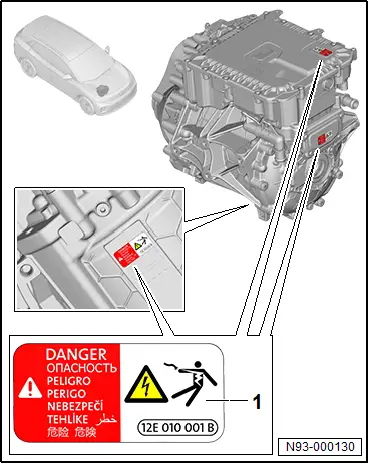

– Warning sticker on three-phase current drive -VX54-.

♦ With power and control electronics for electric drive -JX1-.

– Warning sticker on three-phase current drive 2 -VX97-.

♦ With power and control electronics 2 for electric drive -JX4-.

– Warning sticker on heater element (PTC) 3 -Z132-.

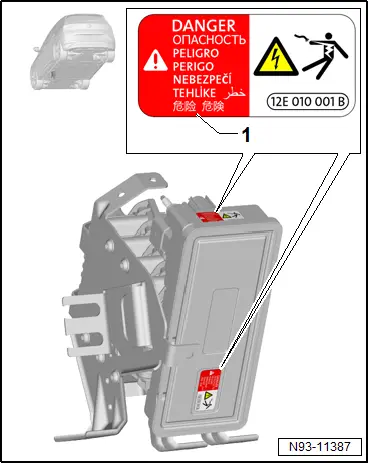

– Warning sticker on charging unit 1 for high-voltage battery -AX4-.
