Volkswagen ID.3: Electric drive. Vehicle noise & engine sound

• Overview of fitting locations – driving sound/motor sound
• Removing and installing engine sound generator module 1 [RX21]
• Removing and installing engine sound generator module 2 [RX22]

Overview of fitting locations – driving sound/motor sound

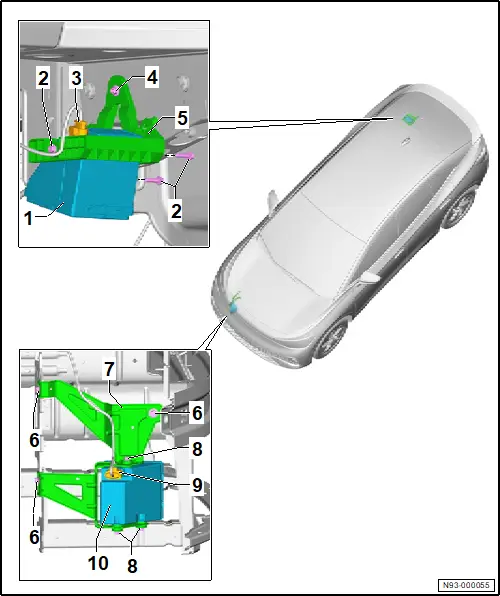

Overview of fitting locations – driving sound/motor sound

1 - Engine sound generator module 2 -RX22-

❏ With actuator 2 for engine sound generator -R258-

❏ With engine sound generator control unit 2 -J1167-

❏ Depending on equipment/version

❏ → Rep. gr.93; Removing and installing engine sound generator module 2 [RX22]

2 - Bolt

❏ Qty. 3

❏ 8 Nm

3 - Electrical connector

4 - Nut

❏ 8 Nm

5 - Bracket

6 - Bolt

❏ Qty. 3

❏ 8 Nm

7 - Bracket

8 - Bolt

❏ Qty. 3

❏ 8 Nm

9 - Electrical connector

10 - Engine sound generator module 1 -RX21-

❏ With actuator 1 for engine sound generator -R257-

❏ With engine sound generator control unit -J943-

❏ → Rep. gr.93; Removing and installing engine sound generator module 1 [RX21]

Removing and installing engine sound generator module 1 [RX21]

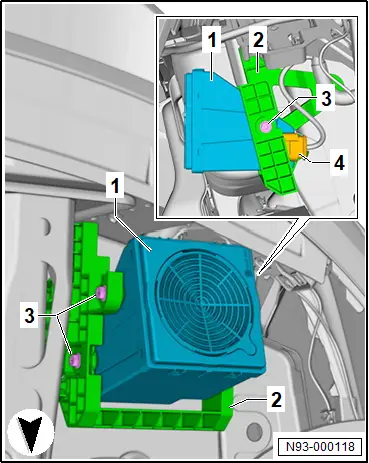

Removing and installing engine sound generator module 1 [RX21]

Removing

– Remove front underbody cladding → General body repairs, exterior; Rep. gr.66; Underbody cladding; Removing and installing front underbody cladding.

– Remove front right wheel housing liner → General body repairs, exterior; Rep. gr.66; Wheel housing liner; Removing and installing front wheel housing liner.

– Disconnect electrical connectors -4-.

– Unscrew nuts -2-.

– Remove engine sound generator module 1 -RX21- -1- from bracket -3-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.93; Overview of fitting locations – driving sound/motor sound

Removing and installing engine sound generator module 2 [RX22]

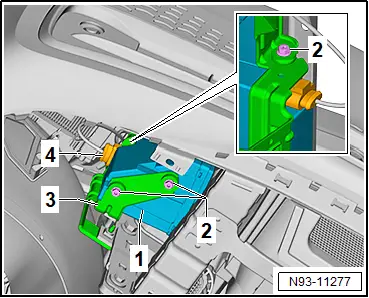

Removing and installing engine sound generator module 2 [RX22]

Removing

– Remove rear underbody cladding → General body repairs, exterior; Rep. gr.66; Underbody cladding; Removing and installing rear underbody cladding.

– Disconnect electrical connectors -4-.

– Unscrew nuts -3-.

– Remove engine sound generator module 2 -RX22- -1- from bracket -2-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.93; Overview of fitting locations – driving sound/motor sound
