Volkswagen ID.3: Electric drive. Accelerator pedal

• Assembly overview - accelerator module
• Removing and installing accelerator pedal module [GX2]

Assembly overview - accelerator module

Assembly overview - accelerator module

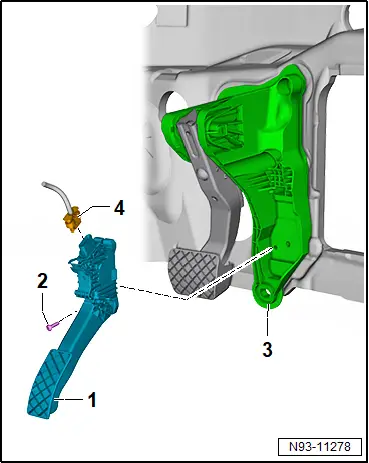

1 - Accelerator pedal module -GX2-

❏ → Rep. gr.93; Removing and installing accelerator pedal module [GX2]

2 - Bolt

❏ 3.5 Nm

3 - Mounting bracket

4 - Electrical connector

Removing and installing accelerator pedal module [GX2]

Removing and installing accelerator pedal module [GX2]

Removing

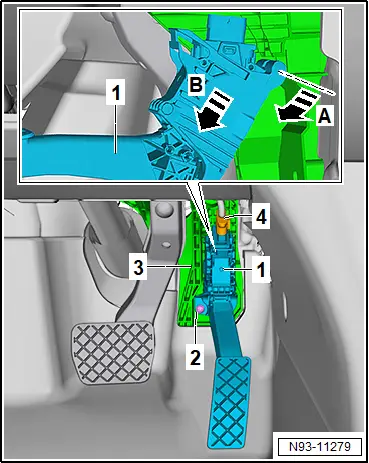

– Disconnect electrical connector -4-.

– Unscrew bolt -2-.

– Swing accelerator pedal module -GX2--1- in direction of -arrow A-, and remove it from mounting -3- in direction of -arrow B-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.93; Assembly overview – accelerator module
