Volkswagen ID.3: Electric drive. Motor control unit

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Power unit / Electric drive EIP220, EIA200, EIA210 / Electric drive. Motor control unit

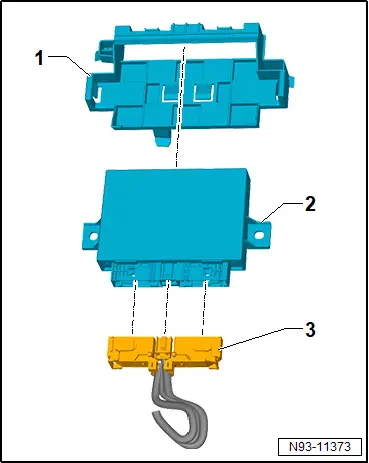

Assembly overview – motor control unit

1 - Bracket for motor control unit

❏ → Rep. gr.93; Removing and installing bracket for motor control unit [J623]

2 - Engine control unit -J623-

❏ → Rep. gr.93; Removing and installing motor control unit [J623]

3 - Electrical connector

Removing

If the motor control unit -J623- is renewed, perform the test plan for the renewal of the motor control unit:

– Carry out function “Renew control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.

Continued

– Disconnect battery → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Remove lower A-pillar trim → General body repairs, interior; Rep. gr.70; Trims, interior; Removing and installing lower A-pillar trim.

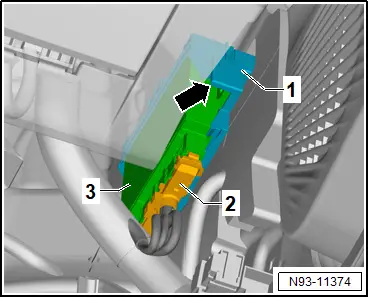

– Disconnect electrical connectors -2-.

– Release bracket -1- -arrow- in direction of passenger compartment, and pull out motor control unit -J623- -3-.

Installing

Install in reverse order of removal, observing the following:

If the motor control unit -J623- has been renewed, perform the test plan for the renewal of the motor control unit:

– Carry out function “Renew control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.

Removing

– Remove motor control unit -J623- → Rep. gr.93; Removing and installing motor control unit [J623].

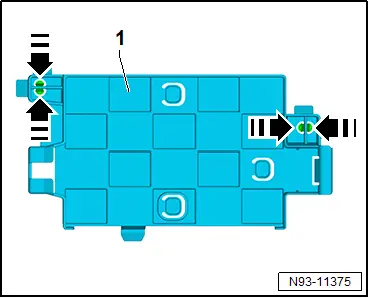

– Press together locking devices in direction of -arrow-.

– Remove bracket for motor control unit -J623- -1-.

Installing

Install in reverse order of removal.

– Attach bracket for motor control unit -J623- making sure it engages audibly.
