Assembly overview - gearbox housing

Assembly overview - gearbox housing

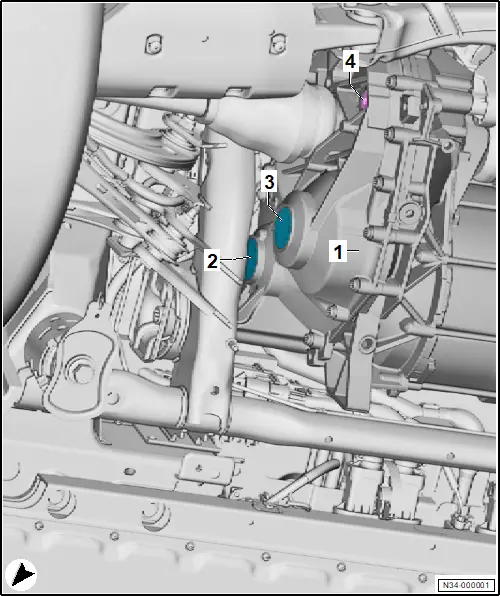

1 - Three-phase current drive -VX54- with gearbox

2 - Upper sealing cap

❏ → Rep. gr.34; Removing and installing cap

3 - Lower sealing cap

❏ → Rep. gr.34; Removing and installing cap

4 - Plug for gear oil filling and inspection hole

❏ Renew after removing

❏ 45 Nm

Removing and installing cap

Removing and installing cap

Special tools and workshop equipment required

♦ thrust pad -3062-

Removing

Important

● Lower motor with gearbox by 150 mm to renew the upper cap → Electric rear-wheel drive EIP220 and all-wheel drive EIA200, EIP220; Rep. gr.10; Removing and installing rear motor; Removing motor.

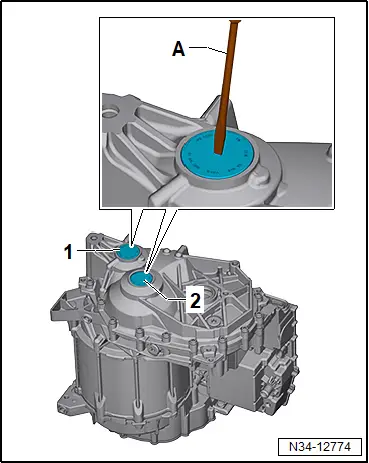

1 - Upper sealing cap

2 - Lower sealing cap

– Pierce centre of cap to be removed with screwdriver -A-, and carefully pry out cap.

Installing

Install in reverse order of removal, observing the following:

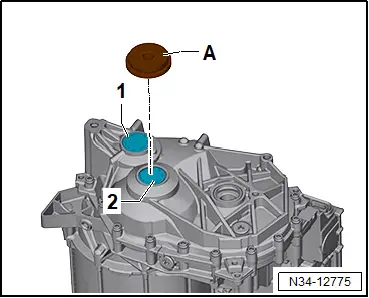

– Drive in upper cap -1- or lower cap -2- with thrust pad -3062- -A- so that it is flush.

Checking gear oil level

Checking gear oil level

Special tools and workshop equipment required

♦ adapter -VAS 6617/11-

♦ hand pump for gear oil -VAS 6617-

CAUTION

Risk of injury caused by escaping oil/fluid.

Eyes and skin can suffer irritation or injuries.

– Put on safety goggles.

– Put on protective gloves.

Allocate gear oil according to → Electronic parts catalogue (ETKA).

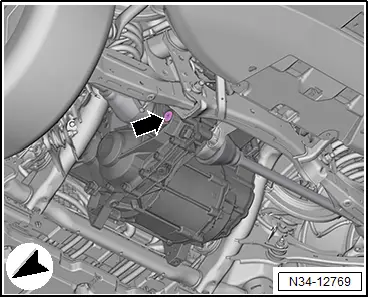

– Unscrew plug for gear oil filling and inspection hole -arrow-.

Important

● Vehicle must be horizontal when checking gear oil level.

● The gear oil level is correct when the gearbox is filled to the lower edge of the oil filler hole.

Filling gear oil

– Engage hand pump for gear oil -VAS 6617- and adapter -VAS 6617/11-.

– Use hand pump for gear oil -VAS 6617- and adapter -VAS 6617/11- to fill gear oil up to lower edge of oil filler hole.

– Screw in and tighten new plug for gear oil filling and inspection hole -arrow-.

Tightening torques

♦ → Rep. gr.34; Assembly overview - gearbox housing
