Volkswagen ID.3: 1-speed gearbox 0MH, rear, EQ310. Final drive, differential, differential lock

• Assembly overview ? seals
• Renewing left seal

Assembly overview ? seals

Assembly overview ? seals

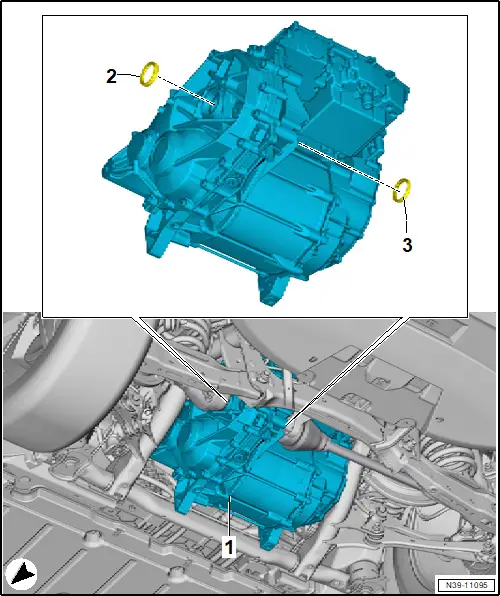

1 - Three-phase current drive -VX54- with gearbox

2 - Left drive shaft seal

❏ Renew after removing

❏ → Rep. gr.39; Renewing left seal

3 - Seal for right drive shaft

❏ Renew after removing

❏ → Rep. gr.39; Renewing right seal

Renewing left seal

Renewing left seal

Special tools and workshop equipment required

♦ multi-purpose tool -VW771-

♦ puller hook -VW771/37-

♦ thrust piece -T10481-

Removing

– Remove left drive shaft → Running gear, axles, steering; Rep. gr.42; Drive shaft; Removing and installing drive shafts.

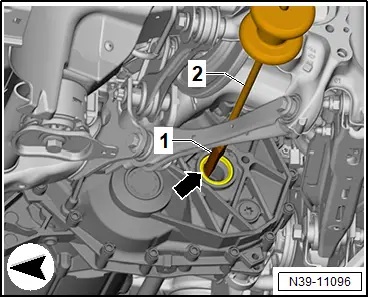

– Use puller hook -VW771/37- -1- and multi-purpose tool -VW771- -2- to pull out seal -arrow-.

Installing

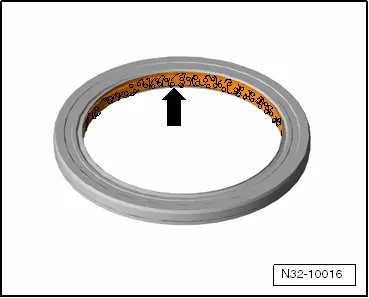

– Half-fill space between sealing lip and dust lip -arrow- with sealing grease.

Sealing grease → Electronic parts catalogue (ETKA)

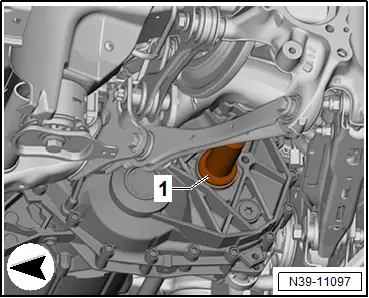

– Drive in new seal to stop using thrust piece -T10481- -1- keeping the seal absolutely straight in the process.

– Install left drive shaft → Running gear, axles, steering; Rep. gr.42; Drive shaft; Removing and installing drive shaft.

– → Rep. gr.34; Check gear oil level.
