Volkswagen ID.3: Exterior equipment. Lettering and emblems

• Assembly overview – lettering and badges
• Removing and installing front badge
• Removing and installing badge at rear
• Removing and installing lettering at rear
• Renewing lettering and badges on sides

Assembly overview – lettering and badges

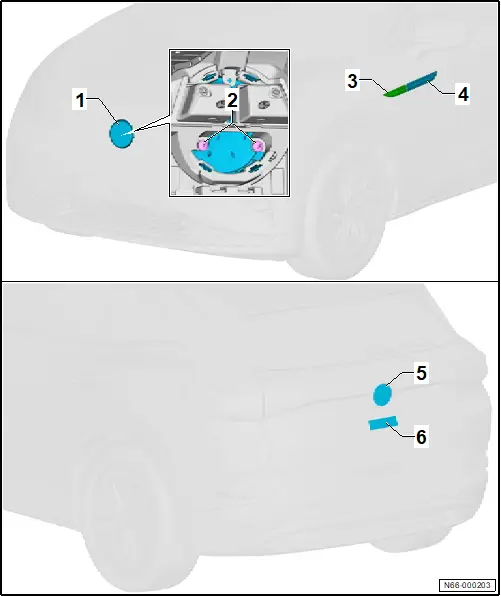

Assembly overview – lettering and badges

Overview shown for left side of vehicle as an example

1 - Badge at front

❏ Depending on equipment/version

❏ → Rep. gr.66; Removing and installing front badge

2 - Bolt

❏ Fitted on selected models

❏ Qty. 2

❏ 2 Nm

3 - Lettering on wing

❏ Fitted on selected models

❏ Depending on equipment/version

❏ Renew after removing

❏ → Rep. gr.66; Renewing lettering and badges on sides

4 - Lettering on door

❏ Fitted on selected models

❏ Depending on equipment/version

❏ Renew after removing

❏ → Rep. gr.66; Renewing lettering and badges on sides

5 - Badge on rear

❏ Renew after removing

❏ → Rep. gr.66; Removing and installing badge at rear

6 - Lettering at rear

❏ Depending on equipment/version

❏ Renew after removing

❏ → Rep. gr.66; Removing and installing lettering at rear

Removing and installing front badge

Removing and installing front badge

The front badge with contour lighting module for front badge -MX16- will henceforth be referred as “front badge”.

Removing

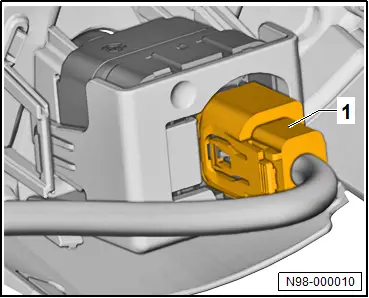

Vehicles with front overhead view camera -R243- in badge

– Disconnect electrical connector -1-.

All vehicles (continued)

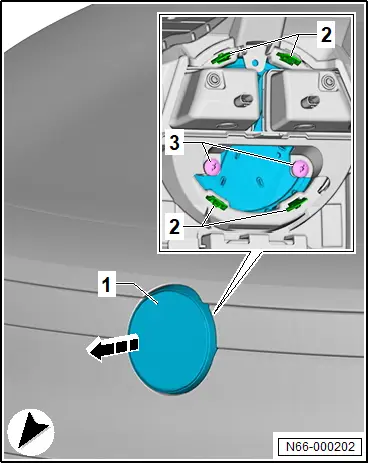

Vehicles with bolts in badge

– Unscrew bolts -3-.

All vehicles (continued)

– Release fasteners -2-.

– Remove front badge -1- in direction of -arrow-.

Installing

Install in reverse order of removal, observing the following:

Vehicles with front overhead view camera -R243- in badge

– Calibrate front overhead view camera -R243- → Driver assist systems; Rep. gr.98; Overhead view camera; Calibrating overhead view camera system.

All vehicles (continued)

Tightening torques

♦ → Rep. gr.66; Assembly overview – lettering and badges

Removing and installing badge at rear

Removing and installing badge at rear

Removing

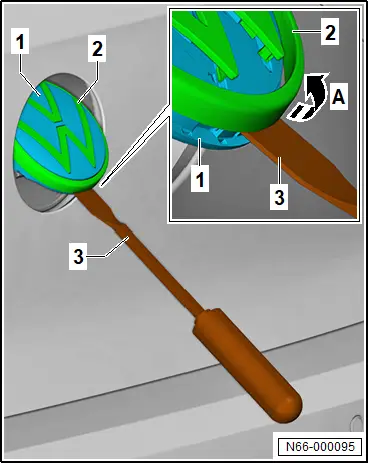

– Open swivelling badge -1- slightly.

– Position commercially available scraper -3- between badge on rear -2- and swivelling badge -1-.

– Lever off badge at rear -2- in direction of -arrow A-.

Installing

Install in reverse order of removal, observing the following:

– Fit badge at rear, and push it on until it can be heard to engage.

Removing and installing lettering at rear

Removing and installing lettering at rear

Special tools and workshop equipment required

♦ Hot air blower -V.A.G 1416-

Important

● Observe relevant specifications with regard to temperature, minimum curing period, removal of adhesive residue and cleaning → General information - body; Rep. gr.52; Self-adhesive components; Specifications for self-adhesive components.

Removing

– Use hot air blower -V.A.G 1416- to heat up lettering.

– Pull off lettering from rear lid.

Installing

Install in reverse order of removal, observing the following:

– Remove adhesive residue and clean bonding surfaces → General information - body; Rep. gr.52; Self-adhesive components; Specifications for self-adhesive components.

Important

● Protective film must not be pulled off until immediately prior to installing.

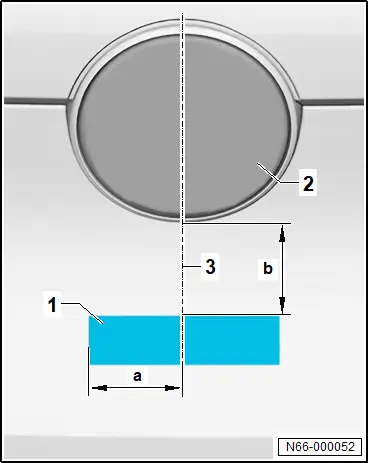

– Fit lettering at rear -1-, taking into account the specified dimensions:

♦ “ID.3” badge at rear -2-

♦ Centre line -3-

♦ Side dimension -a- = 47.4 ±1 mm

♦ Height dimension -b- = 65.3 ±1 mm

♦ “GTX” badge at rear -2-

♦ Centre line -3-

♦ Side dimension -a- = 61.0 ±1 mm

♦ Height dimension -b- = 61.5 ±1 mm

– Press on lettering at rear -1- with a force between 40 N and 50 N.

Important

● The minimum drying time must be adhered to.

Renewing lettering and badges on sides

Renewing lettering and badges on sides

Special tools and workshop equipment required

♦ Hot air blower -V.A.G 1416-

♦ Roller -T40400-

Removal and installation are described for left side of vehicle as an example.

Important

● Observe specifications with regard to temperature, minimum curing period, removal of adhesive residue and cleaning → General information - body; Rep. gr.52; Self-adhesive components; Specifications for self-adhesive components.

Removing

– Apply heat from hot air blower -V.A.G 1416- to lettering.

– Pull lettering off wing.

Installing

– Remove adhesive residue, and clean bonding surfaces.

Important

● Protective film must not be pulled off until immediately prior to installing.

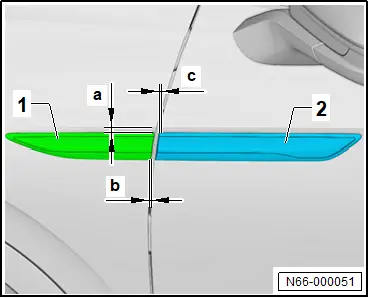

– Fit lettering at wing -1-, taking into account the specified dimensions:

♦ Height dimension -a- = 1.5 mm

♦ Side dimension -b- = 1.4 mm

– Press on lettering.

– Use roller -T40400- in area of adhesive tape to press on lettering with a force between 40 N and 50 N.

Important

● The minimum drying time must be adhered to.
