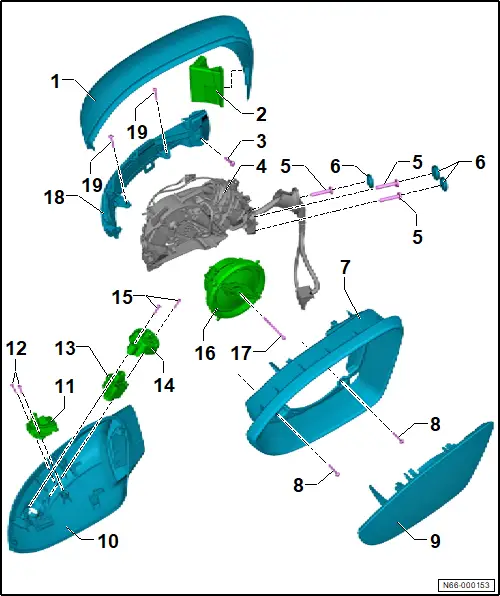

Assembly overview – exterior mirror
Overview is shown for left side of vehicle as an example
1 - Upper mirror cover
❏ → Rep. gr.66; Removing and installing upper mirror cover
2 - Lane change assist warning lamp in left exterior mirror -K312-/lane change assist warning lamp in right exterior mirror -K311-
❏ Depending on equipment/version
❏ → Driver assist systems; Rep. gr.98; Senders/sensors/control units; Removing and installing lane change assist warning lamp in exterior mirror [K311]/[K312]
3 - Bolt
❏ Fitted on selected models
❏ 0.8 Nm
4 - Mirror mounting
❏ One-piece design with mirror cover at bottom
❏ With driver side exterior mirror -VX4-/passenger side exterior mirror -VX5-
❏ → Rep. gr.66; Removing and installing exterior mirror [VX4]/[VX5]
5 - Bolt
❏ Quantity varies depending on model
❏ Qty. 1, 2 or 3
❏ M6 or M8
❏ M6 = 9 Nm
❏ M8 = 20 Nm
6 - Cap
❏ Fitted on selected models
❏ Quantity and shape vary depending on model
❏ Qty. 1 or 3
7 - Mirror frame
❏ → Rep. gr.66; Removing and installing mirror frame
8 - Bolt
❏ Qty. 2
❏ 0.8 Nm
9 - Mirror glass
❏ Depending on equipment/installation period with heated exterior mirror on driver side -Z4- and heated exterior mirror on passenger side -Z5-
❏ → Rep. gr.66; Removing and installing mirror glass
10 - Bottom mirror cover
❏ One-piece design with mirror mounting, depending on model
❏ → Rep. gr.66; Exterior mirror; Removing and installing lower mirror cover
11 - Entry light in exterior mirror, driver side -W52-/entry light in exterior mirror, passenger side -W53-
❏ Depending on equipment/version
❏ → Electrical system; Rep. gr.94; Lights in exterior mirror; Removing and installing entry light in exterior mirror [W52]/[W53]
12 - Bolt
❏ Depending on equipment/version
❏ Quantity varies depending on model
❏ Qty. 1 or 2
❏ 0.8 Nm
13 - Left overhead view camera -R244-/right overhead view camera -R245-
❏ Depending on equipment/version
❏ → Driver assist systems; Rep. gr.98; Senders/sensors/control units; Removing and installing left/right overhead view camera [R244]/[R245]
14 - Overhead view camera bracket
❏ Depending on equipment/version
15 - Bolt
❏ Depending on equipment/version
❏ Qty. 2
❏ 0.8 Nm
16 - Mirror adjustment unit
❏ On driver side: with driver side mirror adjustment motor 2 -V17-, driver side mirror adjustment motor -V149- and driver side fold-in mirror motor -V121-, as well as with optional potentiometer for horizontal adjustment of driver side mirror -G514- and potentiometer for vertical adjustment of driver side mirror -G515-
❏ On passenger side: with front passenger side mirror adjustment motor 2 -V25-, front passenger side mirror adjustment motor -V150- and front passenger side fold-in mirror motor -V122-, as well as with optional potentiometer for horizontal adjustment of front passenger side mirror -G516- and potentiometer for vertical adjustment of front passenger side mirror -G517-
❏ → Rep. gr.66; Removing and installing mirror adjustment unit
17 - Bolt
❏ 1.4 Nm
18 - Driver side exterior mirror turn signal bulb -L131-/front passenger side exterior mirror turn signal bulb -L132-
❏ → Electrical system; Rep. gr.94; Lights in exterior mirror; Removing and installing turn signal repeater bulb [L131]/[L132]
19 - Bolt
❏ Fitted on selected models
❏ Qty. 2
❏ 0.8 Nm
Removing and installing exterior mirror [VX4]/[VX5]
The driver side exterior mirror -VX4- and passenger side exterior mirror -VX5- will henceforth be referred to as “exterior mirror”.
Removal and installation are described for the left side of vehicle as an example.
Removing
– Remove front door trim → General body repairs interior; Rep. gr.70; Front door trims; Removing and installing front door trim.

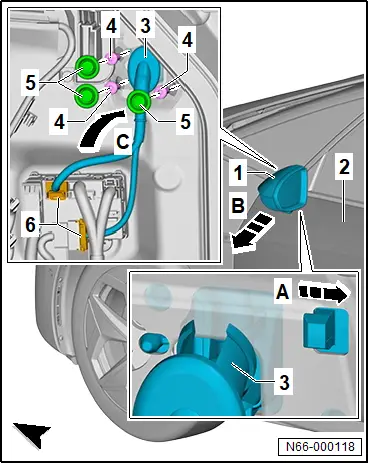

– Disconnect electrical connectors -6-.
– Lever off caps -5-.
– Unscrew bolts -4-.
– Detach locking device from fastener in direction of -arrow A-.
– Detach exterior mirror -1- in direction of -arrow B- while guiding grommet -3- with electrical wire in direction of -arrow C- out of door -2-.
Installing
Install in reverse order of removal, observing the following:
Tightening torques
♦ → Rep. gr.66; Assembly overview – exterior mirror
Removing and installing mirror glass
Special tools and workshop equipment required
♦ Removal lever -80-200-
Heated exterior mirror on driver side -Z4- and heated exterior mirror on passenger side -Z5- are referred to hereafter as mirror glass.
Removal and installation are described for left side of vehicle as an example.
Removing
CAUTION
Risk of injury to hands and eyes due to glass splinters.
Danger of cutting yourself.
– Put on safety goggles.
– Put on protective gloves.
NOTICE
Risk of damage to surfaces of components.
– Before using a lever, always mask off the components installed in visible areas using commercially available adhesive tape.

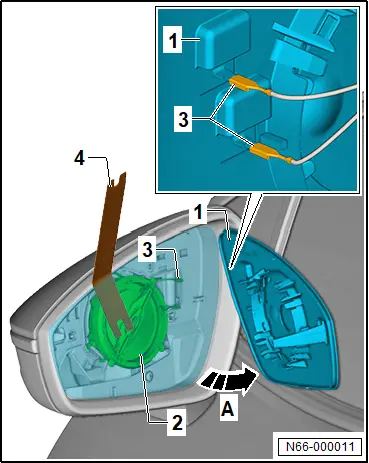

– Press bottom of mirror glass -1- into exterior mirror.
– Use removal lever -80-200- -4- to lever mirror glass -1- off mirror adjustment unit -2-.
– Swing mirror glass -1- in direction of -arrow A-, and disconnect electrical connectors -3-.
Installing
Install in reverse order of removal, observing the following:
CAUTION
Risk of injury to hands and eyes due to glass splinters.
Danger of cutting yourself.
– Put on safety goggles.
– Put on protective gloves.
NOTICE
Improper handling may cause damage to the mirror glass.
– Only fit and press on the mirror glass centrally.
– Push mirror glass centrally onto mirror adjustment unit until it can be heard to engage.
Removing and installing mirror adjustment unit
The removal and installation procedures are described for the left side of the vehicle as an example.
Removing
– Remove mirror glass → Rep. gr.66; Removing and installing mirror glass.

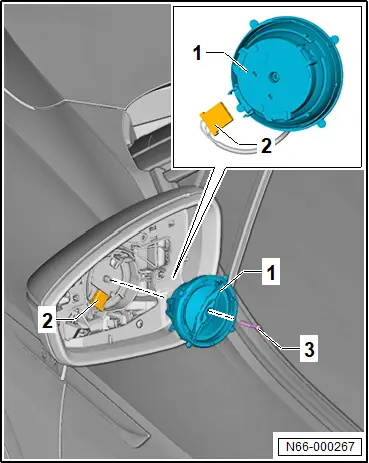

– Unscrew bolt -3-, and remove mirror adjustment unit -1-.
– Unplug electrical connector -2-.
Installing
Installation is carried out in reverse order; note the following:
Tightening torques
♦ → Rep. gr.66; Assembly overview - exterior mirror
Removing and installing upper mirror cover
Removal and installation are described for the left side of vehicle as an example.
Removing
– Remove mirror glass → Rep. gr.66; Removing and installing mirror glass.

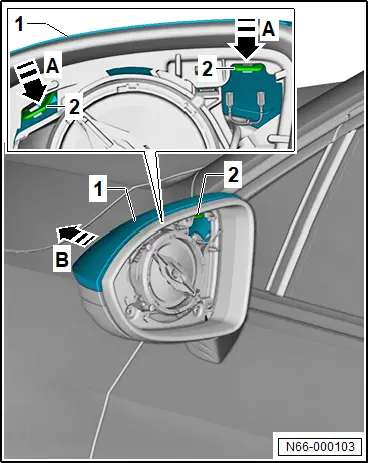

– Release fasteners -2- in direction of -arrow A-.
– Detach upper mirror cover -1- in direction of -arrow B-.
Vehicles with lane change assist warning lamp in left exterior mirror -K312-
– Disconnect electrical connector.
All vehicles (continued)
Installing
Install in reverse order of removal, observing the following:
– Fit upper mirror cover so that it engages audibly.
Removing and installing mirror frame
Removal and installation are described for the left side of vehicle as an example.
Removing
– Remove mirror glass → Rep. gr.66; Removing and installing mirror glass.

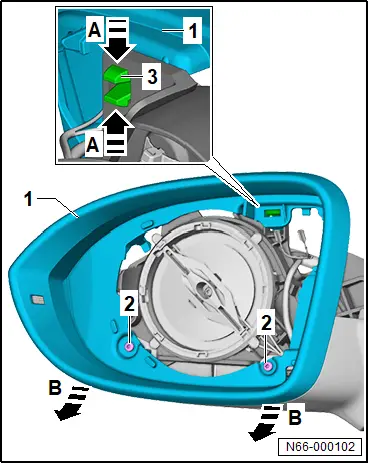

Vehicles with one fastener in mirror frame
– Unscrew bolts -2-.
– Press together fasteners -3- in direction of -arrow A-, and release them.
– Pull off mirror frame -1- in direction of -arrow B-.
All vehicles (continued)

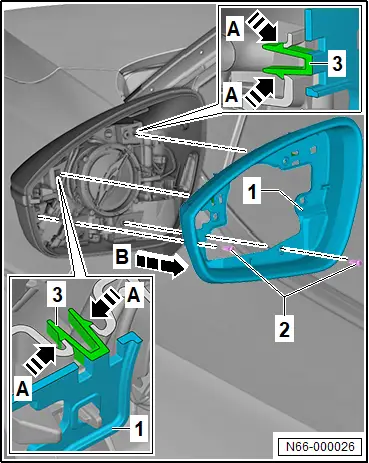

Vehicles with two fasteners in mirror frame
– Unscrew bolts -2-.
– Press together fasteners -3- in direction of -arrow A-, and release them.
– Pull off mirror frame -1- in direction of -arrow B-.
All vehicles (continued)
Installing
Install in reverse order of removal, observing the following:
Tightening torques
♦ → Rep. gr.66; Assembly overview – exterior mirror
