Volkswagen ID.3: Body, rear. Rear longitudinal member

• Assembly overview - cover plate for longitudinal member
• Assembly overview – rear longitudinal member, part section
• Assembly overview – rear longitudinal member, part section (second separating cut)
• Renewing cover plate for longitudinal member
• Renewing rear longitudinal member – part section
• Renewing rear longitudinal member, part section (second parting cut)

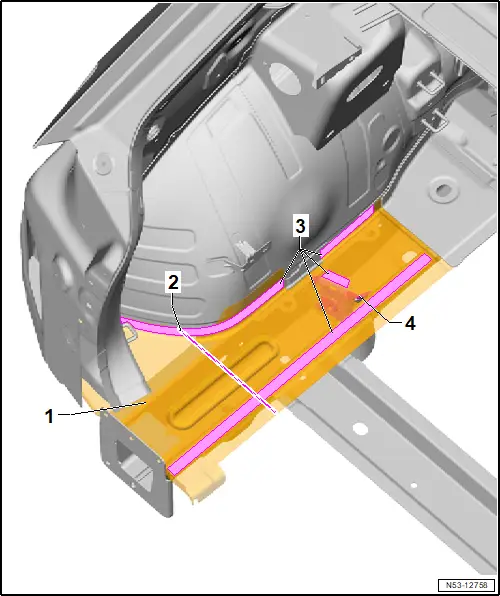

Assembly overview - cover plate for longitudinal member

Assembly overview - cover plate for longitudinal member

Overview is shown for left side of vehicle as an example.

1 - Cover plate

❏ Longitudinal member

❏ → Rep. gr.53; Renewing cover plate for longitudinal member

2 - Separating cut

3 - Bonded area

4 - Moulded foam insert

❏ → Rep. gr.00; Moulded foam inserts

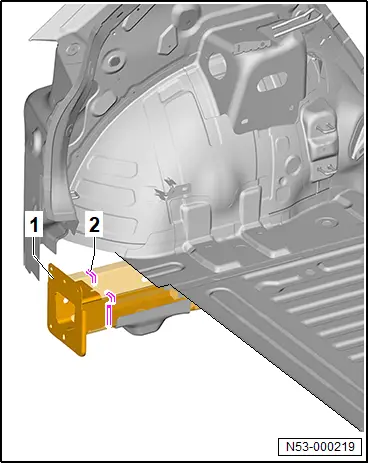

Assembly overview – rear longitudinal member, part section

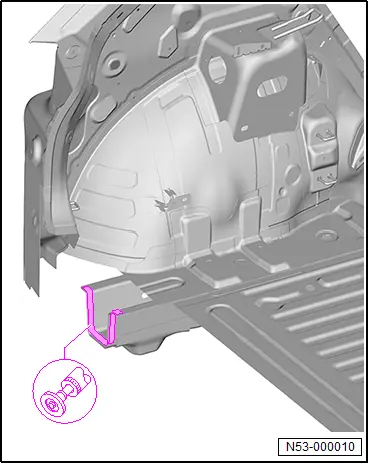

Assembly overview – rear longitudinal member, part section

Overview is shown for left side of vehicle as an example.

1 - Rear longitudinal member

❏ → Rep. gr.53; Renewing rear longitudinal member – part section

2 - Separating cut

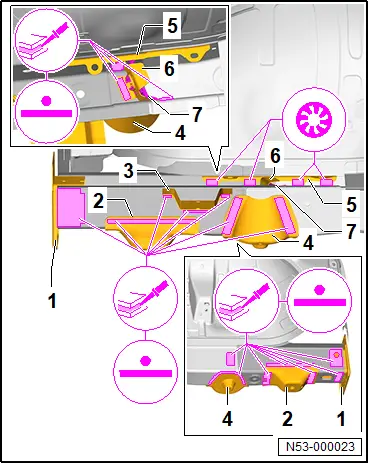

Assembly overview – rear longitudinal member, part section (second separating cut)

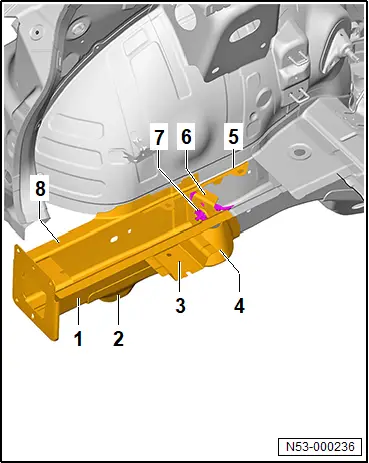

Assembly overview – rear longitudinal member, part section (second separating cut)

Overview is shown for left side of vehicle as an example.

1 - Rear longitudinal member

❏ → Rep. gr.53; Renewing rear longitudinal member, part section (second parting cut)

2 - Subframe mounting

3 - Cross member connecting piece

4 - Spring plate

❏ Renew after removing

5 - Sealing plate

6 - Partition

7 - Moulded foam insert

❏ → Rep. gr.00; Moulded foam inserts

8 - Cross panel for rear longitudinal member

Renewing cover plate for longitudinal member

Renewing cover plate for longitudinal member

WARNING

Gases/ vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.

– Do not weld, solder or cut closer than 15 mm to moulded foam inserts.

– Use an extraction system during work.

NOTICE

If separating cuts are made too deep, underlying reinforcement could be damaged.

– Only make separating cuts with body saw.

– Rewelding of reinforcements is not permitted due to safety reasons.

NOTICE

If welds are positioned too far on outside, strength could be impaired

– RP weld points must be placed as far as possible from outer edge of welding flange.

NOTICE

If adhesive is applied prematurely, bond could be impaired

– New part must be welded in within 90 minutes.

Observe safety information → Rep. gr.00; Safety information

Only tools and workshop equipment authorised by Volkswagen AG may be used → Rep. gr.00; Tools.

Removing

Centre luggage compartment floor part section removed → Rep. gr.53; Renewing centre luggage compartment floor.

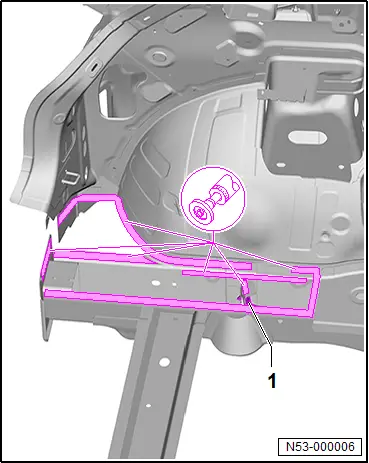

– Separate original joint.

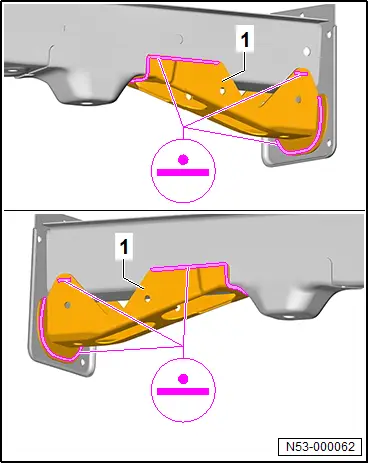

– Remove longitudinal member cover plate -1-.

– Remove any foam residue -1-.

– Remove remaining material.

– Completely remove adhesive residue.

– Sand bonding and welding surfaces down to bare metal, and clean them.

Installing

Replacement parts

♦ For allocation of moulded foam inserts, see → Electronic parts catalogue (ETKA)

♦ For allocation of 2-pack body adhesive, see → Electronic parts catalogue (ETKA)

Important

● New parts must be adapted and attached with the vehicle standing on its wheels or straightening bracket set.

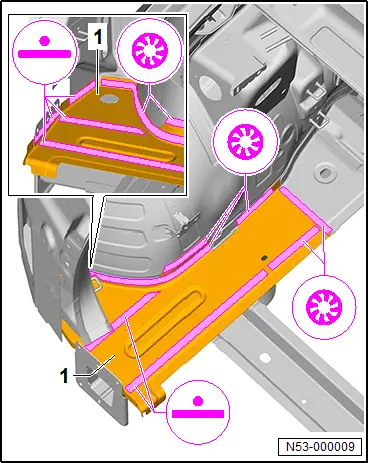

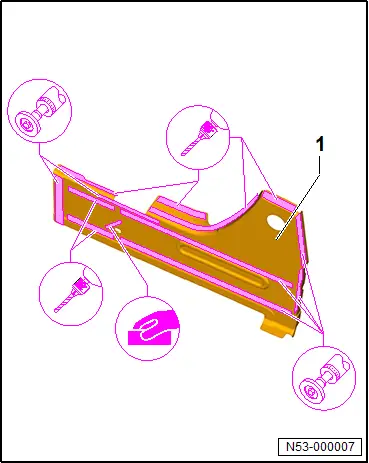

– Lightly roughen bonding surfaces in area of moulded foam insert.

– Drill or alternatively punch holes (8 mm in diameter) for SG plug weld seam in new part -1-.

– Grind welding surfaces and bonding surfaces on new part -1- down to bare metal and clean.

– Prepare moulded foam insert -1- for installation and insert.

– Apply 2-component body adhesive to entire surface.

– Adapt new part -1- to fit, and fix it in position.

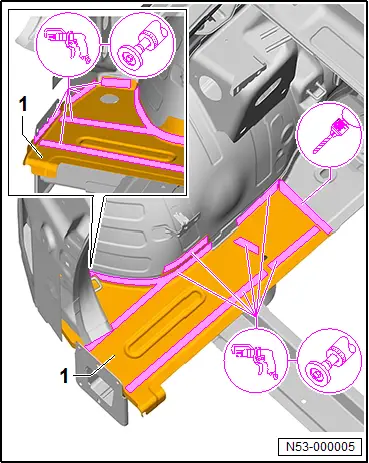

– Weld in new part -1- (SG plug weld seam and RP spot weld seam).

– Install centre luggage compartment floor part section → Rep. gr.53; Renewing centre luggage compartment floor.

Renewing rear longitudinal member – part section

Renewing rear longitudinal member – part section

WARNING

Gases/ vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.

– Do not weld, solder or cut closer than 15 mm to moulded foam inserts.

– Use an extraction system during work.

NOTICE

If separating cuts are made too deep, underlying reinforcement could be damaged.

– Only make separating cuts with body saw.

– Rewelding of reinforcements is not permitted due to safety reasons.

NOTICE

If welds are positioned too far on outside, strength could be impaired

– RP weld points must be placed as far as possible from outer edge of welding flange.

NOTICE

If adhesive is applied prematurely, bond could be impaired

– New part must be welded in within 90 minutes.

Observe safety information → Rep. gr.00; Safety information

Only tools and workshop equipment authorised by Volkswagen AG may be used → Rep. gr.00; Tools.

Removal and installation are described for left side of vehicle as an example.

Removing

Centre luggage compartment floor part section removed → Rep. gr.53; Renewing centre luggage compartment floor.

Longitudinal member cover plate part section removed → Rep. gr.53; Renewing longitudinal member cover plate.

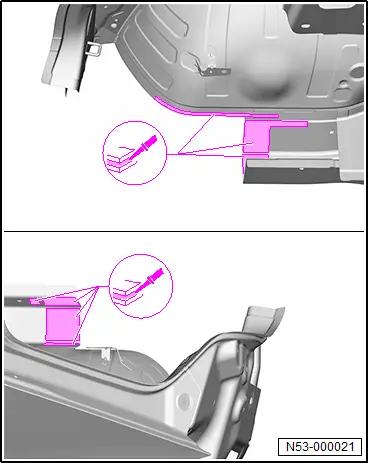

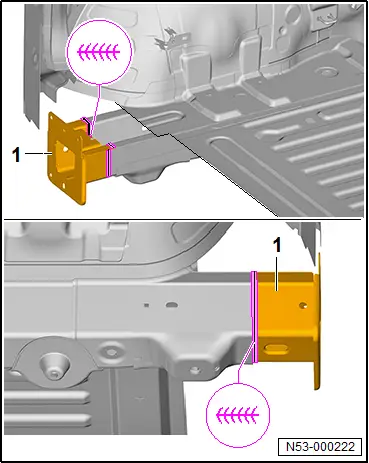

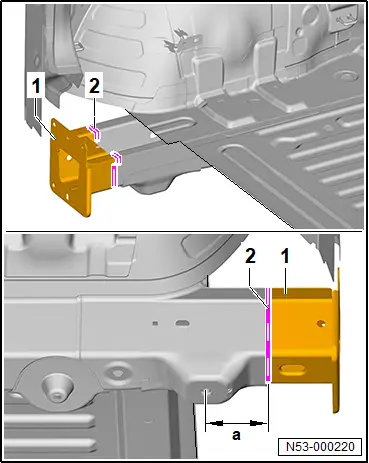

– Mark separating cut -2- all around on rear longitudinal member -1- in accordance with dimension -a-, and cut in a straight line.

♦ Dimension -a- = 95 mm

– Remove longitudinal member part section -1-.

– Remove remaining material.

– Grind welding surfaces back to bare metal and clean.

Installing

Replacement parts

♦ For allocation of 2-pack body adhesive, see → Electronic parts catalogue (ETKA)

Important

● New parts must be adapted and attached with the vehicle standing on the straightening bracket set.

– Transfer separating cut -3- to new part -2-, and cut in a straight line.

– Sand bonding and welding surfaces on new part -1- down to bare metal, and clean them.

– Adapt new part -1- to fit, and fix it in position.

– Check fit with attachments.

– Weld in new part -1- all around, SG continuous weld seam.

– Apply 2-component body adhesive to entire surface.

– Adapt new part -1- to fit, and fix it in position.

– Check fit with attachments.

– Weld in new part -1- (RP spot weld seam).

– Install centre luggage compartment floor (part section) → Rep. gr.53; Renewing centre luggage compartment floor.

– Install longitudinal member cover plate part section → Rep. gr.53; Renewing longitudinal member cover plate.

Renewing rear longitudinal member, part section (second parting cut)

Renewing rear longitudinal member, part section (second parting cut)

WARNING

Gases/ vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.

– Do not weld, solder or cut closer than 15 mm to moulded foam inserts.

– Use an extraction system during work.

NOTICE

If separating cuts are made too deep, underlying reinforcement could be damaged.

– Only make separating cuts with body saw.

– Rewelding of reinforcements is not permitted due to safety reasons.

NOTICE

If welds are positioned too far on outside, strength could be impaired

– RP weld points must be placed as far as possible from outer edge of welding flange.

NOTICE

If adhesive is applied prematurely, bond could be impaired

– New part must be welded in within 90 minutes.

Observe safety information → Rep. gr.00; Safety information

Only tools and workshop equipment authorised by Volkswagen AG may be used → Rep. gr.00; Tools.

Removal and installation are described for left side of vehicle as an example.

Removing

Centre luggage compartment floor part section removed → Rep. gr.53; Renewing centre luggage compartment floor.

Longitudinal member cover plate part section removed → Rep. gr.53; Renewing longitudinal member cover plate.

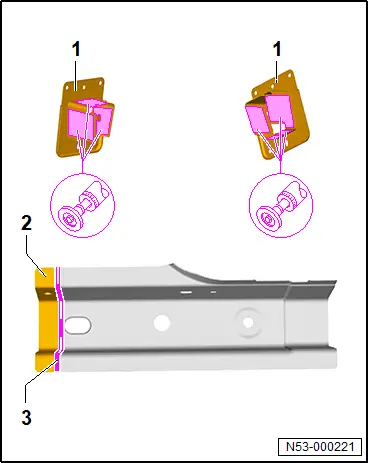

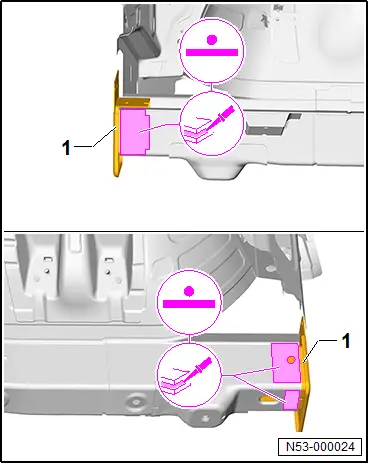

– Remove any foam residue -4-.

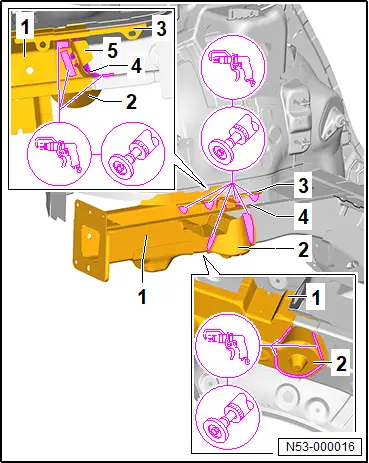

– Separate original joint on rear longitudinal member -1-.

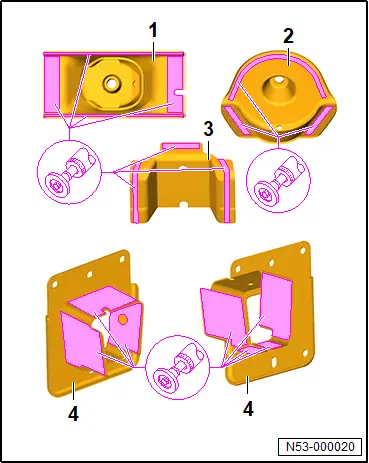

– Detach spring plate -2-, sealing plate -3- and end plate -5-.

– Separate original joint.

– Remove longitudinal member part section -1-.

– Remove remaining material.

– Grind welding surfaces back to bare metal and clean.

Installing

Replacement parts

♦ For allocation of moulded foam inserts, see → Electronic parts catalogue (ETKA)

♦ For allocation of 2-pack body adhesive, see → Electronic parts catalogue (ETKA)

Important

● New parts must be adapted and attached with the vehicle standing on the straightening bracket set.

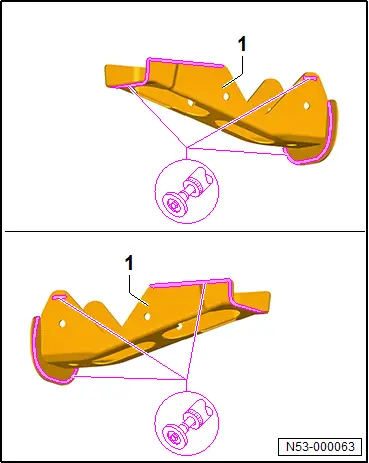

– Grind bonding surfaces and welding surfaces on new part -1- and -3- down to bare metal and clean.

– Drill 8 mm diameter holes for SG plug weld seam in new part -2-.

– Sand bonding and welding surfaces on new part -1- down to bare metal, and clean them.

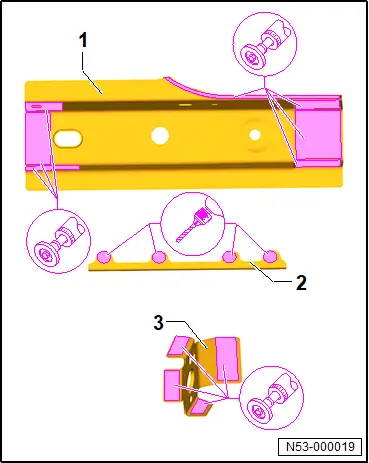

– Grind bonding surfaces and welding surfaces on new part -1- to -4- down to bare metal and clean.

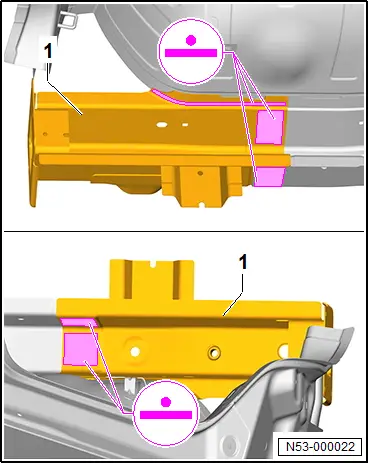

– Apply 2-component body adhesive to entire surface.

– Adapt new part -1- to fit, and fix it in position.

– Weld in new part -1- (RP spot weld seam).

– Apply 2-component body adhesive to entire surface.

– Adapt new part -6- to fit, and fix it in position.

– Weld in new part -6- (RP spot weld seam).

– Adjust new part -1- to -5- to fit and fix in position.

– Check fit with attachments.

– Weld in new part -1- to -5- (SG plug weld seam and RP spot weld seam).

– Prepare moulded foam insert -7- for installation and insert.

– Apply 2-component body adhesive to entire surface.

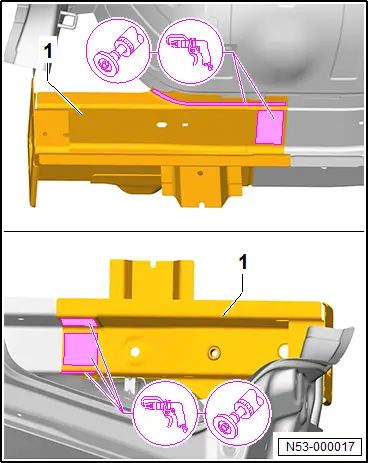

– Adapt new part -1- to fit, and fix it in position.

– Check fit with attachments.

– Weld in new part -1- (RP spot weld seam).

– Install centre luggage compartment floor part section → Rep. gr.53; Renewing centre luggage compartment floor.

– Install longitudinal member cover plate part section → Rep. gr.53; Renewing longitudinal member cover plate.
