Volkswagen ID.3: Wiring. Cleaning contact surfaces

• Cleaning battery clamp and battery terminal
• Anti-corrosion treatment of contact surfaces
• Cleaning terminals
• Cleaning threaded connections

Cleaning battery clamp and battery terminal

Cleaning battery clamp and battery terminal

Special tools and workshop equipment required

♦ contact surface cleaning set -VAS 6410-

NOTICE

Risk of damage to threaded connections when working with too high torque settings.

– The use of rust removers, contact sprays or greases is prohibited.

Removing

– Disconnect battery → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Check battery terminal clamp and battery terminal for corrosion and dirt.

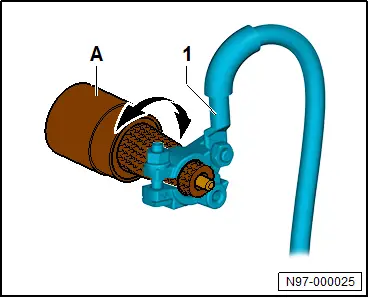

– Clean battery clamp -1- by rotating wire brush -A- from contact surface cleaning set -VAS 6410- back and forth -arrows-.

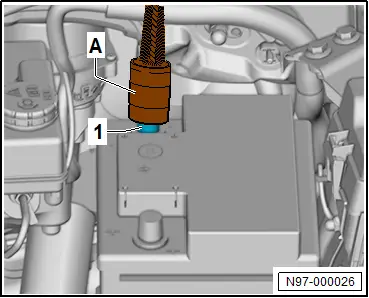

– Clean battery terminal -1- by rotating wire brush -A- from contact surface cleaning set back and forth.

Installing

Install in reverse order of removal, observing the following:

– → Electrical system; Rep. gr.27; Battery; Assembly overview – battery.

Anti-corrosion treatment of contact surfaces

Anti-corrosion treatment of contact surfaces

Important

● Use hose supplied with tin holding corrosion protection agent.

● Use anti-corrosion wax for cold areas.

→ Electronic parts catalogue (ETKA)

Important

● Use cavity sealant for warm areas → Electronic parts catalogue (ETKA).

Note

The agent will reach the affected area itself through capillary action.

Anti-corrosion treatment

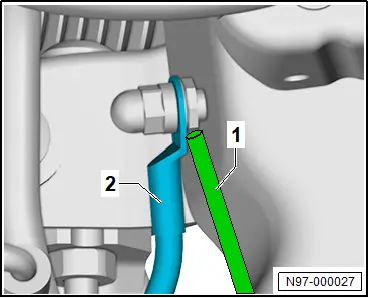

– Hold hose -1- of tin with corrosion protection agent under terminal -2-, and spray threaded connection all around.

Cleaning terminals

Cleaning terminals

Special tools and workshop equipment required

♦ contact surface cleaning set -VAS 6410-

Note

Use the grey sanding pads for light soiling and soft surfaces. Use the red sanding pads for heavy soiling and hard surfaces.

Removing

– Disconnect battery → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Unscrew cap nut.

– Remove terminal -2-.

– Check terminal -2- for corrosion and soiling.

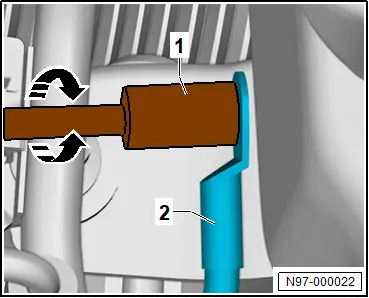

– Position adapter from contact surface cleaning set -VAS 6410- -1- in terminal -2-, and rotate it back and forth in direction of -arrows-.

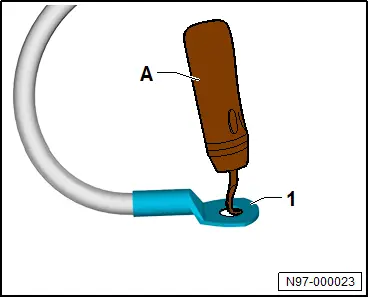

– Remove punching burr from terminal -1- using deburrer -A- from contact surface cleaning set.

Cleaning threaded connections

Cleaning threaded connections

Special tools and workshop equipment required

♦ contact surface cleaning set -VAS 6410-

Note

Use the grey sanding pads for light soiling and soft surfaces. Use the red sanding pads for heavy soiling and hard surfaces.

Removing

– Disconnect battery → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Unscrew terminal of respective threaded connection -1-.

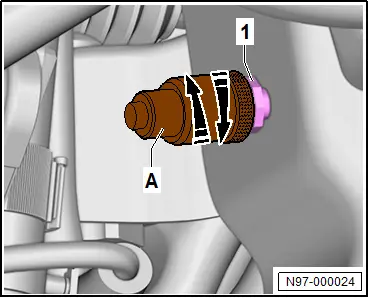

– Fit adapter -A- from contact surface cleaning set -VAS 6410- onto threaded connection -1-, and rotate it back and forth -arrows-.
