Volkswagen ID.3: Windscreen wipewash system. Rear window washer system

• Assembly overview – rear window washer system
• Removing and installing spray jet, rear window washer system

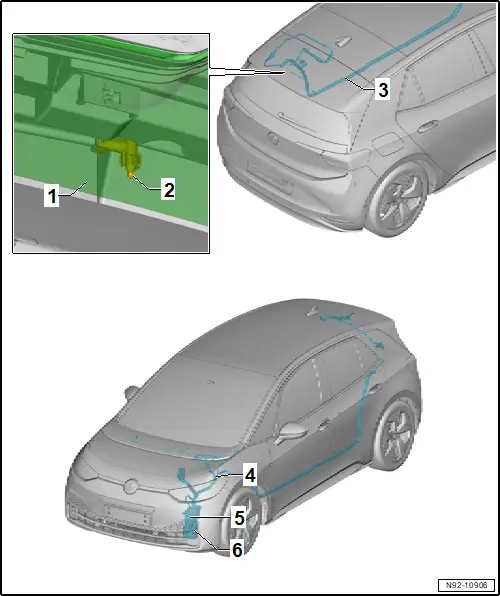

Assembly overview – rear window washer system

Assembly overview – rear window washer system

1 - Trim for rear spoiler

❏ → General body repairs, exterior; Rep. gr.66; Spoilers; Removing and installing spoiler trim

2 - Spray jet

❏ → Rep. gr.92; Removing and installing spray jet, rear window washer system

3 - Hose for washer fluid

❏ In left side panel to spray jet of rear window washer system

4 - Hose for washer fluid

❏ In engine compartment to spray jet of rear window washer system

5 - Washer fluid reservoir

❏ → Rep. gr.92; Removing and installing washer fluid reservoir

6 - Windscreen and rear window washer pump -V59-

❏ → Rep. gr.92; Removing and installing windscreen washer pump

❏ With sealing grommet

Removing and installing spray jet, rear window washer system

Removing and installing spray jet, rear window washer system

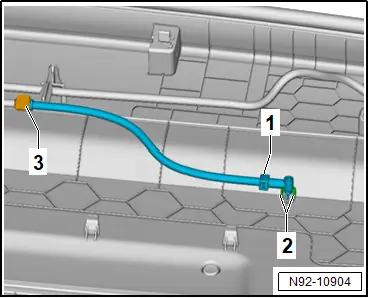

Removing

– Remove trim for rear spoiler → General body repairs, exterior; Rep. gr.66; Spoilers; Removing and installing spoiler trim.

– Release and pull off washer fluid hose -3-.

– Release fasteners -2-.

– Pull out spray jet -1-.

Installing

Install in reverse order of removal.
