Volkswagen ID.3: Instruments, GCI. Horn

• Assembly overview – horn
• Removing and installing horn or dual tone horn [H1]

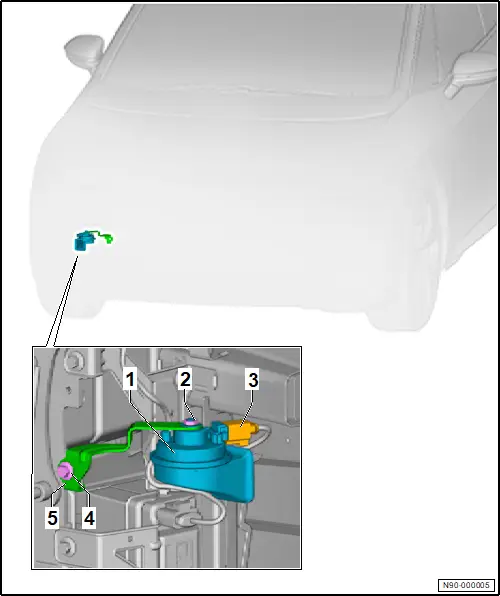

Assembly overview – horn

Assembly overview – horn

1 - Horn or dual tone horn -H1-

❏ → Rep. gr.90; Removing and installing horn or dual tone horn [H1]

2 - Nut

❏ 14 Nm

3 - Electrical connector

4 - Bolt

❏ 6 Nm

5 - Bracket for horn or dual tone horn -H1-

Removing and installing horn or dual tone horn [H1]

Removing and installing horn or dual tone horn [H1]

The horn or dual tone horn -H1- will henceforth be referred to as “horn”.

Removing

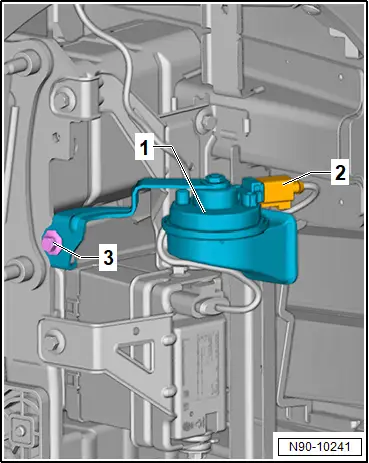

– Remove front right wheel housing liner → General body repairs, exterior; Rep. gr.66; Wheel housing liner; Removing and installing front wheel housing liner.

– Disconnect connector -2-.

– Unscrew bolt -3-.

– Remove horn -1-.

Installing

Install in the reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.90; Assembly overview – horn
