Assembly overview – multifunction steering wheel

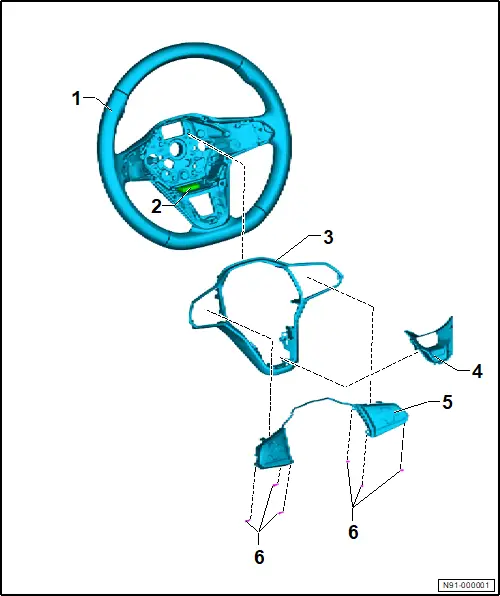

Assembly overview – multifunction steering wheel

1 - Steering wheel

❏ → Running gear, axles, steering; Rep. gr.48; Steering wheel; Removing and installing steering wheel

2 - Control unit for steering wheel contact detection -J1158-

❏ Depending on equipment/version

❏ → Rep. gr.91; Removing and installing control unit for steering wheel contact detection [J1158]

3 - Trim panel

❏ → Rep. gr.91; Removing and installing multifunction buttons [E440]/[E441]

4 - Trim panel at bottom

❏ Allocation: Electronic parts catalogue (ETKA)

❏ → Rep. gr.91; Removing and installing multifunction buttons [E440]/[E441]

5 - Multifunction buttons in steering wheel

❏ With multifunction buttons on left in steering wheel -E440- With multifunction steering wheel control unit -J453-

❏ With multifunction buttons on right in steering wheel -E441-

❏ → Rep. gr.91; Removing and installing multifunction buttons [E440]/[E441]

6 - Bolt

❏ Qty. 6

❏ 1.2 Nm
