Volkswagen ID.3: Specifications & Consumer information

Weight

The values for the curb weight in the following tables apply to a vehicle ready for operation. This includes a driver weighing 75 kg (approx. 165 lbs), fluids and tools and a replacement tire if applicable. Optional equipment and retrofitted equipment will increase the specified curb weight and reduce the possible load.

The load consists of the following weight:

• Passengers.

• All luggage inside and outside the Volkswagen ID.3 vehicle.

• Attachments.

The permitted total vehicle weight and the gross axle weight rating must never be exceeded. The permissible values are indicated on the safety compliance label or on the identification label on the B-pillar on the driver's side (→ Safety certificate) (→ Identification label) .

Performance

These values apply only in ideal road and weather conditions.

The performance was determined without equipment that limits performance, such as add-on parts.

Incline angle

The incline angle is the specification up to which the vehicle is able to drive uphill on an angle with its own power.

This can depend on the road conditions, the weather conditions, and the engine power, among other things. The values apply to a vehicle that is in motion and not to a vehicle that starts to drive form a stationary position.

A rising difference in altitude (incline) on a 100 m (approx. 300 ft) stretch is given in percentage or degrees (100% = 45 degrees).

• Structure of the vehicle identification number (VIN)
• Position of the vehicle identification number
• Dimensions

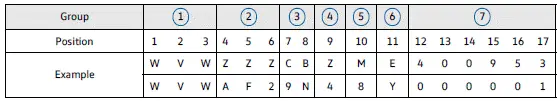

Structure of the vehicle identification number (VIN)

The Volkswagen ID.3 vehicle identification number (VIN, VIN ) consists of 17 characters. These characters can be sorted into seven groups.

The structure is explained using the following examples of vehicle identification numbers.

1. Vehicle manufacturer identification:

WVW

Volkswagen Passenger Vehicles

WVG

Volkswagen Passenger Vehicles

1VW

Volkswagen Group of America Inc., Volkswagen de México, S.A. de C.V

3VW

Volkswagen de México, S.A. de C.V

XW8

LLC Volkswagen Group Rus (Volkswagen/Skoda Kaluga)

MFB

Garuda Matraman Motor (Indonesia)

2. Filler characters: The filler characters may vary depending on manufacturer, or contain information on the body shape and transmission type.

3. Vehicle class, depending on model:

3H

Arteon

5T

Touran

6R

Polo

AC

T-Roc convertible

BV

Golf

CB

Passat

CA

Atlas

CR

Touareg

Depending on the manufacturer, digits 7 to 9 can also contain information on the fuel type( 7) and vehicle class (8 and 9).

4. Filler characters or check digits: The filler characters or check digits may vary depending on the manufacturer.

5. VIN index, depending on model year:

M

2021

N

2022

P

2023

R

2024

6. Production location, plant where the Volkswagen ID.3 vehicle was manufactured:

C

Volkswagen plant in Chattanooga

D

Volkswagen plant in Bratislava

E

Volkswagen plant in Emden

K

Volkswagen plant in Osnabrück Or: Volkswagen plant in Kaluga

M

Volkswagen plant in Puebla

P

Volkswagen plant in Zwickau

T

Volkswagen plant in Pune

U

Volkswagen plant in Uitenhage

V

Volkswagen plant in Palmela

W

Volkswagen plant in Wolfsburg

Y

Volkswagen plant in Pamplona

The letter assignment for the production site may vary depending on the Volkswagen ID.3 vehicle or be assigned twice.

7. Sequential production number for each model year.

Position of the vehicle identification number

Fig. 1 In the windshield: vehicle identification number (VIN)

Depending on the country, the type approval number, such as the EU operating license, may be specified.

1. Manufacturer code.

2. Type approval.

3. Volkswagen ID.3 Vehicle Identification number.

4. Gross Vehicle Weight Rating.

Gross combination weight rating (towing vehicle and trailer).

Front Gross Axle Weight Rating.

Rear Gross Axle Weight Rating.

5. Type approval number, differs according to country.

6. Vehicle model

7. Manufacturer's address.

8. Engine code.

Fig. 2 Identification label (general example): version 2.

Depending on the country, the type approval number, such as the EU operating license, may be specified.

1. Manufacturer code.

2. Type approval.

3. Volkswagen ID.3 Vehicle Identification number.

4. Gross Vehicle Weight Rating.

5. Gross combination weight rating (towing vehicle and trailer).

6. Front Gross Axle Weight Rating.

7. Rear Gross Axle Weight Rating.

Depending on the country and model, the model plate may be visible in the lower section of the door pillar when the driver's for front passenger door is open. Vehicles exported to some countries do not have a model plate.

Safety certificate

Fig. 1 Safety certificate (general example).

Fig. 2 Safety certificate (general example).

A safety certificate on the driver door pillar displays the following information:

• Vehicle model

• Manufacturer.

• Date of manufacture.

• Country of manufacture.

• Vehicle Identification number.

Dimensions

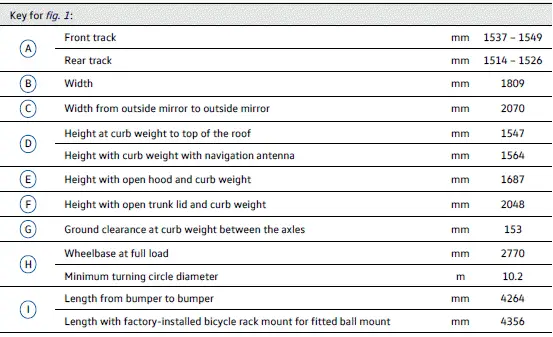

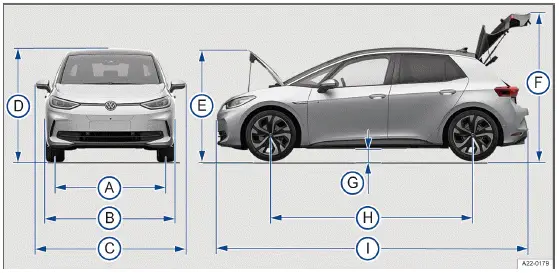

Fig. 1 Vehicle dimensions

The information in the table applies for the standard model with standard equipment.

For other wheel rims, tire sizes, options, differing model designs and retrofitted accessories, as well as special vehicles and vehicles in other countries, these values can differ.

Information about how the weight specifications are compiled can be found in section (→ Technical data) .

110 kW, 45 (55) kWh, rear-wheel drive, electric motor

Engine overview

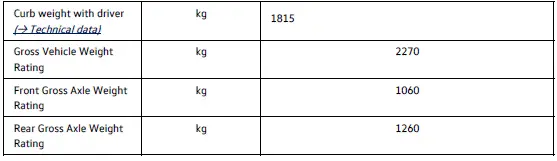

Weight specifications and axle loads

Trailer tongue weight rating

The maximum permissible trailer tongue weight rating for the bicycle rack mount is 55 kg or 75 kg depending on the Volkswagen ID.3 vehicle equipment. Note the information on the sign next to the mount for the bicycle rack mount behind the license plate holder

Carrying load for rear carrier systems

Carrying load for rear carrier systems

Engine overview

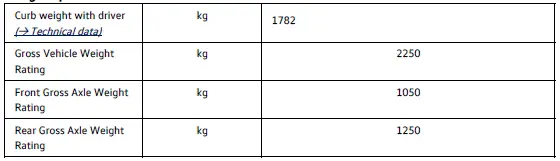

Weight specifications and axle loads

Trailer tongue weight rating

The maximum permissible trailer tongue weight rating for the bicycle rack mount is 55 kg or 75 kg depending on the Volkswagen ID.3 vehicle equipment. Note the information on the sign next to the mount for the bicycle rack mount behind the license plate holder.

Carrying load for rear carrier systems

150 kW, 77 (82) kWh, rear-wheel drive, electric motor

Engine overview

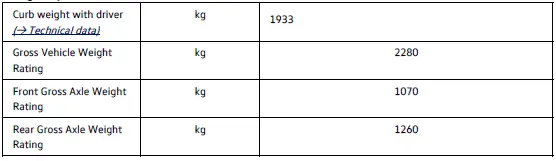

Weight specifications and axle loads

Trailer tongue weight rating

The maximum permissible trailer tongue weight rating for the bicycle rack mount is 55 kg or 75 kg depending on the Volkswagen ID.3 vehicle equipment. Note the information on the sign next to the mount for the bicycle rack mount behind the license plate holder.

Carrying load for rear carrier systems
