Volkswagen ID.3: Wheels, tyres. axle align. Wheel bolts

• Wheel bolts, versions
• Wheel bolts, anti-theft wheel bolt
• Wheel bolts, adapter sets for anti-theft wheel bolts

Wheel bolts, versions

Wheel bolts, versions

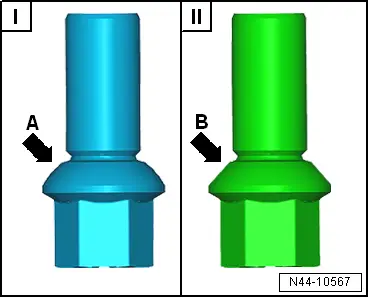

Explanations regarding shapes of the shoulders

There are two different versions of lug seats, the spherical seat and the conical seat.

The spherical seat is the curved surface of a section of a sphere -arrow A-. This type of lug seat is sometimes used for Genuine wheel rims.

The conical seat is the flat surface of a section of a cone -arrow B-. This form of lug seat is sometimes used for wheel rims of the accessories trade.

I - Wheel bolts with spherical shoulder

II - Wheel bolts with conical shoulder

Note

♦ Make sure that the correct wheel bolts are fitted. → Electronic parts catalogue (ETKA)

♦ For each vehicle, the same type of wheel bolts must be used on all four wheel rims.

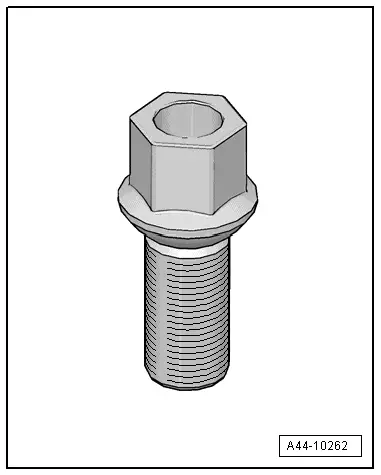

Standard, one-piece wheel bolt

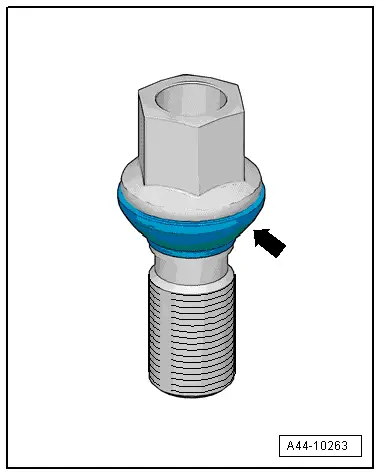

Two-piece wheel bolt with short rotary shoulder

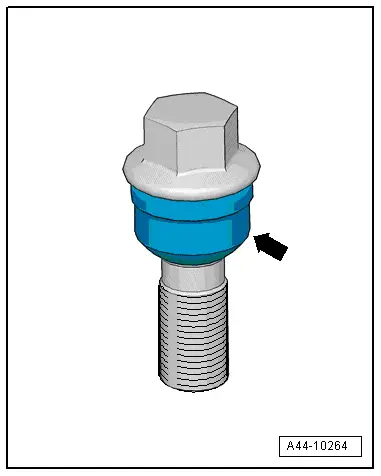

Two-piece wheel bolt with long rotary shoulder

Wheel bolts, anti-theft wheel bolt

Wheel bolts, anti-theft wheel bolt

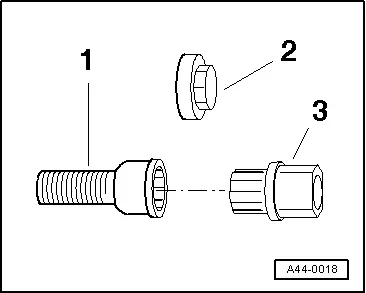

Anti-theft wheel bolt

1 - Anti-theft wheel bolt

2 - Cover

3 - Adapter for wheel bolt

Wheel bolts, adapter sets for anti-theft wheel bolts

Wheel bolts, adapter sets for anti-theft wheel bolts

Special tools and workshop equipment required

♦ Adapter set for wheel bolts -T10101-

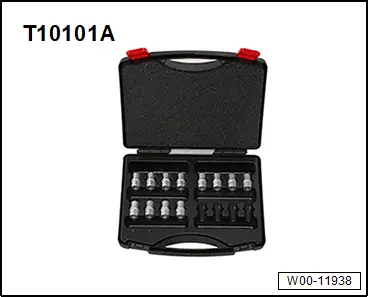

♦ Adapter set for wheel bolts -T10101 A-

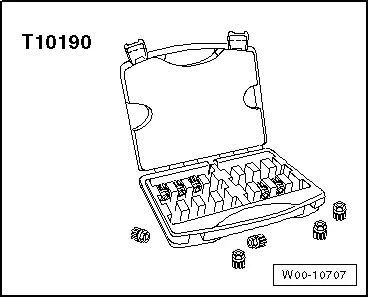

♦ Adapter set for wheel bolts -T10190-

♦ Adapter set for wheel bolts -T10313-

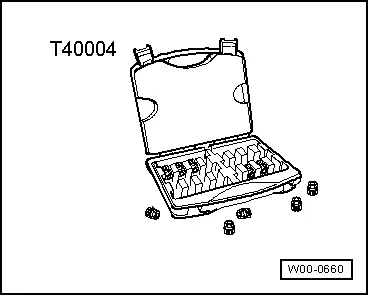

♦ Adapter set for wheel bolts -T40004-

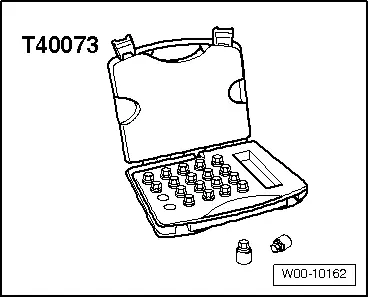

♦ Adapter set for wheel bolts -T40073-
