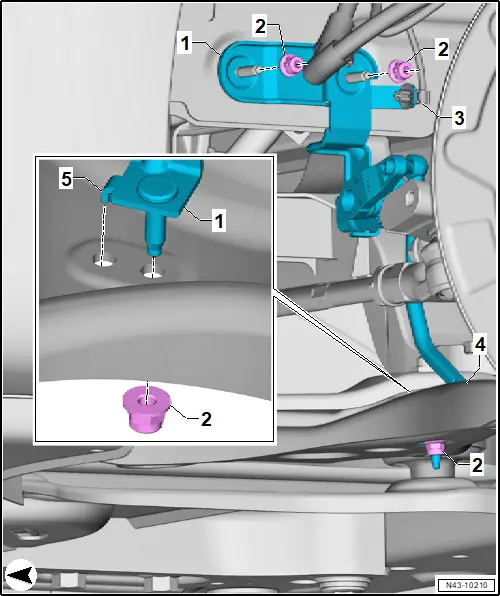

Exploded view - front vehicle level senders
The exploded view here applies to the left side of the vehicle.
1 - Front left vehicle level sender -G78- / front right vehicle level sender -G289-
❏ → Rep. gr.43; Removing and installing front vehicle level senders G78/G289
2 - Nut
❏ 2x
❏ 8 Nm
3 - Wire retainer
4 - Suspension link
❏ → Rep. gr.40; Exploded view - suspension links, swivel joint
❏ → Rep. gr.40; Removing and installing suspension link
5 - Guide

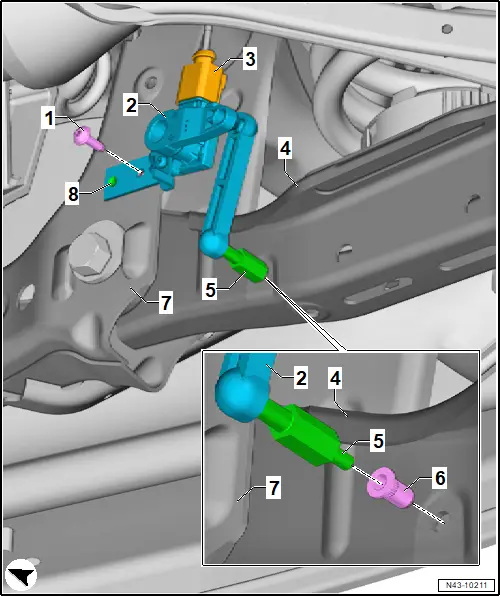

Assembly overview – rear vehicle level senders
Overview shown for left side of vehicle as an example
1 - Bolt
❏ 5 Nm
2 - Rear left vehicle level sender -G76-
❏ → Rep. gr.43; Removing and installing rear vehicle level senders [G76]/[G77]
3 - Electrical connector
4 - Spring control arm
❏ → Rep. gr.42; Assembly overview – spring control arm
❏ → Rep. gr.42; Removing and installing spring control arm
5 - Stud
❏ 3.5 Nm
6 - Pop rivet nut
7 - Subframe
❏ → Rep. gr.42; Assembly overview – subframe
❏ → Rep. gr.42; Fixing subframe in position
❏ → Rep. gr.42; Taking up weight of subframe using scissor-type assembly platform
❏ → Rep. gr.42; Removing and installing rear axle
8 - Locating device
Removing and installing front vehicle level senders [G78]/[G289]
Removing
Front left vehicle level sender -G78- and front right vehicle level sender -G289- will henceforth be referred to as “front vehicle level sender”.
Removal and installation are described for the left side of vehicle as an example.

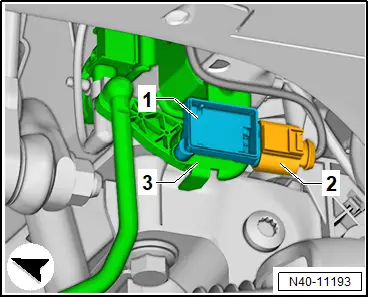

– Remove front body acceleration sender → Rep. gr.43; Removing and installing front body acceleration senders [G341]/[G342].
– Remove stone deflector for suspension link → Rep. gr.40; Removing and installing stone deflector for suspension link.
– Disconnect electrical connector -2-.
– Unscrew nuts -2-.
– Unclip wiring harness -3- from bracket -1-.
– Remove bracket -1- with front vehicle level sender.
Installing
Install in reverse order of removal, observing the following:
The lever of the front vehicle level sender -1- must point towards the outer side of the vehicle.
– Insert guide -5- of front vehicle level sender -1- into inner hole of suspension link -4-.
– Insert threaded end of front vehicle level sender -1- into outer hole of suspension link -4-.
– Carry out required function/functions using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.
Tightening torques
♦ → Rep. gr.43; Assembly overview – front vehicle level senders
♦ → Rep. gr.43; Assembly overview – electronically controlled damping
Removing and installing rear vehicle level senders [G76]/[G77]
Removing
Rear left vehicle level sender -G76- will henceforth be referred to as “rear vehicle level sender”.
Removal and installation are described for the left side of vehicle as an example.
– Remove stone deflector for spring control arm → Rep. gr.42; Removing and installing stone deflector for spring control arm.
– Disconnect electrical connector -3-.
– Unscrew bolt -1-.
– Unscrew stud -5- from spring control arm -4-.
– Remove rear vehicle level sender -2-.
Installing
Install in reverse order of removal, observing the following:
The lever of rear vehicle level sender must point to outer side of vehicle.
– Insert rear vehicle level sender -2- into guide -8- on subframe -7-.
– Carry out required function/functions using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.
Tightening torques
♦ → Rep. gr.43; Assembly overview – rear vehicle level senders
♦ → Rep. gr.42; Assembly overview – spring control arm
