Volkswagen ID.3: Front suspension, drive shafts. Lower suspension link, swivel joint

• Assembly overview – suspension link, swivel joint
• Removing and installing suspension link
• Removing and installing swivel joint
• Removing and installing stone deflector for suspension link
• Renewing suspension link mounting, rear
• Renewing front suspension link mounting

Assembly overview – suspension link, swivel joint

Assembly overview – suspension link, swivel joint

The overview is shown for the left side of the vehicle as an example.

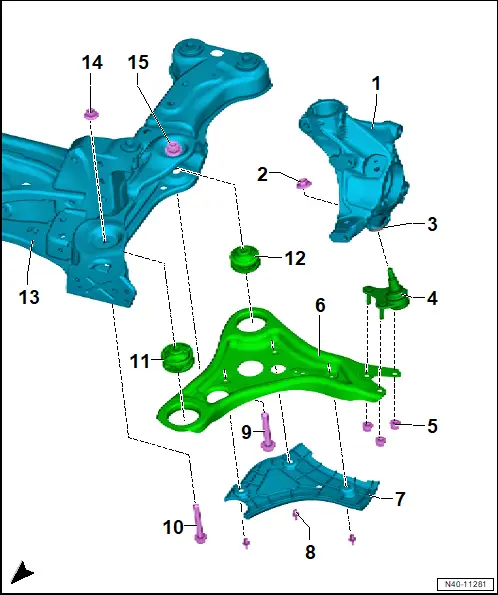

1 - Wheel bearing housing

❏ → Rep. gr.40; Assembly overview – wheel bearing

❏ → Rep. gr.40; Removing and installing wheel bearing housing

2 - Nut

❏ Renew after removing

❏ M12 × 1.5

❏ Nut M12: 60 Nm

❏ Nut M14: 110 Nm

3 - Bush

4 - Swivel joint

❏ → Rep. gr.40; Removing and installing swivel joint

5 - Nut

❏ Qty. 3

❏ Renew after removing

❏ Nut M10: 40 Nm + 45°

❏ Nut M12: 100 Nm

6 - Suspension link

❏ → Rep. gr.40; Removing and installing suspension link

7 - Stone deflector for suspension link

❏ → Rep. gr.40; Removing and installing stone deflector for suspension link

8 - Spreader rivet

❏ Qty. 3

9 - Bolt

❏ Renew after removing

❏ M14 × 1.5 × 85

❏ 130 Nm +180°

10 - Bolt

❏ Renew after removing

❏ M 12 × 1.5 × 80

❏ 70 Nm +180°

11 - Suspension link mounting, front

❏ → Rep. gr.40; Renewing front suspension link bush

12 - Suspension link mounting, rear

❏ → Rep. gr.40; Renewing suspension link bush, rear

13 - Subframe

❏ → Rep. gr.40; Assembly overview - subframe

14 - Nut

❏ Renew after removing

❏ M12 × 1.5

15 - Weld nut

Removing and installing suspension link

Removing and installing suspension link

Front left speed sensor -G47- and front right speed sensor -G45- will henceforth be referred to as “speed sensor”.

Front left vehicle level sender -G78- and front right vehicle level sender -G289- will henceforth be referred to as “vehicle level sender”.

Removal and installation are described for the left side of vehicle as an example.

Removing

– Remove wheel → Rep. gr.44; Removing and installing wheel.

– Remove stone deflector for suspension link → Rep. gr.40; Removing and installing stone deflector for suspension link.

Vehicles with vehicle level sender

– Remove vehicle level sender from suspension link → Rep. gr.43; Removing and installing front vehicle level sender [G78]/[G289].

All vehicles (continued)

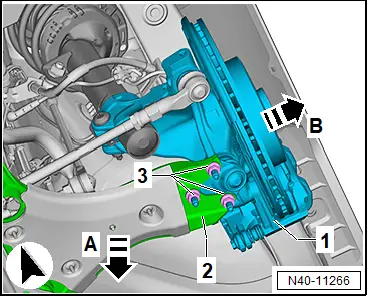

– Unscrew nuts -3-.

– Pull suspension link -2- downwards -arrow A- off swivel joint.

– Pull wheel bearing housing -1- outwards in direction of -arrow B-.

– Swing wheel bearing housing -1- outwards to relieve tension from suspension link -2-.

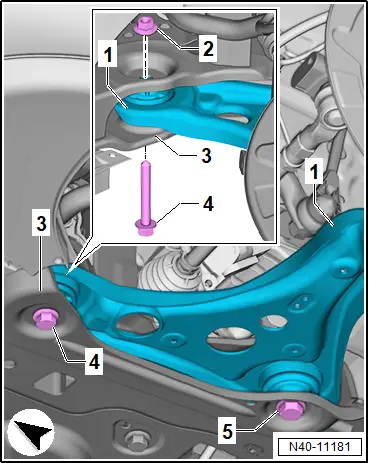

– Unscrew bolt -4- while counter-holding at nut -2-.

– Unscrew bolt -5-.

– Pull suspension link -1- out of subframe -3-.

Installing

Install in reverse order of removal, observing the following:

Vehicles with vehicle level sender

– Carry out required function/functions using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.

All vehicles (continued)

Tightening torques

♦ → Rep. gr.40; Assembly overview – suspension link, swivel joint

Removing and installing swivel joint

Removing and installing swivel joint

Special tools and workshop equipment required

♦ ball joint puller -3287A-

Front left vehicle level sender -G78- and front right vehicle level sender -G289- will henceforth be referred to as “vehicle level sender”.

Removal and installation are described for the left side of vehicle as an example.

Tools and auxiliary equipment required:

♦ Torx T40, commercially available

Removing

Vehicles with all-wheel drive:

– Loosen threaded connection of drive shaft → Running gear, axles, steering; Rep. gr.40; Drive shafts; Loosening and tightening threaded connections of drive shaft.

All vehicles (continued)

– Remove wheel → Rep. gr.44; Removing and installing wheel.

– Remove stone deflector for suspension link → Rep. gr.40; Removing and installing stone deflector for suspension link.

Vehicles with vehicle level sender

– Unbolt left vehicle level sender from suspension link → Rep. gr.43; Removing and installing front vehicle level sender [G78]/[G289].

All vehicles (continued)

Vehicles with all-wheel drive:

– Loosen threaded connection of drive shaft.

– Press drive shaft out of wheel bearing unit → Running gear, axles, steering; Rep. gr.40; Drive shaft; Removing and installing drive shaft.

All vehicles (continued)

– Unscrew nuts -3-.

– Pull suspension link -2- in direction of -arrow A- off swivel joint.

– Pull wheel bearing housing -1- in direction of -arrow B-.

– Swing wheel bearing housing -1- outwards to relieve tension from suspension link -2-.

– Push suspension link upwards.

– Loosen nut -4- of swivel joint -2- without unscrewing it completely.

Important

● To protect threads, nut -4- must remain screwed onto pin a few turns.

– Counterhold with commercially available Torx T40 in the process.

NOTICE

Damage to wheel bearing housing from loosened bushes due to incorrectly applied ball joint puller.

– Ball joint puller must be supported on bush and not on wheel bearing housing.

– Fit ball joint puller -3287A- -A- with bottom support against bush -3-.

– Press swivel joint -2- off wheel bearing housing -1- using ball joint puller -3287A- -A-.

– Unscrew nut -4-.

Installing

Install in reverse order of removal, observing the following:

Vehicles with front vehicle level sender

– Carry out required function/functions using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.

All vehicles (continued)

Tightening torques

♦ → Rep. gr.40; Assembly overview – suspension link, swivel joint

Removing and installing stone deflector for suspension link

Removing and installing stone deflector for suspension link

Removing

Removal and installation are described for the left side of vehicle as an example.

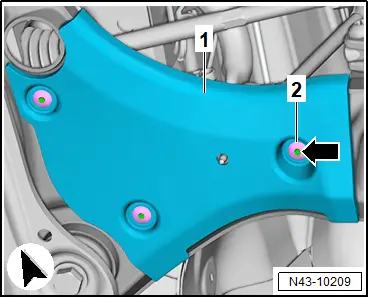

Spreader rivets with pins for pressing inwards

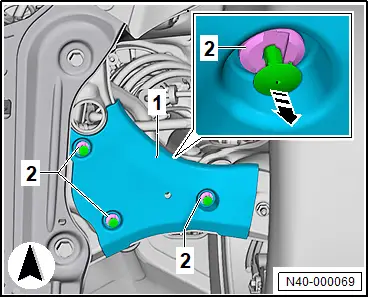

– Press pins -arrows- in all spreader rivets -2- inwards.

– Lever off spreader rivets with commercially available plastic wedge, and detach stone deflector for front suspension link -1-.

– Remove pins -arrows- from suspension link from above.

All vehicles (continued)

Spreader rivets with pins for pulling out

– Pull out pins -arrows- of all spreader rivets -2-.

– Lever off spreader rivets using commercially available plastic wedge, and detach stone deflector for suspension link -1-.

All vehicles (continued)

Installing

Install in reverse sequence of removal.

Renewing suspension link mounting, rear

Renewing suspension link mounting, rear

Special tools and workshop equipment required

♦ Guide sleeve -3053-

♦ Press tool -VW412-

♦ Thrust plate -VW401-

♦ Thrust plate -VW447i-

♦ Tube -3345-

Removing

– Remove suspension link → Rep. gr.40; Removing and installing suspension link.

– Note allocation of suspension link mountings.

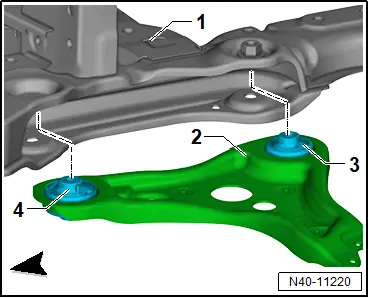

1 - Subframe

2 - Suspension link

3 - Rear suspension link mounting

4 - Front suspension link mounting

– Fit tools as shown in illustration. In the process, pay attention to correct orientation, and keep the tools straight.

– Press out rear suspension link mounting -5- as shown in illustration.

Important

● Bevelled edges of suspension link -1- point upwards when pressing out.

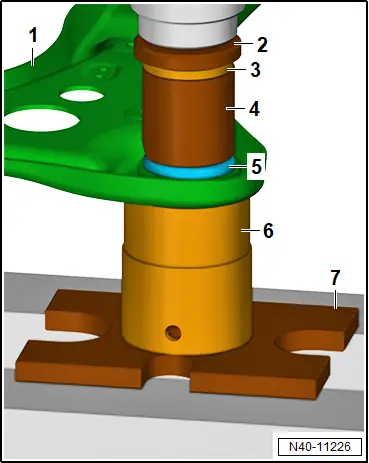

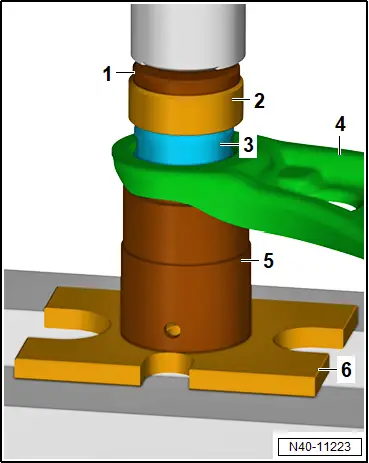

1 - Suspension link

2 - Press tool -VW412-

3 - Thrust plate -VW447i-

4 - Guide sleeve -3053-

5 - Rear suspension link mounting

6 - Tube -3345-

7 - Thrust plate -VW401-

Installing

– Observe specified press-in depth.

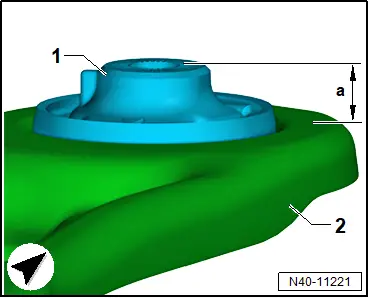

1 - Rear suspension link mounting

2 - Suspension link

Important

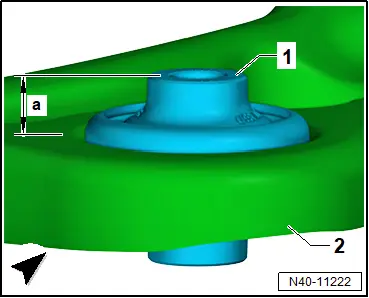

● Dimension -a- = 15.6 mm

– Press in rear suspension link mounting -4- as shown in illustration.

Important

● Bevelled edges of suspension link -5- point downwards when pressing in.

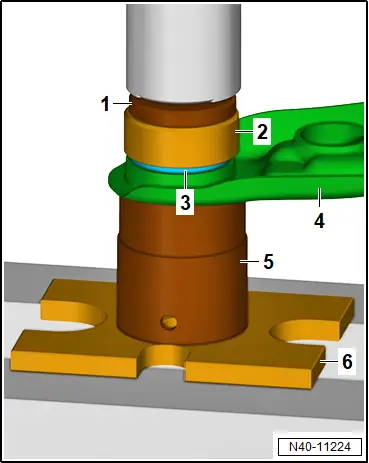

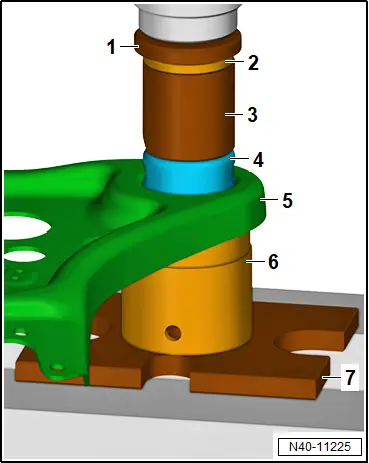

1 - Press tool -VW412-

2 - Thrust plate -VW447i-

3 - Guide sleeve -3053-

4 - Rear suspension link mounting

5 - Suspension link

6 - Tube -3345-

7 - Thrust plate -VW401-

– Install suspension link → Rep. gr.40; Removing and installing suspension link.

Renewing front suspension link mounting

Renewing front suspension link mounting

Special tools and workshop equipment required

♦ Assembly tool -3348-

♦ Press tool -VW412-

♦ Thrust plate -VW401-

♦ Tube -3345-

Removing

– Remove suspension link → Rep. gr.40; Removing and installing suspension link.

– Note allocation of suspension link mountings.

1 - Subframe

2 - Suspension link

3 - Rear suspension link mounting

4 - Front suspension link mounting

– Fit tools as shown in illustration. In the process, pay attention to correct orientation, and keep the tools straight.

– Press out front suspension link mounting -3- as shown in illustration.

Important

● Bevelled edges of suspension link -4- point upwards when pressing out.

1 - Press tool -VW412-

2 - Assembly tool -3348-

3 - Front suspension link mounting

4 - Suspension link

5 - Tube -3345-

6 - Thrust plate -VW401-

Installing

– Note installation position of front suspension link mounting -2-.

Important

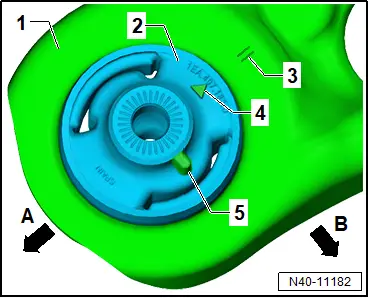

● Arrow -4- stamped on front suspension link mounting -2- must point between both markings -3- on front suspension link -1-.

● Cam -5- must point in direction of -arrow B- towards vehicle exterior.

● Direction of travel -arrow A-.

– Observe specified press-in depth.

1 - Front suspension link mounting

2 - Suspension link

Important

● Dimension -a- = 15.8 mm

– Press in front suspension link mounting -3- as shown in illustration.

Important

● Bevelled edges of suspension link -4- point downwards when pressing in.

1 - Press tool -VW412-

2 - Assembly tool -3348-

3 - Front suspension link mounting

4 - Suspension link

5 - Tube -3345-

6 - Thrust plate -VW401-

– Install suspension link → Rep. gr.40; Removing and installing suspension link.
