Volkswagen ID.3: Front suspension, drive shafts. Front axle

• Overview of fitting locations – front axle, rear-wheel drive

Overview of fitting locations – front axle, rear-wheel drive

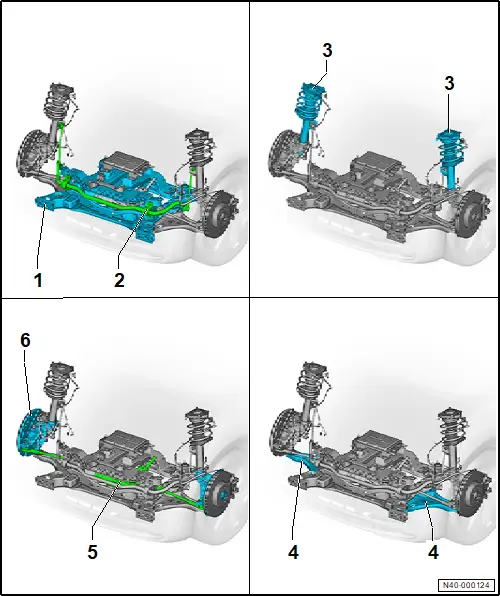

Overview of fitting locations – front axle, rear-wheel drive

1 - Subframe

❏ → Rep. gr.40; Assembly overview – subframe

❏ → Rep. gr.40; Removing and installing subframe with steering rack

❏ → Rep. gr.40; Fixing subframe in position

2 - Anti-roll bar

❏ → Rep. gr.40; Assembly overview – anti-roll bar

❏ → Rep. gr.40; Removing and installing anti-roll bar

3 - Suspension strut

❏ → Rep. gr.40; Assembly overview – suspension strut

❏ → Rep. gr.40; Removing and installing suspension strut

4 - Suspension link, swivel joint

❏ → Rep. gr.40; Assembly overview – suspension link, swivel joint

❏ → Rep. gr.40; Removing and installing suspension link

❏ → Rep. gr.40; Removing and installing swivel joint

5 - Steering rack

❏ → Rep. gr.48; Assembly overview – steering rack

❏ → Rep. gr.48; Removing and installing steering rack

6 - Wheel bearings

❏ → Rep. gr.40; Assembly overview – wheel bearing

❏ → Rep. gr.40; Removing and installing wheel bearing housing

❏ → Rep. gr.40; Removing and installing wheel bearing unit
