Volkswagen ID.3: ABS, ADR, TCS, EDL, ESP. Sensors

• Assembly overview – speed sensor on front axle
• Assembly overview – speed sensors on rear axle
• Removing and installing speed sensor on front axle [G45]/[G47]
• Removing and installing speed sensor on rear axle [G44]/[G46]
• Checking ABS sensor ring

Assembly overview – speed sensor on front axle

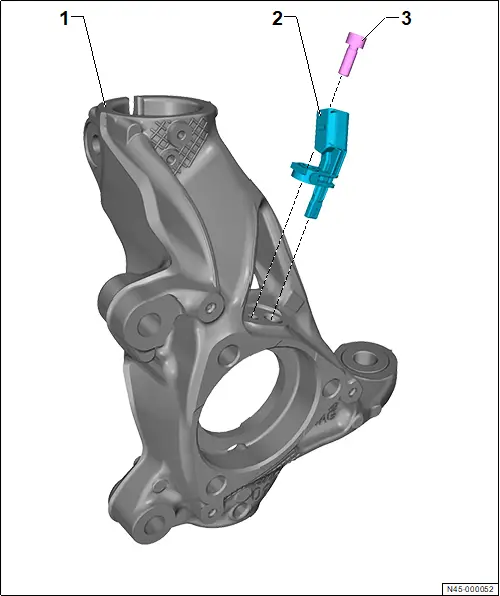

Assembly overview – speed sensor on front axle

The overview is shown for the left side of the vehicle as an example.

1 - Wheel bearing housing

2 - Front left speed sensor -G47-/front right speed sensor -G45-

❏ → Rep. gr.45; Removing and installing speed sensor on front axle [G45]/[G47]

3 - Bolt

❏ 8 Nm

Assembly overview – speed sensors on rear axle

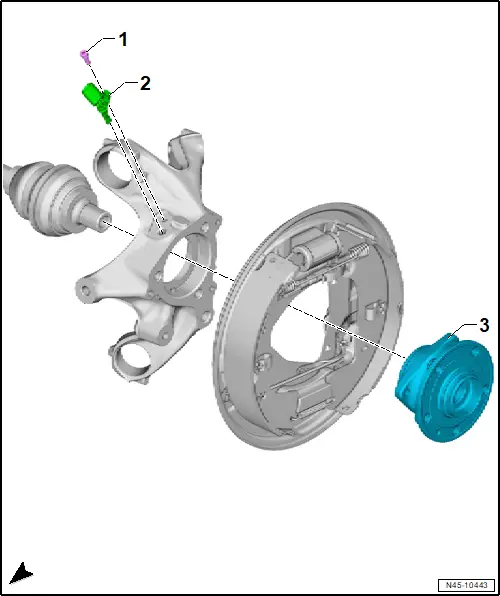

Assembly overview – speed sensors on rear axle

Overview is shown for left side of vehicle as an example

1 - Bolt

❏ 8 Nm

2 - Rear left speed sensor -G46-/rear right speed sensor -G44-

❏ → Rep. gr.45; Removing and installing speed sensor on rear axle [G44]/[G46]

3 - Wheel bearing unit

❏ With ABS sensor ring

❏ → Rep. gr.45; Checking ABS sensor ring

❏ → Running gear, axles, steering; Rep. gr.42; Wheel bearing, trailing arm; Removing and installing wheel bearing unit

Removing and installing speed sensor on front axle [G45]/[G47]

Removing and installing speed sensor on front axle [G45]/[G47]

Removing

Front right speed sensor -G45- and front left speed sensor -G47- are referred to hereafter as speed sensor.

Removal and installation are described for the left side of vehicle as an example.

– Raise vehicle.

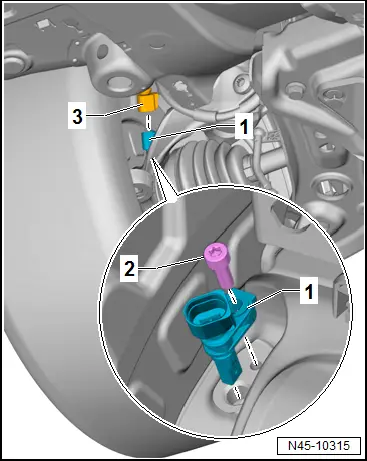

– Disconnect electrical connector -3- from speed sensor -1-.

– Unscrew bolt -2-, and pull speed sensor -1- out of wheel bearing housing.

Installing

Install in reverse order of removal, observing the following:

– Before inserting speed sensor, clean inner surface of hole, and coat speed sensor all-round with high-temperature paste → Electronic parts catalogue (ETKA).

→ Rep. gr.45; Assembly overview – speed sensor on front axle

Removing and installing speed sensor on rear axle [G44]/[G46]

Removing and installing speed sensor on rear axle [G44]/[G46]

Removing

Removal and installation are described for the left side of vehicle as an example.

Rear right speed sensor -G44- and rear left speed sensor -G46- are referred to hereafter as rear speed sensor.

– Raise vehicle.

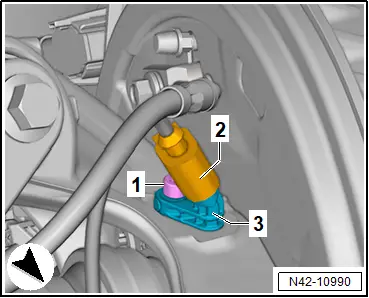

– Disconnect electrical connector -2- from speed sensor -3-.

– Unscrew bolt -1-, and pull speed sensor -3- out of wheel bearing housing.

Installing

Install in reverse order of removal, observing the following:

– Before inserting rear speed sensor, clean inner surface of hole, and coat rear speed sensor all-round with high-temperature paste → Electronic parts catalogue (ETKA).

Tightening torques

♦ → Rep. gr.45; Assembly overview – speed sensors on rear axle

Checking ABS sensor ring

Checking ABS sensor ring

Special tools and workshop equipment required

♦ Sensor gauge for -T10473-

– Remove wheel bearing unit:

♦ Front wheel bearing unit → Running gear, axles, steering; Rep. gr.40; Wheel bearing; Removing and installing wheel bearing unit

♦ Rear wheel bearing unit → Running gear, axles, steering; Rep. gr.42; Wheel bearing, trailing arm; Removing and installing wheel bearing unit

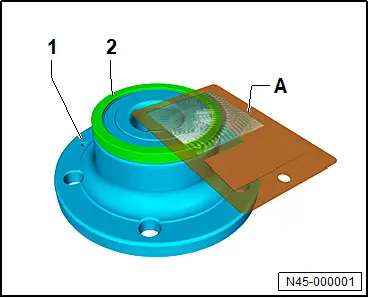

– Use sensor gauge -T10473- -A- to check ABS sensor ring -2- on wheel bearing unit -1- all around.

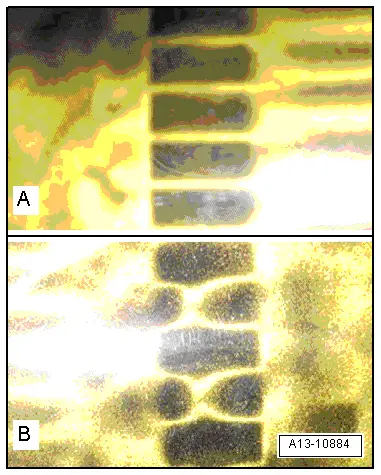

Test pattern for ABS sensor ring

A - ABS sensor ring is OK

B - ABS sensor ring is defective
