Overview of fitting locations – ABS/ESP

Overview of fitting locations – ABS/ESP

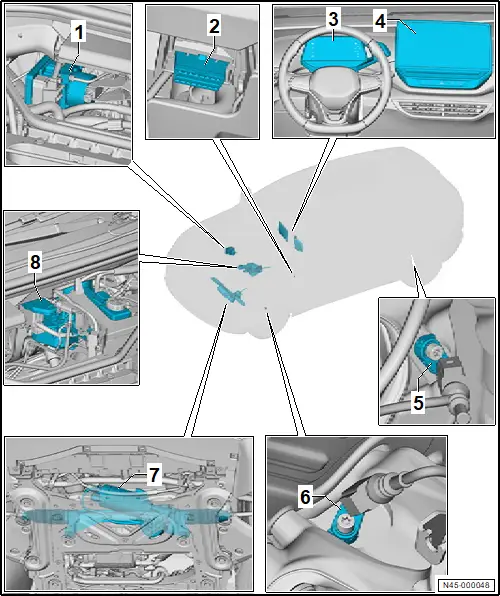

Overview shows left-hand drive vehicle as an example

1 - ABS control unit -J104-/ABS hydraulic unit -N55-

❏ Fitting location for right-hand drive vehicles: in vehicle front end on front passenger side

❏ → Rep. gr.45; Assembly overview – control unit and hydraulic unit

❏ → Rep. gr.45; Removing and installing ABS control unit [J104]/ABS hydraulic unit [N55]

2 - Diagnostic connection

3 - Control unit with display unit for driver information system -J1254-

❏ With brake pad warning lamp -K32-

❏ With ABS warning lamp -K47-

❏ With TCS and ESP button -K155-

❏ With brake system warning lamp -K118-

❏ → Electrical system; Rep. gr.90; Dash panel insert; Removing and installing control unit with display unit for driver information system [J1254]

4 - Display unit for front information display and operating unit control unit -J685-

❏ → Communication; Rep. gr.91; Components/control units; Removing and installing control unit for front display and information control panel [J685]

5 - Rear right speed sensor -G44-/rear left speed sensor -G46-

❏ → Rep. gr.45; Assembly overview – speed sensors on rear axle

❏ → Rep. gr.45; Removing and installing speed sensor on rear axle [G44]/[G46]

6 - Front right speed sensor -G45-/front left speed sensor -G47-

❏ → Rep. gr.45; Assembly overview – speed sensor on front axle

❏ → Rep. gr.45; Removing and installing speed sensor on front axle [G45]/[G47]

7 - Power steering control unit -J500-

❏ With steering angle sender -G85- in steering rack

❏ Cannot be replaced individually

❏ G85

❏ → Running gear, axles, steering; Rep. gr.48; Steering rack; Removing and installing steering rack, all-wheel drive

❏ → Running gear, axles, steering; Rep. gr.48; Steering rack; Removing and installing steering rack, rear-wheel drive

8 - Brake servo

❏ → Rep. gr.47; Assembly overview – brake servo/brake master cylinder

❏ → Rep. gr.47; Removing and installing brake servo
