Volkswagen ID.3: Electric drive. Potential equalisation lines

• Overview of fitting locations – potential equalisation lines
• Overview of fitting locations – potential equalisation lines

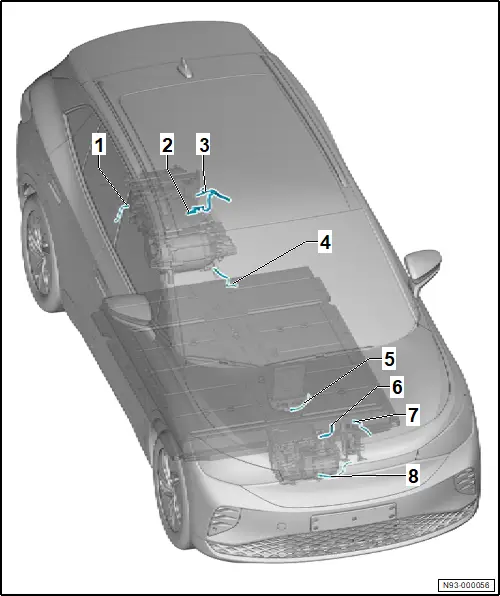

Overview of fitting locations – potential equalisation lines

Overview of fitting locations – potential equalisation lines

1 - Potential equalisation voltage converter -A19-

❏ → Rep. gr.93; Assembly overview – voltage converter

2 - Potential equalisation three-phase current drive -VX54-

❏ → Rep. gr.93; Assembly overview – electric drive motor, rear motor

3 - Potential equalisation charging unit 1 for high-voltage battery -AX4-

❏ → Rep. gr.93; Assembly overview – charging unit for high-voltage battery

4 - Potential equalisation of high-voltage battery 1 -AX2-

❏ → Rep. gr.93; Assembly overview – high-voltage battery, removed

5 - Potential equalisation high-voltage heater (PTC) -ZX17-

❏ → Heating, air conditioning; Rep. gr.87; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]

6 - Potential equalisation three-phase current drive 2 -VX97-

❏ → Rep. gr.93; Assembly overview – electric drive motor, front motor

7 - Potential equalisation heater element (PTC) 3 -Z132-

❏ → Heating, air conditioning; Rep. gr.87; Coolant circuit; Removing and installing PTC heater element 3 [Z132], all-wheel drive

8 - Potential equalisation air conditioner compressor -VX81-

❏ → Heating, air conditioning system; Rep. gr.87; Air conditioner compressor; Assembly overview – air conditioner compressor

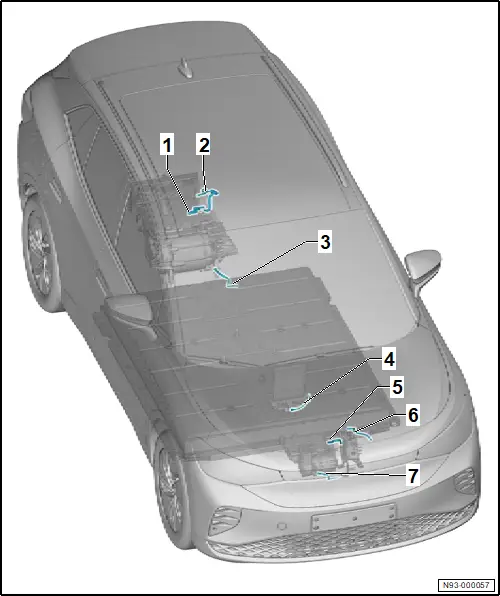

Overview of fitting locations – potential equalisation lines

Overview of fitting locations – potential equalisation lines

1 - Potential equalisation three-phase current drive -VX54-

❏ → Rep. gr.93; Assembly overview – electric drive motor, rear motor

2 - Potential equalisation charging unit 1 for high-voltage battery -AX4-

❏ → Rep. gr.93; Assembly overview – charging unit for high-voltage battery

3 - Potential equalisation of high-voltage battery 1 -AX2-

❏ → Rep. gr.93; Assembly overview – high-voltage battery, removed

4 - Potential equalisation high-voltage heater (PTC) -ZX17-

❏ → Heating, air conditioning; Rep. gr.87; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]

5 - Potential equalisation voltage converter -A19-

❏ → Rep. gr.93; Assembly overview – voltage converter

6 - Potential equalisation heater element (PTC) 3 -Z132-

❏ → Heating, air conditioning; Rep. gr.87; Coolant circuit; Removing and installing PTC heater element 3 [Z132], rear-wheel drive

7 - Potential equalisation air conditioner compressor -VX81-

❏ → Heating, air conditioning system; Rep. gr.87; Air conditioner compressor; Assembly overview – air conditioner compressor
