Volkswagen ID.3: Air conditioner. Overview of fitting locations

• Overview of fitting locations - components not located in vehicle interior
• Overview of fitting locations – components in vehicle interior

Overview of fitting locations - components not located in vehicle interior

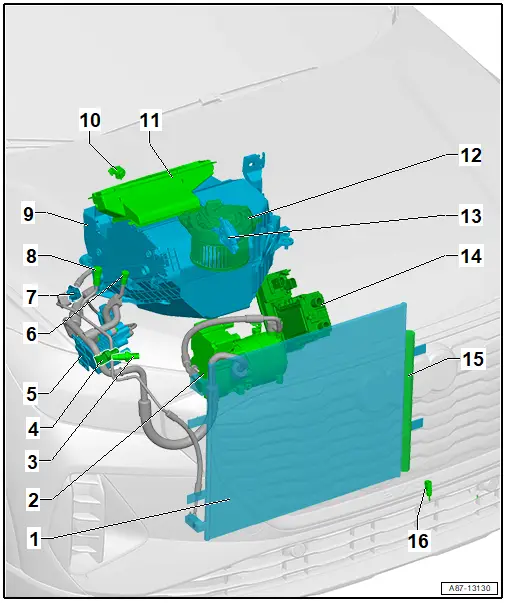

Overview of fitting locations - components not located in vehicle interior

1 - Condenser

❏ → Rep. gr.87; Assembly overview - condenser

❏ → Rep. gr.87; Removing and installing condenser

2 - Air conditioner compressor -VX81-

❏ With electrical air conditioner compressor -V470- and control unit for air conditioner compressor -J842-

❏ → Rep. gr.87; Removing and installing air conditioner compressor VX81

3 - Pressure sender for refrigerant circuit -G805-

❏ → Rep. gr.87; Removing and installing pressure sender for refrigerant circuit G805

4 - Refrigerant pressure and temperature sender -G395-

❏ → Rep. gr.87; Removing and installing refrigerant pressure and temperature sender G395

5 - Heat exchanger for high-voltage battery with refrigerant expansion valve 1 -N636-

❏ → Rep. gr.87; Removing and installing heat exchanger for high-voltage battery

6 - Service connection (low-pressure side)

❏ → Rep. gr.87; Removing and installing evacuating and charging valve (low-pressure and high-pressure sides)

7 - Refrigerant shut-off valve for heater and air conditioning unit -N541-

❏ → Rep. gr.87; Removing and installing refrigerant shut-off valve for heater and air conditioning unit N541

8 - Service connection (high-pressure side)

❏ → Rep. gr.87; Removing and installing evacuating and charging valve (low-pressure and high-pressure sides)

9 - Air intake box of heater and air conditioning unit

❏ → Rep. gr.87; Removing and installing air intake box of heater and air conditioning unit

10 - External air quality and air humidity sensor -G935-

❏ → Rep. gr.87; Removing and installing external air quality and air humidity sensor G935

11 - Fresh air intake

❏ → Rep. gr.87; Removing and installing fresh air intake

12 - Fresh air blower control unit -J126-

❏ → Rep. gr.87; Removing and installing fresh air blower control unit J126

13 - Control motor for fresh air and air recirculation flap -VX96-

❏ → Rep. gr.87; Removing and installing control motor for fresh air and air recirculation flap VX96

14 - PTC heater element 3 -Z132-

❏ → Rep. gr.87; Removing and installing heater element 3 Z132

15 - Desiccant bag

❏ → Rep. gr.87; Removing and installing desiccant bag/dryer

16 - Ambient temperature sensor -G17-

❏ → Rep. gr.87; Removing and installing ambient temperature sensor G17

Overview of fitting locations – components in vehicle interior

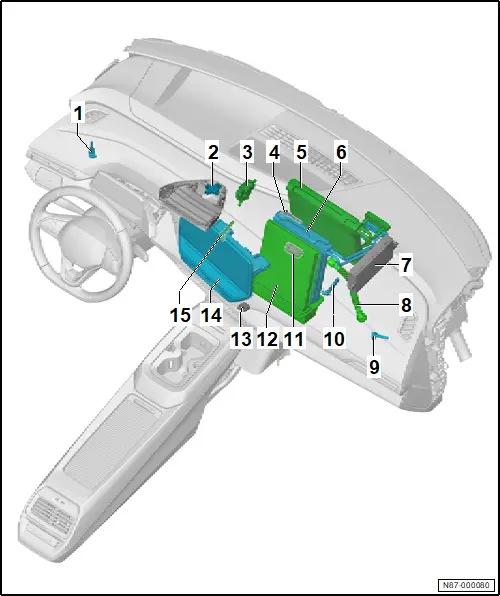

Overview of fitting locations – components in vehicle interior

Overview shows left-hand drive vehicle as an example

1 - Left vent temperature sender -G150-

❏ → Rep. gr.87; Removing and installing left vent temperature sender [G150[

2 - Rain and light sensor -G397-

❏ With humidity sender for air conditioning system -G260-

❏ With photosensor -G107-

❏ → Electrical system; Rep. gr.92; Windscreen wiper system; Removing and installing rain and light sensor [G397]

3 - Control motor

❏ Shown as an example for all control motors

❏ → Rep. gr.87; Overview of fitting locations - front control motors

4 - Evaporator temperature sensor -G308-

❏ → Rep. gr.87; Removing and installing evaporator temperature sensor [G308]

5 - Heat condenser

❏ Depending on equipment/version

❏ → Rep. gr.87; Removing and installing heat condenser

6 - Evaporator

❏ → Rep. gr.87; Removing and installing evaporator

7 - Heater and air conditioning system control unit -J979-

❏ Right-hand drive vehicle: mirror image

❏ → Rep. gr.87; Removing and installing heater and air conditioning system control unit [J979]

8 - Condensation drain hose

❏ → Rep. gr.87; Checking condensation drain

❏ → Rep. gr.87; Removing and installing condensation drain

9 - Right vent temperature sender -G151-

❏ → Rep. gr.87; Removing and installing right vent temperature sender [G151]

10 - Right footwell vent temperature sender -G262-

❏ → Rep. gr.87; Removing and installing right footwell vent temperature sender [G262]

11 - Sensor for interior carbon dioxide concentration -G929-

❏ Depending on equipment/version

❏ → Rep. gr.87; Removing and installing sensor for interior carbon dioxide concentration [G929]

12 - High-voltage heater (PTC) -ZX17-

❏ With high-voltage heater (PTC) control unit -J848-

❏ With high-voltage heater (PTC) -Z115-

❏ → Rep. gr.87; Removing and installing high voltage heater (PTC) [ZX17]

13 - Vehicle interior temperature sensor -G1090-

❏ → Rep. gr.87; Removing and installing vehicle interior temperature sensor [G1090]

14 - Display unit for front information display and operating unit control unit -J685-

❏ → Rep. gr.87; Removing and installing display unit for front information display and operating unit control unit [J685]

15 - Left footwell vent temperature sender -G261-

❏ → Rep. gr.87; Removing and installing left footwell vent temperature sender [G261]
