Volkswagen ID.3: Vehicle-specific paintwork information. Masked sectors
Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / Vehicle-specific paint information / Vehicle-specific paintwork information. Masked sectors
Masking areas, front body
Masking areas, front body

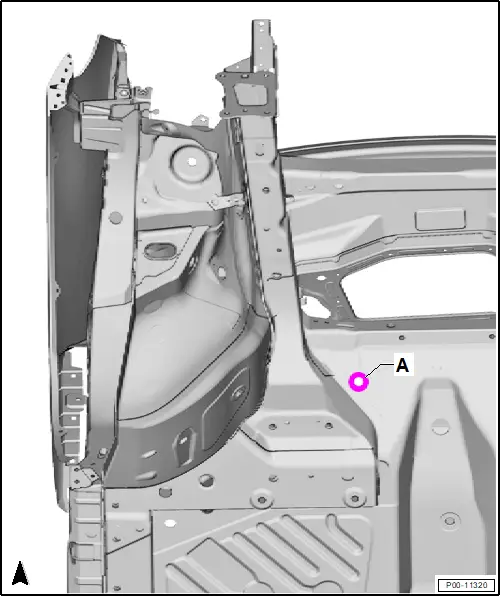

Vehicle front end, centre
Important
● Keep marked areas for threads and contact surfaces -A- free of sealant and wax.
.webp)
Masking areas, rear body
Masking areas, rear body

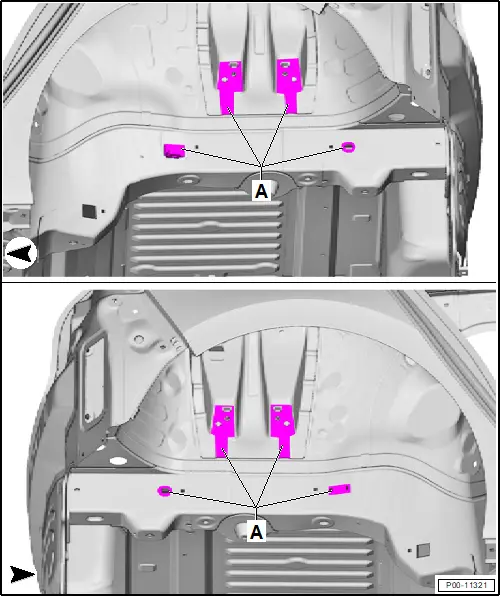

Rear left and right wheel housing
Important
● Keep marked areas for threads and contact surfaces -A- free of sealant and wax.
.webp)

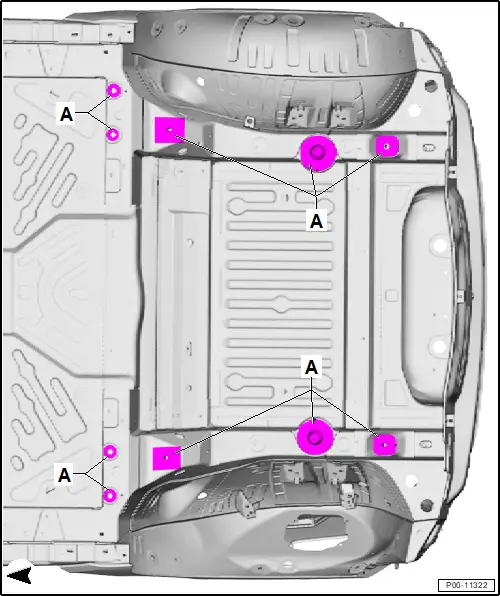

Underbody
Important
● Keep marked areas for threads and contact surfaces -A- free of sealant and wax.
.webp)
Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual
Vehicle-specific paintwork information. Masked sectors
