Volkswagen ID.3: Vehicle-specific paintwork information. Explanation of symbols

• Seam sealing

Seam sealing

Seam sealing

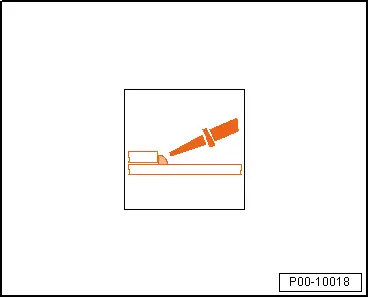

Sealing

– Apply sealant to marked areas.

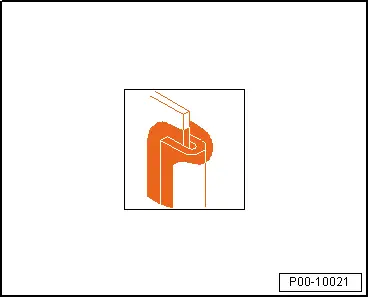

Fine seam sealing

– Fine seam seals in the marked areas require that the sealant extends at least 3 mm from the seam and must have a height of 2 mm.

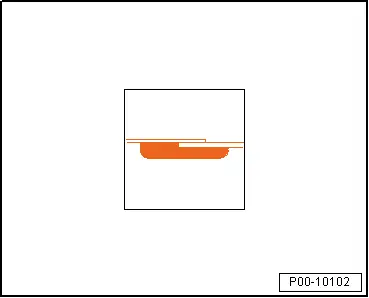

Coarse seam seals

– Coarse seam seals in the marked areas require that the sealant extends at least 20 mm from the seam and must have a height of 2 mm.

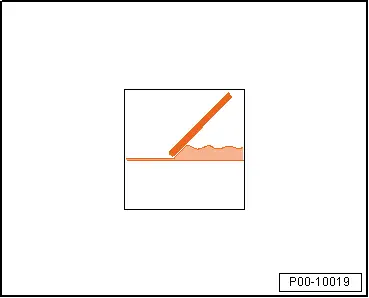

Smoothing seals

– Once sealant has been applied, marked areas must be smoothed.

Important

● When smoothing the sealing seam, make sure that the sheet metal edges which are to be protected are not exposed. The metal must be covered with a sufficiently thick layer of PVC.

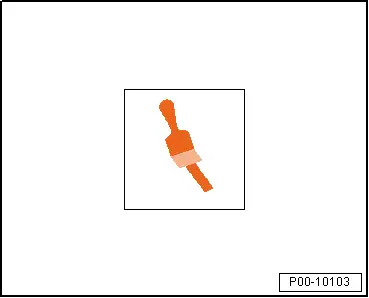

Brushing seals

– Following application, brush sealant in the marked areas to uniformly cover surface.

Important

● When brushing the sealing seam, make sure that the sheet metal edges which are to be protected are not exposed and that the metal is covered with a sufficiently thick layer of PVC.

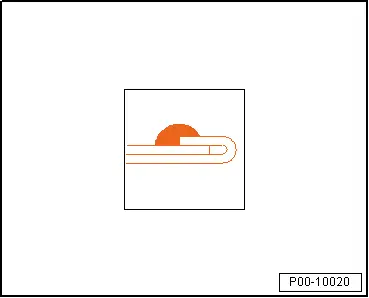

Sealing the folded seam groove

– The marked areas must be closed following application of sealant to the folded seam groove.

Important

● When brushing the sealing seam, make sure that the sheet metal edges which are to be protected are not exposed. The metal must be covered with a sufficiently thick layer of PVC so that the groove in the folded seam remains closed.
