Volkswagen ID.3: General information, Body. Noises

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General information – body / General information, Body. Noises

Overview of fitting locations – vibration damper film
Overview of fitting locations – noise insulation
Locating noises
Locating noises using audio recordings
Checklist - locating noises

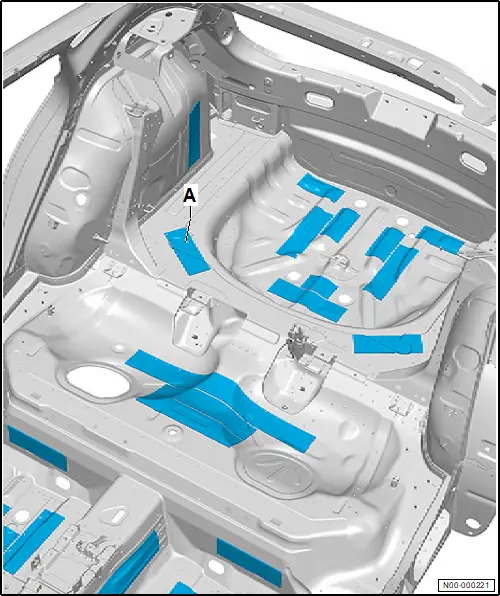

Overview of fitting locations – vibration damper film

Overview shows a body-in-white as an example.

A - Vibration damper film

❏ Installed at various locations in the vehicle

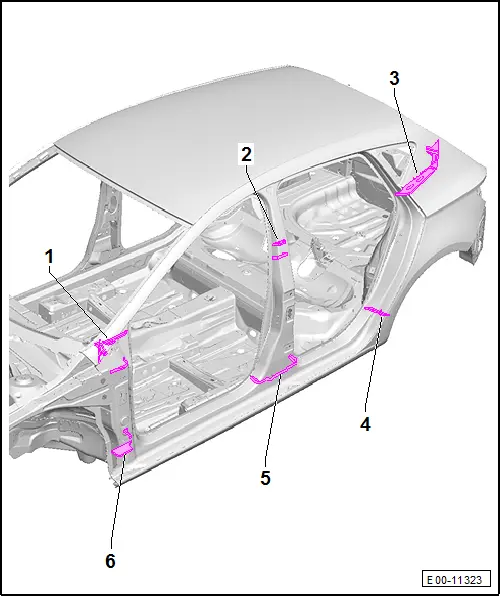

Overview of fitting locations – noise insulation

The overview is shown for the left side of the vehicle as an example.

1 - Noise insulation on A-pillar

❏ Upper section

2 - Noise insulation on B-pillar

❏ Upper section

3 - Noise insulation on C-pillar

❏ Upper section

4 - Noise insulation on C-pillar

❏ Lower section

5 - Noise insulation on B-pillar

❏ Lower section

6 - Noise insulation on A-pillar

❏ Lower section

Locating noises

Special tools and workshop equipment required

♦ endoscope -VAS 6748B-

Procedure

– Complete → Rep. gr.52; Check list for locating noises together with vehicle user.

– Observe Technical Product Information (TPIs).

– Locate noise.

Observe the following aspects:

♦ Other sources of noise

♦ Hearing acuity

♦ Circumstances in which the noise occurs

♦ New, unknown vehicle model

Note

The order of the localisation can be changed according to experience.

Important

● Make a note of the ambient conditions at the time the noise occurs.

– Divide vehicle into quadrants to narrow down origin.

– Distinguish noises according to characteristics:

♦ High or low frequency

♦ Short or long lasting noise

♦ Periodic or continuous noise

♦ Composite noises, a primary noise and an additional, less relevant noise that causes another object to vibrate

♦ Metallic or plastic-like noise

– Determine when the noise occurs.

If the noise could not be identified:

– Match noises based on similarities with other non-automotive noises, using the → noise database.

Note

The → noise database is stored in the manufacturer's information medium (Partner Portal/ServiceNet) or in the importer's information medium.

Continued

If the noise could not be located:

Note

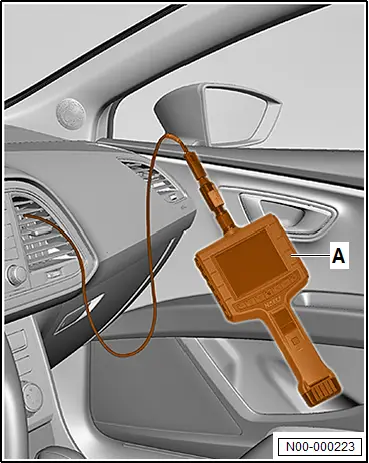

The endoscope -VAS 6748B- -A- can be used to avoid major disassembly.

– Insert camera of endoscope -A- into air duct to check air flaps.

– Observe → operating instructions.

Continued

If the noise could not be located:

– → Rep. gr.52; Locate noises using audio recordings.

Continued

If the noise has been identified:

– Complete → Rep. gr.52; Check list for locating noises entirely.

Locating noises using audio recordings

Sound frequencies are played from the vehicle's loudspeaker system to make components that generate noise vibrate.

This method can be used when the vehicle is stationary and focuses on the areas of the doors, trims and speakers.

Downloading audio recordings

– Download WAV files and CD cover from the importer's website onto data storage device.

If the WAV files cannot be downloaded:

– Contact importer.

Continued

– Sort WAV files in the following order:

♦ 01 Music

♦ 02 50 Hz sine wave

♦ 03 60 Hz sine wave

♦ 04 70 Hz sine wave

♦ 05 80 Hz sine wave

♦ 06 90 Hz sine wave

♦ 07 100 Hz sine wave

♦ 08 110 Hz sine wave

♦ 09 120 Hz sine wave

♦ 10 130 Hz sine wave

Note

WAV files 02 to 10 contain sounds at different frequencies.

Preparing vehicle

– Park the vehicle in a quiet workshop area.

– Set the volume to “level 2”.

– Set bass and treble to neutral setting.

– Set the balance control (“Fade”) to neutral setting.

Performing audio test

Important

● The aid of an additional person is required for the subsequent work steps.

– Slowly increase the volume until the components causing the noise begin to vibrate.

Important

● The maximum volume of 50 % should not be exceeded.

– Determine and eliminate source of noise.

If the source of noise has been determined and eliminated:

– Perform audio test again, and complete → Rep. gr.52; Check list for locating noises entirely.

Checklist - locating noises

Protocol for locating noisesComplete together with vehicle user.
Vehicle data:Item no.: Brand: Production date: Date: Status: Partner: Engine type: Mileage: Retrofitted components:Gearbox type: Service technician: Has the vehicle been checked?
Can the customer complaint be confirmed? Yes
Yes _
_ No
No _
_When did the noise begin to occur?
Gradually
Area affected by a procedure or accident: _____km
_ It has always existed
Since an accident Shortly
Since a modification _
_Potential damage: (related observations)Black smoke
Battery charge
Vibrations
Warning lamp on
Oil leakage_
_
_
_
_Power loss
Play in steering
Jerking
Excessive force for steering
Suspension bouncing_
_
_
_
_Gearbox fault
Coolant leakage
Bad starting behaviour
Fuel leakage_
_
_
_

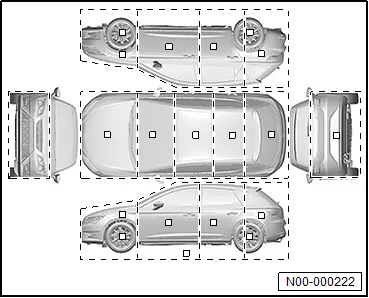

Noise localisation in vehicle:

Noise level:dB__________High_Medium_Low_Pitch of noise High_Medium_Low_Duration of noise: Long_Short_Continuous_How often does noise occur: Intermittent/periodic_Occasionally_Types of noises according to designations:Flapping
Whining
Oscillating
Rattling
Clattering_
_
_
_
_Explosion
Howling
Knocking
Chirping
Humming_
_
_
_
_Crunching
Droning
Grinding
Grunting
Whistling_
_
_
_
_Uncommon
Boom Boom
Bubbling
Buzzing
Jingling
_
_
_
_Puffing
Groaning
Squeaking
Whipping
Knock Knock_
_
_
_
_Screeching
Cracking
Clacking
Sizzling
Creaking_
_
_
_
_Mooing
Whooshing
Crackling
Scratching
Scraping_
_
_
_
_Siren
Rattle
Bells
Chattering
Whirring_
_
_
_
_Murmuring
Click Clack
Clip Clip
Clucking
Tuning fork_
_
_
_
_Pop Pop
Whistle
Lisping
Tap Tap
Ticking_
_
_
_
_Nuance of the noiseResonance (echo)_Metallic sound_Plastic sound_Under which circumstances does the noise occur? Always
Engine off
Idling
At full acceleration _
_
_
_ Often
With ignition switched on
Engine running
When decelerating _
_
_
_ Rarely
With ignition switched off
When accelerating slowly
With vehicle stationary _
_
_
_ Very rarely
When starting engine
When accelerating moderately
When driving _
_
_
_ When braking
When steering
When going downhill
With air conditioning system switched on _
_
_
_ When disengaging clutch
Under load
When going uphill
At air recirculation mode in vehicle interior _
_
_
_ When engaging the clutch
Without load
In right-hand bends
With heater switched on _
_
_
_ When changing gears
When driving through potholes
In left-hand bends
With auxiliary heater switched on _
_
_
_ With interior blower set to low Stage _ With interior blower set to medium stage _ With interior blower set to highest stage _ Other circumstances _Which? _____________________________________________________________In which gear:Manual gearbox
Automatic gearbox_
_1st
P_
_2nd
N_
_3rd
D_
_4th
R_
_5_6_R_Vehicle speed range: 0 25 50 75 100 125 150 175 200 225 250 km/h Engine speed range: 0 1.000 2.000 3.000 4.000 5.000 6.000 7.000Engine condition: Cold_Medium warm_Warm_Weather: Rainy_Dry_Windy_Hot_Ice or snow_Ambient temperature: -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50Condition of road surface:Smooth_Rough_With potholes_No tarmac_Bumpy_ On which seat the noise can be perceived as the most intense? Front right
Rear left_
_Front left
Same on all seats_
_Rear right_Can the source of the noise be localised? Right front area
Right front door
Left rear door
Bumper _
_
_
_ Left front area
Right rear area
Right rear door
Roof _
_
_
_ Front centre area
Left rear area
Rear lid
Solar roof _
_
_
_ Left front door
Rear centre area
Mirror
Body _
_
_
_ Vehicle interior
Engine
Differential
Air conditioner compressor _
_
_
_ Seats
Power train
Intake connecting pipe
Exhaust system _
_
_
_ Interior trims
Gearbox
Turbocharger
Wheel _
_
_
_ Dash panel
Clutch
Coolant pump
Alternator _
_
_
_ Fuel pump
Pulley _
_ Fuel filter
Bearing _
_ Underbody
Belt _
_ Suspension
Other… _
_ Which? ______________________________________________________________________ Remarks: → Remark

1) Always consider loose objects in the glove compartment, the storage compartments in the doors and the luggage compartment including jack, vehicle tool kit and spare wheel.
