Volkswagen ID.3: Trim, noise insulation. Luggage compartment trims

• Overview of fitting locations – luggage compartment trims
• Assembly overview – luggage compartment side trim
• Assembly overview - luggage compartment floor
• Assembly overview – lower rear lid trim
• Assembly overview – upper rear lid trim
• Removing and installing lower rear lid trim
• Removing and installing upper rear lid trim
• Removing and installing luggage compartment side trim
• Removing and installing lock carrier trim
• Removing and installing support for luggage compartment floor

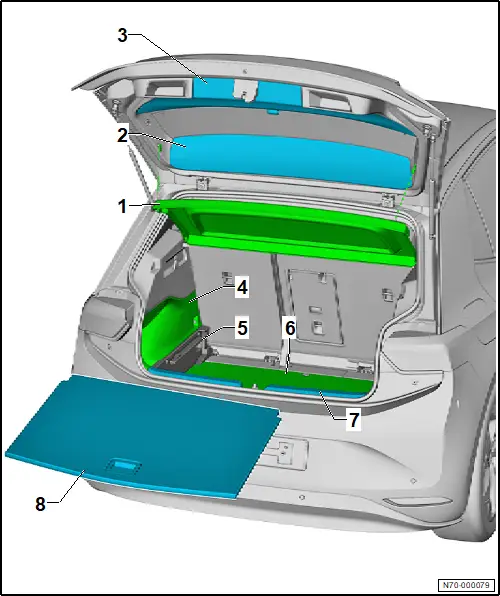

Overview of fitting locations – luggage compartment trims

Overview of fitting locations – luggage compartment trims

1 - Rear shelf

2 - Upper rear lid trim

❏ → Rep. gr.70; Assembly overview – upper rear lid trim

❏ → Rep. gr.70; Removing and installing upper rear lid trim

3 - Lower rear lid trim

❏ → Rep. gr.70; Assembly overview - lower rear lid trim

❏ → Rep. gr.70; Removing and installing lower rear lid trim

4 - Luggage compartment side trim

❏ → Rep. gr.70; Assembly overview – luggage compartment side trim

❏ → Rep. gr.70; Removing and installing luggage compartment side trim

5 - Luggage compartment floor bracket

❏ Depending on equipment/version

❏ → Rep. gr.70; Assembly overview - luggage compartment floor

❏ → Rep. gr.70; Removing and installing support for luggage compartment floor

6 - Luggage compartment floor

❏ → Rep. gr.70; Assembly overview - luggage compartment floor

7 - Lock carrier trim

❏ → Rep. gr.70; Removing and installing lock carrier trim

8 - Variable luggage compartment floor

❏ Depending on equipment/version

❏ → Rep. gr.70; Assembly overview - luggage compartment floor

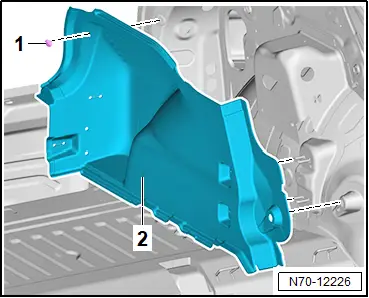

Assembly overview – luggage compartment side trim

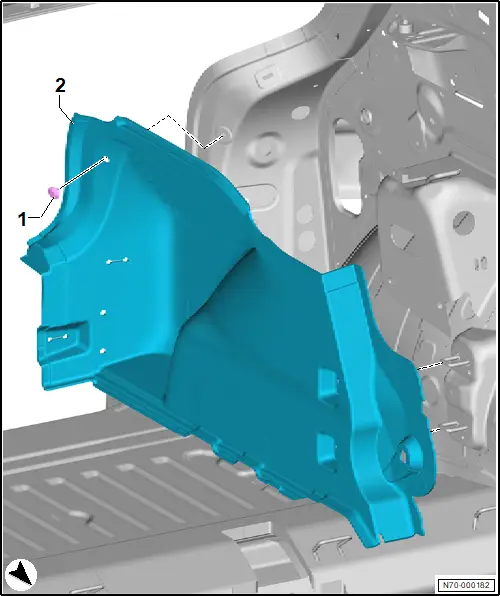

Assembly overview – luggage compartment side trim

Overview shown for left side of vehicle as an example

1 - Plug

2 - Luggage compartment side trim

❏ → Rep. gr.70; Removing and installing luggage compartment side trim

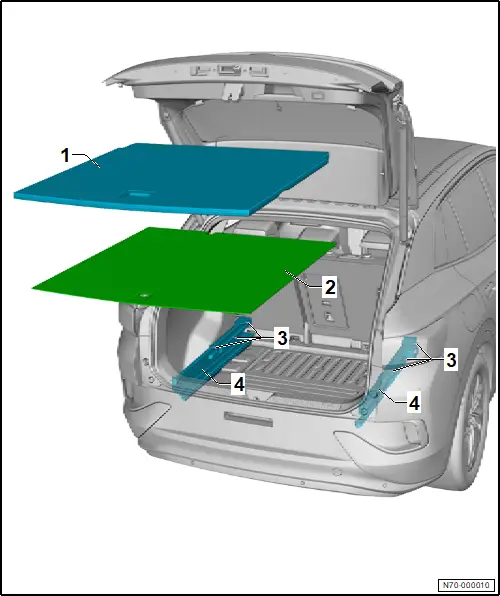

Assembly overview - luggage compartment floor

Assembly overview - luggage compartment floor

1 - Variable luggage compartment floor

❏ Depending on equipment/version

2 - Luggage compartment floor

3 - Bolt

❏ Depending on equipment/version

❏ Qty. 4

❏ 8 Nm

4 - Luggage compartment floor bracket

❏ Depending on equipment/version

❏ → Rep. gr.70; Removing and installing support for luggage compartment floor

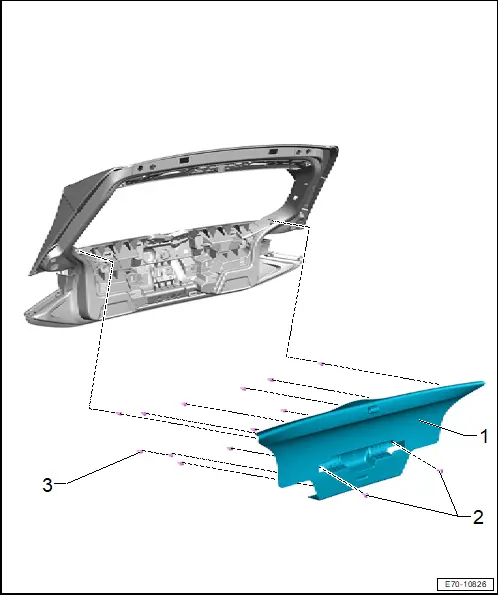

Assembly overview – lower rear lid trim

Assembly overview – lower rear lid trim

1 - Lower rear lid trim

❏ → Rep. gr.70; Removing and installing lower rear lid trim

2 - Clip

❏ Qty. 2

3 - Clip

❏ Qty. 12

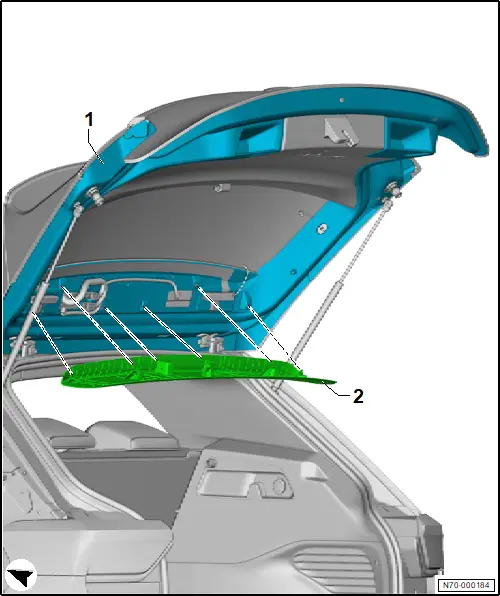

Assembly overview – upper rear lid trim

Assembly overview – upper rear lid trim

1 - Rear lid

2 - Upper rear lid trim

❏ → Rep. gr.70; Removing and installing upper rear lid trim

Removing and installing lower rear lid trim

Removing and installing lower rear lid trim

Special tools and workshop equipment required

♦ removal tool -T40280-

♦ removal wedge -80-200-

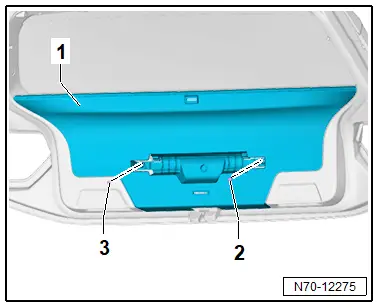

Removing

– Remove warning triangle.

– Remove clips -2- and -3- from lower rear lid trim -1-.

– Use removal wedge -80-200- to unclip lower rear lid trim -2- from rear lid -1-.

Installing

Install in reverse order of removal, observing the following:

– Remove any retaining clips left in rear lid using removal tool -T40280-, and insert them into lower rear lid trim for installation.

Removing and installing upper rear lid trim

Removing and installing upper rear lid trim

Special tools and workshop equipment required

♦ removal tool -T40280-

♦ removal wedge -80-200-

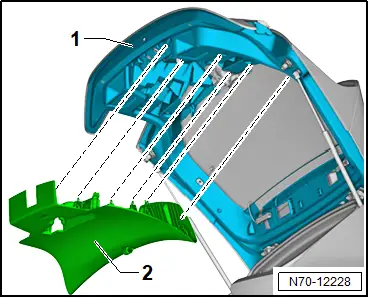

Removing

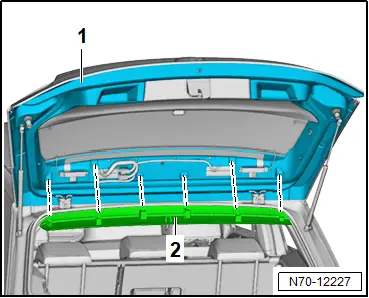

– Use removal wedge -80-200- to unclip upper rear lid trim -2- from rear lid -1-.

Installing

Install in reverse order of removal, observing the following:

– Remove any retaining clips left in rear lid using removal tool -T40280-, and insert them into upper rear lid trim for installation.

Removing and installing luggage compartment side trim

Removing and installing luggage compartment side trim

Special tools and workshop equipment required

♦ removal lever -80-200-

Removing

Removal and installation are described for left side of vehicle as an example.

– Remove first aid kit.

– Remove C-pillar trim → Rep. gr.70; Removing and installing C-pillar trim.

– Remove rear seat backrest → Rep. gr.72; Removing and installing rear seat backrest.

– Remove lock carrier trim → Rep. gr.70; Removing and installing lock carrier trim.

Vehicles with variable luggage compartment floor

– Remove variable luggage compartment floor.

– Remove support for luggage compartment floor covering → Rep. gr.70; Removing and installing support for luggage compartment floor covering.

All vehicles (continued)

– Free off luggage compartment side trim -2- in area of rear lid seal.

– Remove plug -1- using removal lever -80-200-.

– Remove luggage compartment side trim -2-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.70; Assembly overview – luggage compartment side trim

Removing and installing lock carrier trim

Removing and installing lock carrier trim

Special tools and workshop equipment required

♦ removal tool -T40280-

Removing

Vehicles with luggage compartment floor

– Remove luggage compartment floor.

All vehicles (continued)

– Remove luggage compartment floor covering.

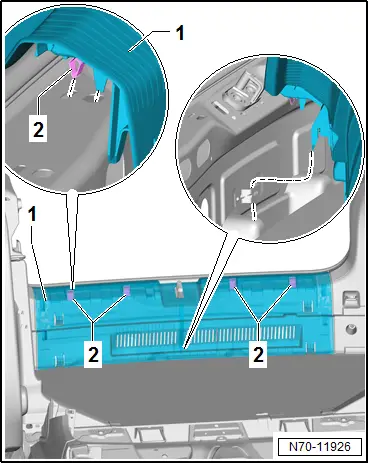

– Free off lock carrier trim -1- in area of rear lid seal.

– Remove lock carrier trim -1- upwards.

Installing

Install in reverse order of removal, observing the following:

– Remove any retaining clips left in body using removal tool -T40280-, and insert them into lock carrier trim for installation.

Removing and installing support for luggage compartment floor

Removing and installing support for luggage compartment floor

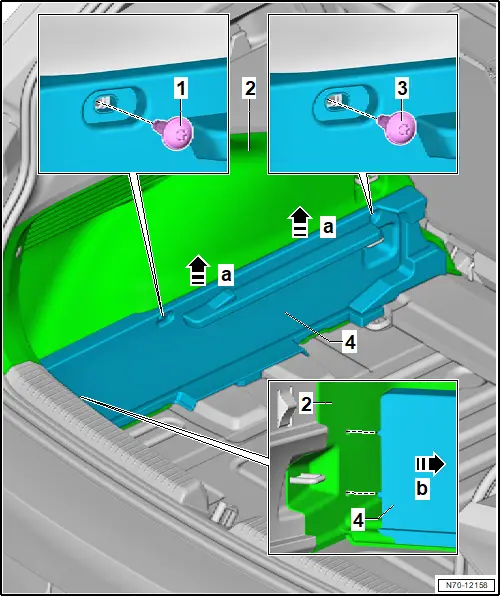

Removing

Removal and installation are described for left side of vehicle as an example.

– Remove luggage compartment floor.

– Unscrew bolts -1- and -3-.

– Swivel support for luggage compartment floor -4- in direction of -arrow a-.

– Pull support for luggage compartment floor -4- towards front and out of luggage compartment side trim -2- -arrow b-, and remove it.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.70; Assembly overview – luggage compartment floor
