Volkswagen ID.3: Trim, noise insulation. Dash panel

• Assembly overview - dash panel
• Removing and installing dash panel end cover
• Removing and installing loudspeaker trim
• Removing and installing dash panel
• Removing and installing side defroster vent
• Removing and installing centre vent
• Removing and installing cover for dash panel/head-up display
• Removing and installing tunnel support cover
• Removing and installing outer dash panel vents

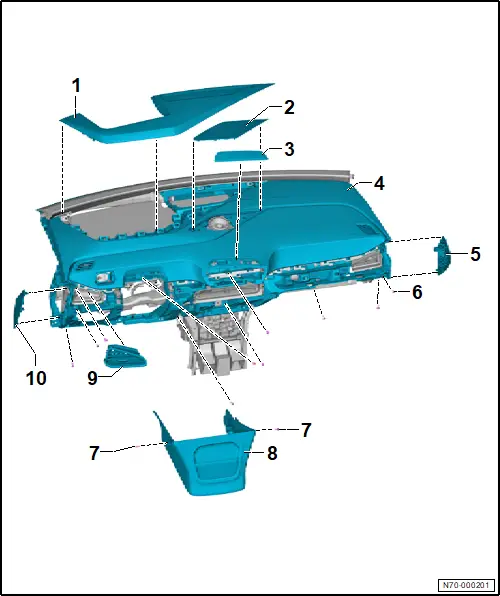

Assembly overview - dash panel

Assembly overview - dash panel

Overview is shown for left-hand drive vehicle as an example

1 - Cover for dash panel/head-up display

❏ Depending on equipment/installation period

❏ → Rep. gr.70; Removing and installing cover for dash panel/head-up display

❏ Vehicles without head-up display → Rep. gr.70; Removing and installing loudspeaker trim

2 - Loudspeaker trim

❏ → Rep. gr.70; Removing and installing loudspeaker trim

3 - Information electronics cover

❏ → Rep. gr.68; Removing and installing information electronics cover

4 - Dash panel

❏ → Rep. gr.70; Removing and installing dash panel

5 - Dash panel end cover

❏ → Rep. gr.70; Removing and installing dash panel end cover

6 - Bolt

❏ Qty. 10

❏ 1.5 Nm

7 - Bolt

❏ Qty. 2

❏ 1.5 Nm

8 - Tunnel support cover

❏ → Rep. gr.70; Removing and installing tunnel support cover

9 - Outer dash panel vents

❏ → Rep. gr.70; Removing and installing outer dash panel vents

10 - Dash panel end cover

❏ → Rep. gr.70; Removing and installing dash panel end cover

Removing and installing dash panel end cover

Removing and installing dash panel end cover

Removing

Removal and installation are described for left side of vehicle as an example.

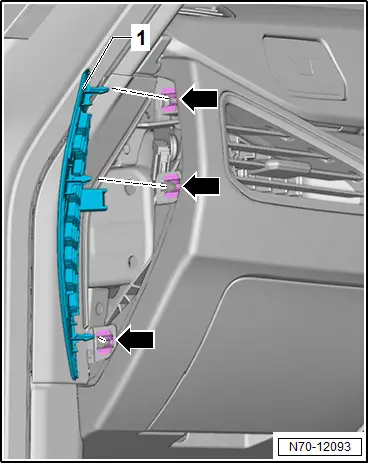

– Using commercially available plastic wedge, unclip dash panel end cover -1- in area of fasteners -arrows-.

Passenger side

– Disconnect electrical connector on key-operated switch to deactivate airbag on front passenger side -E224- → Rep. gr.69; Removing and installing key-operated switch to deactivate airbag on front passenger side [E224].

All vehicles (continued)

Installing

Install in reverse order of removal, observing the following:

– Connect electrical connector until it engages audibly.

Removing and installing loudspeaker trim

Removing and installing loudspeaker trim

Removing

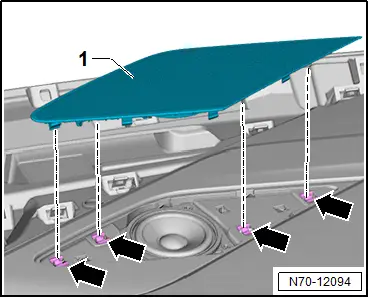

– Unclip loudspeaker trim -1- using commercially available plastic wedge -arrows-.

Installing

Install in reverse order.

Removing and installing dash panel

Removing and installing dash panel

Removal and installation are described for a left-hand drive vehicle as an example.

Removing

– Remove control unit for front display and information control panel -J685- → Communication; Rep. gr.91; Components/control units; Removing and installing control unit for front display and information control panel [J685].

– Remove dash panel trim on front passenger side → Rep. gr.68; Removing and installing dash panel trim on front passenger side.

– Remove steering column electronics control unit -J527- → Electrical system; Rep. gr.94; Steering column switch module; Removing and installing steering column electronics control unit [J527].

– Remove cover for dash panel/head-up display → Rep. gr.70; Removing and installing cover for dash panel/head-up display.

– Remove upper A-pillar trim → Rep. gr.70; Removing and installing upper A-pillar trim.

– Remove dynamic light strip 1 for information in dash panel -L385- → Electrical system; Rep. gr.96; Lights; Removing and installing dynamic light strip 1 for information in dash panel.

– Remove loudspeaker for emergency call module -R335- → Communication; Rep. gr.91; Components/control units; Removing and installing loudspeaker for emergency call module [R335].

– Remove left footwell light -W9-/right footwell light -W10- → Electrical system; Rep. gr.96; Lights; Removing and installing footwell light [W9]/[W10].

– Disconnect electrical connector for light 1 for dash panel contour lighting [L243] and light 2 for dash panel contour lighting [L244]/[L245] → Electrical system ID.3; Rep. gr.96; Lights; Removing and installing light for dash panel contour lighting

– Disconnect electrical connector of right vent temperature sender -G151- → Heating, air conditioning; Rep. gr.87; Other control components; Removing and installing right vent temperature sender [G151]

– Disconnect electrical connector of left vent temperature sender -G150- → Heating, air conditioning; Rep. gr.87; Other control components; Removing and installing left vent temperature sender [G150]

– Disconnect electrical connector of airbag unit on front passenger side → Rep. gr.69; Removing and installing airbag unit on front passenger side with igniter

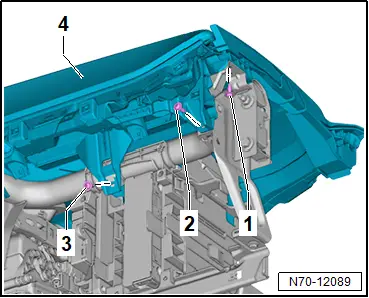

– Undo bolts -1-, -2- and -3- from dash panel -4-.

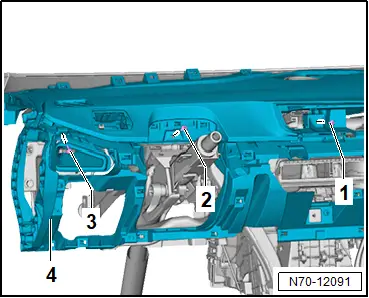

– Undo bolts -1-, -2- and -3- from dash panel -4-.

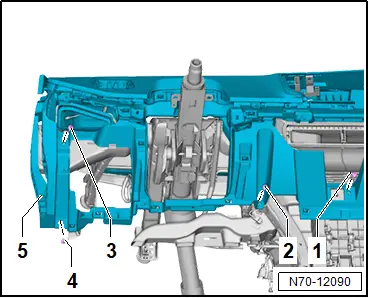

– Unscrew bolts -1-, -2-, -3- and -4- from dash panel -5-.

– Pull off dash panel -1- until electrical connector of operating unit for lighting -EX59- is accessible.

– Disconnect connector of operating unit for lighting -EX59-.

The aid of an additional person is required for the subsequent work steps.

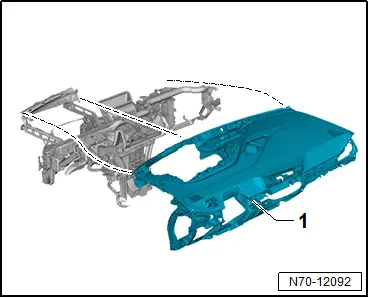

– Detach dash panel -1-.

– Remove dash panel -1-, and lay it down on a clean surface.

Installing

Install in reverse order of removal, observing the following:

Electrical connectors must engage audibly.

– Fit electrical connectors.

Continued

Tightening torques

♦ → Rep. gr.70; Assembly overview - dash panel

Removing and installing side defroster vent

Removing and installing side defroster vent

Removing

Removal and installation are described for the left side of vehicle as an example.

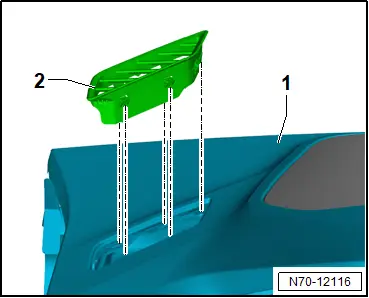

– Using commercially available plastic wedge, lever side defroster vent -2- upwards out of dash panel -1-.

Installing

Install in reverse order.

Removing and installing centre vent

Removing and installing centre vent

Special tools and workshop equipment required

♦ wedge -T10383/1-

Removing

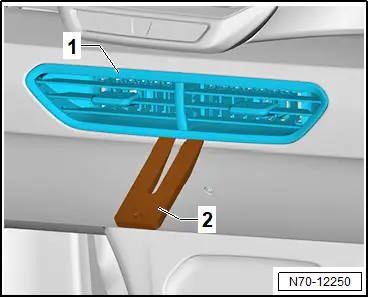

– Unclip centre vent -1- at top and bottom using wedge -T10383/1- -2-.

Installing

Install in reverse order of removal.

Removing and installing cover for dash panel/head-up display

Removing and installing cover for dash panel/head-up display

Removing

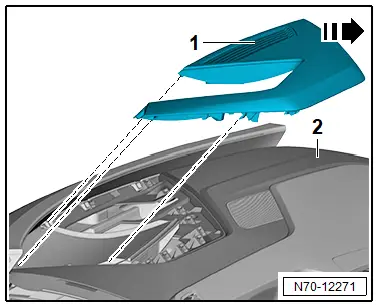

– Using commercially available plastic wedge, unclip cover for dash panel/head-up display -1- from dash panel -2- in direction of -arrow-.

Installing

Install in reverse order.

Removing and installing tunnel support cover

Removing and installing tunnel support cover

Removing

– Remove centre console → Rep. gr.68; Removing and installing centre console.

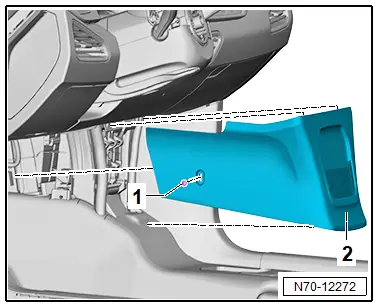

– Unscrew bolt -1- on both sides of tunnel support cover -2-.

– Remove tunnel support cover -2-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.70; Assembly overview – dash panel

Removing and installing outer dash panel vents

Removing and installing outer dash panel vents

Special tools and workshop equipment required

♦ wedge -T10383/1-

Removing

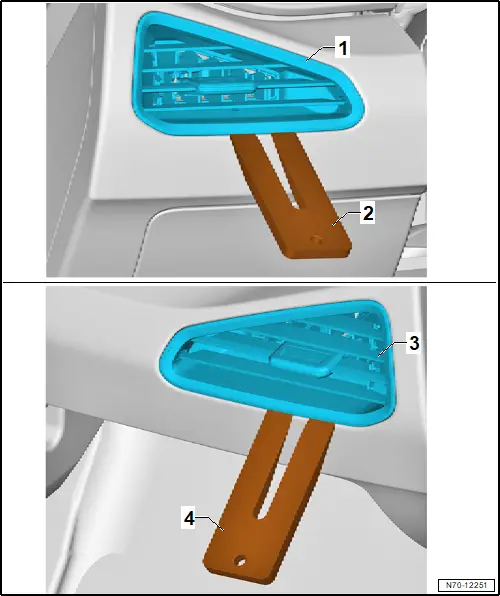

– Unclip outer left dash panel vent -1- at top and bottom using wedge -T10383/1- -2-.

– Unclip outer right dash panel vent -3- at top and bottom using wedge -T10383/1- -4-.

Installing

Install in reverse order.
