Volkswagen ID.3: Passenger protection. Airbag crash sensors

• Assembly overview – airbag crash sensors
• Removing and installing front airbag crash sensor
• Removing and installing front side airbag crash sensor [G179/G180]
• Removing and installing rear side airbag crash sensor [G256/G257]

Assembly overview – airbag crash sensors

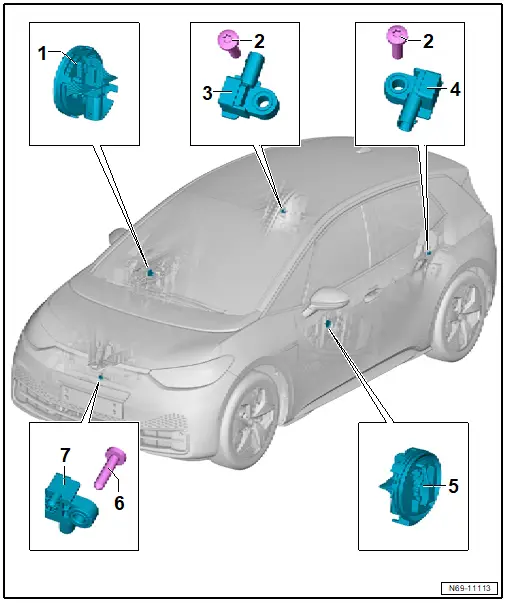

Assembly overview – airbag crash sensors

1 - Side airbag crash sensor

❏ Left-hand drive vehicles: side airbag crash sensor on front passenger side -G180-

❏ Right-hand drive vehicles: side airbag crash sensor on driver side -G179-

❏ Fitting location: on door assembly carrier

❏ → Rep. gr.69; Removing and installing front side airbag crash sensor [G179/G180]

2 - Bolt

❏ 9 Nm

3 - Rear side airbag crash sensor

❏ Left-hand drive vehicles: rear side airbag crash sensor on passenger side -G257-

❏ Right-hand drive vehicles: rear side airbag crash sensor on driver side -G256-

❏ Fitting location: behind rear sill panel trim

❏ → Rep. gr.69; Removing and installing rear side airbag crash sensor [G256/G257]

4 - Rear side airbag crash sensor

❏ Left-hand drive vehicles: rear side airbag crash sensor on driver side -G256-

❏ Right-hand drive vehicles: rear side airbag crash sensor on passenger side -G257-

❏ Fitting location: behind rear sill panel trim

❏ → Rep. gr.69; Removing and installing rear side airbag crash sensor [G256/G257]

5 - Side airbag crash sensor

❏ Left-hand drive vehicles: side airbag crash sensor on driver side -G179-

❏ Right-hand drive vehicles: side airbag crash sensor on passenger side -G180-

❏ Fitting location: on door assembly carrier

❏ → Rep. gr.69; Removing and installing front side airbag crash sensor [G179/G180]

6 - Bolt

❏ 9 Nm

7 - Crash sensor for front airbag

❏ Crash sensor for front airbag -G190-

❏ Fitting location: on lock carrier support in centre of vehicle

❏ → Rep. gr.69; Removing and installing crash sensor for front airbag [G190]/[G284]

Removing and installing front airbag crash sensor

Removing and installing front airbag crash sensor

Crash sensor for front airbag -G190- is referred to hereafter as crash sensor.

Removing

WARNING

Danger of airbag triggering.

Risk of injury.

– Check whether the airbag warning lamp lights or flashes.

– If the airbag warning lamp lights or flashes, read out the event memory.

– If there is an entry in the event memory, follow the instructions in Guided Fault Finding.

– Disconnect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Remove bumper cover → General body repairs, exterior; Rep. gr.63; Front bumper; Removing and installing bumper cover.

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

– Discharge static electricity by briefly touching door striker plate.

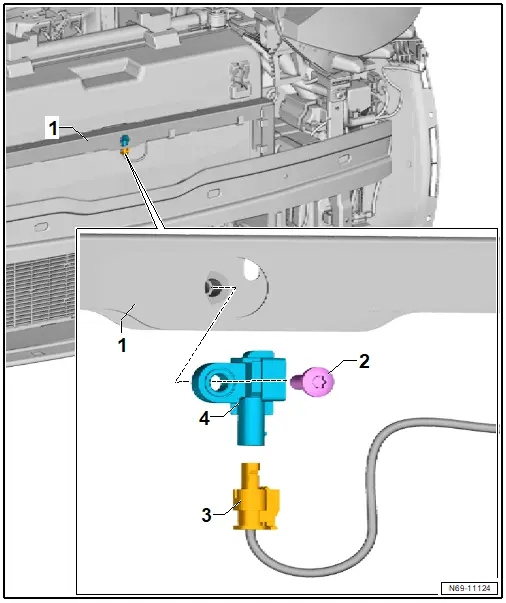

– Unscrew bolt -2-.

– Pull crash sensor -4- off lock carrier support -1-.

– Disconnect electrical connector -3-.

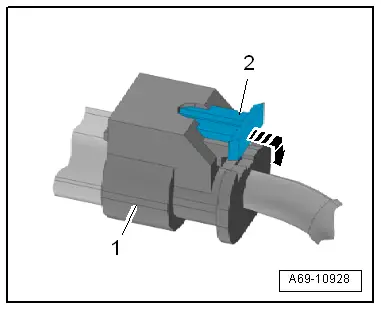

– To do this, pull out connector lock -2-, and push it down in direction of -arrow-.

Installing

Install in reverse order of removal, observing the following:

– Make sure that electrical connector is pushed on until it can be heard to engage.

– Ensure that wire is not trapped.

– Connect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

CAUTION

Pyrotechnic components can trigger unintentionally.

Risk of injury.

– Keep far away from pyrotechnic components when switching on ignition.

– Switch on ignition.

– Read and clear event memory with → Vehicle diagnostic tester.

Tightening torques

♦ → Rep. gr.69; Assembly overview – airbag crash sensors

Removing and installing front side airbag crash sensor [G179/G180]

Removing and installing front side airbag crash sensor [G179/G180]

Side airbag crash sensor on driver side -G179- and side airbag crash sensor on front passenger side -G180- are referred to hereafter as crash sensor.

Removal and installation are described for the left side of vehicle as an example.

Removing

WARNING

Risk of airbag being triggered

Risk of injury

– Check whether airbag warning lamp is on or is flashing.

– If airbag warning lamp is on or flashing, read out event memory.

– If event memory shows entry “Short to positive”, disconnect battery: “Electrical system; Rep. gr. 27; Battery; Disconnecting and connecting battery”.

– Follow instructions in Guided Fault Finding if there is an entry in the event memory.

– If airbag warning lamp is not on or flashing, switch ignition off. Deposit vehicle key and other drive authorisation systems (e.g. smartphone) outside vehicle and wait 10 seconds.

– Disconnect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Remove front door trim → Rep. gr.70; Removing and installing front door trim.

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

– Discharge static electricity by briefly touching door striker plate.

– Pull out connector lock, and release it.

– Disconnect electrical connector.

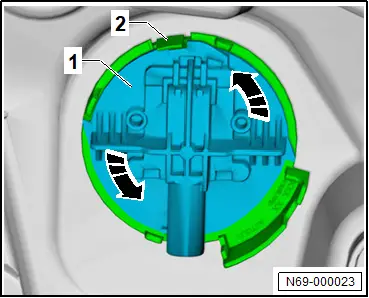

– Release locating element -2- and turn crash sensor -1- 45° in direction of -arrow-.

– Detach and remove crash sensor -1-.

Installing

Install in reverse order of removal, observing the following:

Important

● Make sure that door forms an effective seal.

– Connect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury.

– Stay as far back as possible from pyrotechnic components when switching on the ignition.

– Switch on ignition.

– Read and clear event memory using → Vehicle diagnostic tester.

Removing and installing rear side airbag crash sensor [G256/G257]

Removing and installing rear side airbag crash sensor [G256/G257]

Rear side airbag crash sensor on driver side -G256- and rear side airbag crash sensor on passenger side -G257- will henceforth be referred to as “crash sensor”.

Removal and installation are described for the left side of vehicle as an example.

Removing

WARNING

Risk of airbag being triggered

Risk of injury

– Check whether airbag warning lamp is on or is flashing.

– If airbag warning lamp is on or flashing, read out event memory.

– If event memory shows entry “Short to positive”, disconnect battery: “Electrical system; Rep. gr. 27; Battery; Disconnecting and connecting battery”.

– Follow instructions in Guided Fault Finding if there is an entry in the event memory.

– If airbag warning lamp is not on or flashing, switch ignition off. Deposit vehicle key and other drive authorisation systems (e.g. smartphone) outside vehicle and wait 10 seconds.

– Disconnect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Remove rear sill panel moulding → Rep. gr.70; Removing and installing rear sill panel moulding.

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

– Discharge static electricity by briefly touching door striker plate.

– Pull out connector lock, and release it.

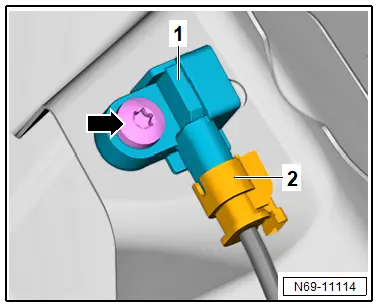

– Disconnect electrical connector -2-.

– Unscrew bolt -arrow-.

– Detach crash sensor -1-.

Installing

Install in reverse order of removal, observing the following:

– Connect electrical connector until it engages audibly.

– Make sure that electrical wire is not trapped.

– Connect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury.

– Stay as far back as possible from pyrotechnic components when switching on the ignition.

– Switch on ignition.

– Read and clear event memory using → Vehicle diagnostic tester.

Tightening torques

♦ → Rep. gr.69; Assembly overview - crash sensors for airbags
