Volkswagen ID.3: Interior equipment. Compartments & covers

• Overview of fitting locations - storage compartments/covers/trim panels
• Assembly overview – dash panel trim on driver side, left-hand drive vehicles
• Assembly overview - dash panel trim on front passenger side
• Assembly overview - steering column trim
• Assembly overview - glove compartment
• Removing and installing dash panel trim on driver side, left-hand drive vehicles
• Removing and installing dash panel trim on driver side, right-hand drive vehicles
• Removing and installing gap cover for dash panel insert
• Removing and installing dash panel cover (passenger side)
• Removing and installing upper steering column trim
• Removing and installing lower steering column trim
• Removing and installing glove compartment opener
• Removing and installing glove compartment cover
• Removing and installing restrictor for glove compartment
• Service position of glove compartment
• Removing and installing information electronics cover

Overview of fitting locations - storage compartments/covers/trim panels

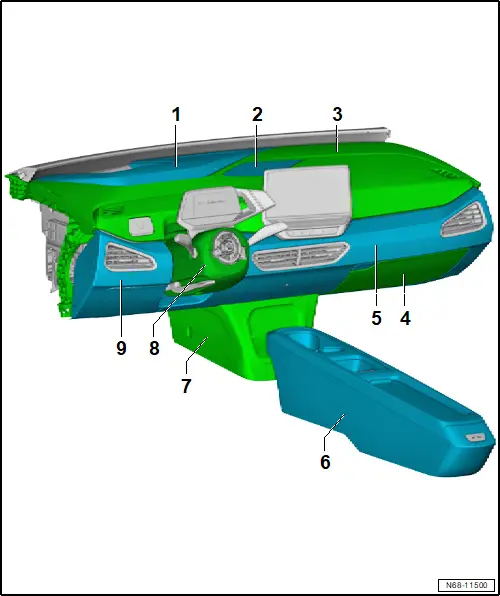

Overview of fitting locations - storage compartments/covers/trim panels

Overview is shown for left-hand drive vehicle as an example

1 - Cover for dash panel/head-up display

❏ → Rep. gr.70; Removing and installing cover for dash panel/head-up display

2 - Loudspeaker trim

❏ → Rep. gr.70; Removing and installing loudspeaker trim

3 - Dash panel

❏ → Rep. gr.70; Assembly overview - dash panel

❏ → Rep. gr.70; Removing and installing dash panel

4 - Glove compartment cover

❏ → Rep. gr.68; Assembly overview - glove compartment

❏ → Rep. gr.68; Removing and installing glove compartment cover

5 - Dash panel trim on front passenger side

❏ → Rep. gr.68; Removing and installing dash panel cover (passenger side)

6 - Centre console

❏ → Rep. gr.68; Assembly overview - centre console

❏ → Rep. gr.68; Removing and installing centre console

7 - Tunnel support cover

❏ → Rep. gr.70; Removing and installing tunnel support cover

8 - Steering column trim

❏ → Rep. gr.68; Assembly overview - steering column trim

9 - Dash panel cover on driver side

❏ → Rep. gr.68; Assembly overview - dash panel cover (driver side)

❏ → Rep. gr.68; Removing and installing dash panel cover on driver side

Assembly overview – dash panel trim on driver side, left-hand drive vehicles

Assembly overview – dash panel trim on driver side, left-hand drive vehicles

1 - Dash panel end cover

❏ → Rep. gr.70; Removing and installing dash panel end cover

2 - Retaining clip

❏ Qty. 5

3 - Dash panel trim on driver side

❏ → Rep. gr.68; Removing and installing dash panel trim on driver side, left-hand drive vehicles

4 - Bolt

❏ Qty. 3

❏ 1.5 Nm

5 - Fuse box cover

Assembly overview - dash panel trim on front passenger side

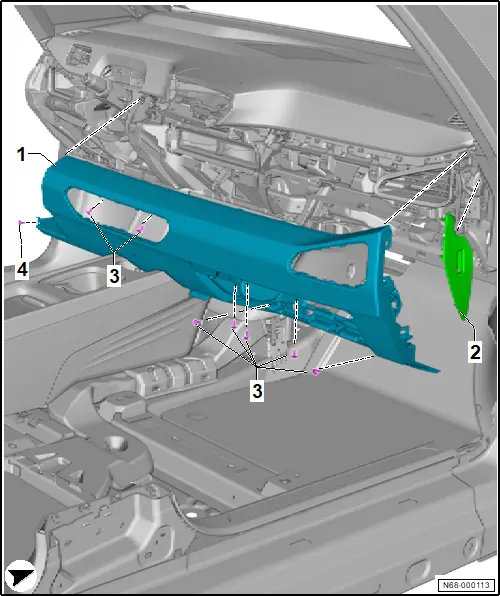

Assembly overview - dash panel trim on front passenger side

The overview shows a left-hand drive vehicle as an example. For right-hand drive vehicles, the layout is a mirror image.

1 - Dash panel trim on front passenger side

❏ → Rep. gr.68; Removing and installing dash panel trim on front passenger side

2 - Dash panel end cover

❏ → Rep. gr.70; Removing and installing dash panel end cover

3 - Bolt

❏ Qty. 7

❏ → Fig.

4 - Bolt

❏ Depending on equipment/version

❏ → Fig.

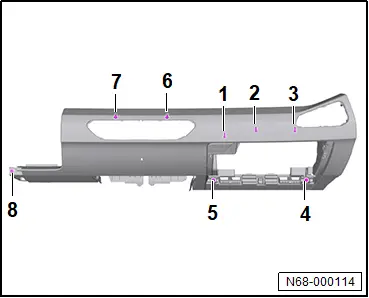

Specified torque and tightening sequence

BoltsSpecified torque-1- to -7-1.5 Nm-8- depending on equipment/version1.5 Nm

Assembly overview - steering column trim

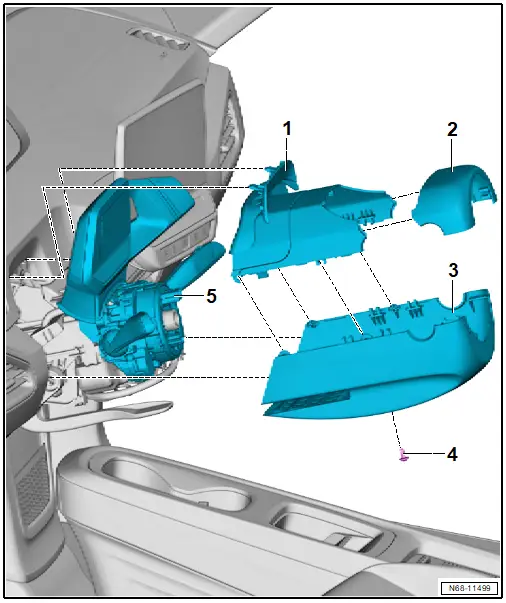

Assembly overview - steering column trim

The overview shows a left-hand drive vehicle as an example.

1 - Gap cover for dash panel insert

❏ → Rep. gr.68; Removing and installing gap cover for dash panel insert

2 - Upper steering column trim

❏ → Rep. gr.68; Removing and installing upper steering column trim

3 - Lower steering column trim

❏ → Rep. gr.68; Removing and installing lower steering column trim

4 - Bolt

❏ 2.5 Nm

5 - Steering column electronics control unit -J527-

❏ → Electrical system; Rep. gr.94; Steering column switch module; Removing and installing steering column electronics control unit [J527]

Assembly overview - glove compartment

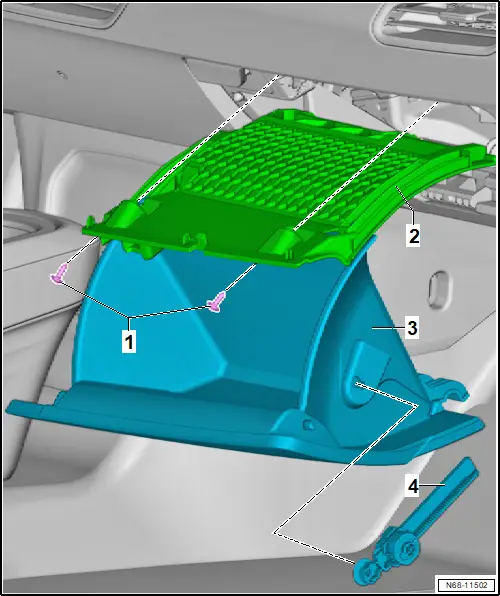

Assembly overview - glove compartment

Overview is shown for left-hand drive vehicle as an example

1 - Bolt

❏ Qty. 2

❏ 1.5 Nm

2 - Glove compartment cover

❏ → Rep. gr.68; Removing and installing glove compartment cover

3 - Glove compartment cover

❏ → Rep. gr.68; Removing and installing glove compartment cover

❏ → Rep. gr.68; Service position of glove compartment

4 - Restrictor in glove compartment

❏ → Rep. gr.68; Removing and installing restrictor for glove compartment

Removing and installing dash panel trim on driver side, left-hand drive vehicles

Removing and installing dash panel trim on driver side, left-hand drive vehicles

Removing

– Remove dash panel end cover on driver side → Rep. gr.70; Removing and installing dash panel end cover.

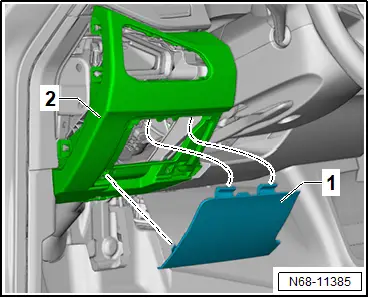

– Unclip fuse box cover -1- in bottom area and pull out downwards from dash panel trim on driver side -2-.

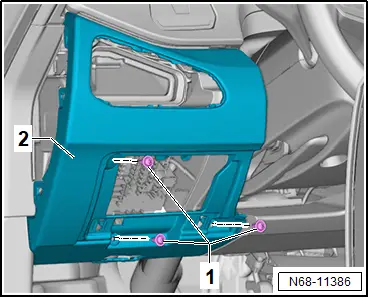

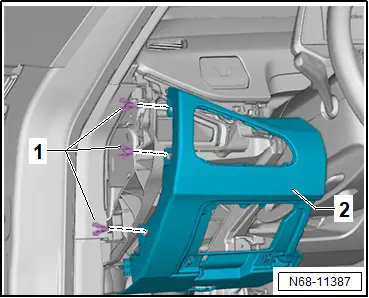

– Unscrew bolts -1- from dash panel trim on driver side -2-.

– Remove side clips -1- using commercially available plastic wedge.

– Remove dash panel trim on driver side -2-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.68; Assembly overview – dash panel trim on driver side, left-hand drive vehicles

Removing and installing dash panel trim on driver side, right-hand drive vehicles

Removing and installing dash panel trim on driver side, right-hand drive vehicles

Removing

– Remove dash panel end cover on driver side → Rep. gr.70; Removing and installing dash panel end cover.

– Remove side clips using commercially available plastic wedge.

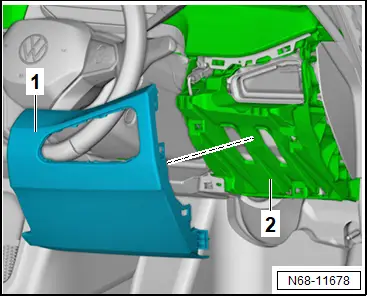

– Unclip dash panel trim on driver side -1- from mountings in base -2-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.68; Assembly overview – dash panel trim on driver side, right-hand drive vehicles

Removing and installing gap cover for dash panel insert

Removing and installing gap cover for dash panel insert

Removal and installation are described for a left-hand drive vehicle as an example.

Removing

– Pull out steering wheel as far as possible, and move it to lowest position. Use the full range of the steering column adjustment for this purpose.

– Use a commercially available plastic wedge to unclip front trim of dash panel insert gap cover -1-.

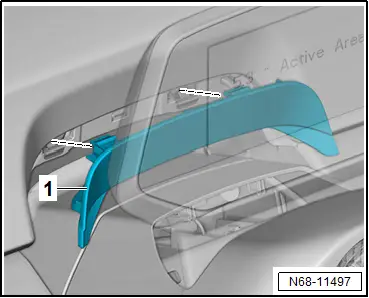

– Unclip dash panel insert gap cover -1- upwards using commercially available plastic wedge.

Installing

Install in reverse order.

Removing and installing dash panel cover (passenger side)

Removing and installing dash panel cover (passenger side)

Removal and installation are described for a left-hand drive vehicle as an example.

– Remove dash panel end cover → Rep. gr.70; Removing and installing dash panel end cover.

– Remove dash panel trim on driver side → Rep. gr.68; Removing and installing dash panel trim on driver side.

– Remove centre vent → Rep. gr.70; Removing and installing steering centre vent.

– Remove tunnel support cover → Rep. gr.70; Removing and installing tunnel support cover.

Left-hand drive vehicles

– Remove glove compartment cover → Rep. gr.68; Removing and installing glove compartment cover.

All vehicles (continued)

Right-hand drive vehicles

– Remove glove compartment cover → Rep. gr.68; Removing and installing glove compartment cover.

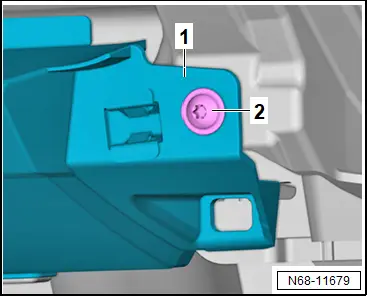

– Unscrew bolt -2- from dash panel trim on front passenger side -1-.

All vehicles (continued)

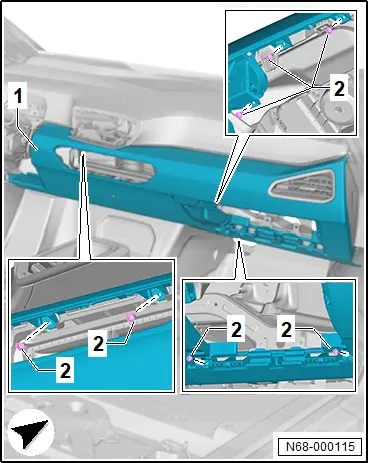

– Unscrew bolts -2- from dash panel trim on front passenger side -1-.

– Remove dash panel trim on front passenger side -1-.

– Separate electrical connector.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.68; Assembly overview - dash panel cover (passenger side)

Removing and installing upper steering column trim

Removing and installing upper steering column trim

Removal and installation are described for a left-hand drive vehicle as an example.

Removing

– Remove steering wheel → Running gear, axles, steering; Rep. gr.48; Steering wheel; Removing and installing steering wheel.

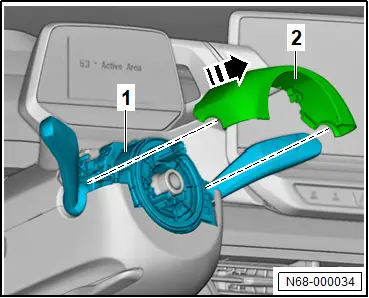

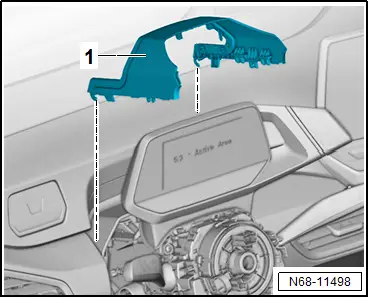

– Using commercially available plastic wedge, lever upper steering column trim -2- in direction of -arrow- off steering column electronics control unit -J527--1-.

Installing

Install in reverse sequence of removal.

Removing and installing lower steering column trim

Removing and installing lower steering column trim

Removal and installation are described for a left-hand drive vehicle as an example.

Removing

– Remove upper steering column trim → Rep. gr.68; Removing and installing upper steering column trim.

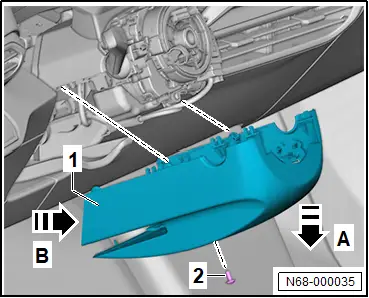

– Unscrew bolt -2-.

– Swing lower steering column trim -1- in direction of -arrow A-, and unclip it.

– Disconnect electrical connector.

– Remove lower steering column trim -1- in direction of -arrow B-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.68; Assembly overview - steering column trim

Removing and installing glove compartment opener

Removing and installing glove compartment opener

The glove compartment opening mechanism is clipped onto the rear of the dash panel trim on the front passenger side.

Removing

– Remove dash panel trim on front passenger side → Rep. gr.68; Removing and installing dash panel trim on front passenger side.

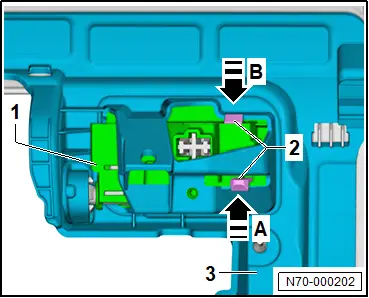

– Press retaining tabs -2- in direction of arrows -A and B-.

– Guide out glove box opening mechanism -1- from dash panel trim on front passenger side -3-.

Installing

Install in reverse order.

Removing and installing glove compartment cover

Removing and installing glove compartment cover

Removal and installation are described for a left-hand drive vehicle as an example.

Removing

– Bring glove compartment cover to service position → Rep. gr.68; Glove compartment, service position.

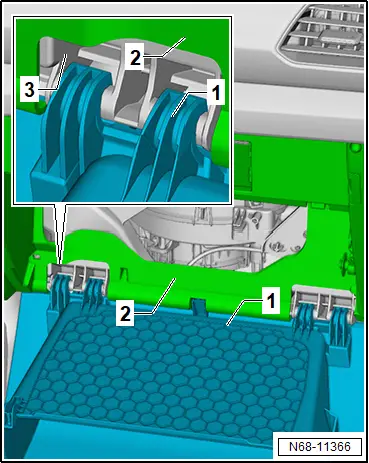

– Unclip glove compartment cover -1- from mountings -3- of dash panel cover on front passenger side -2-.

Installing

Install in reverse order.

Removing and installing restrictor for glove compartment

Removing and installing restrictor for glove compartment

Removal and installation are described for a left-hand drive vehicle as an example.

Removing

– Bring glove compartment cover to service position → Rep. gr.68; Glove compartment, service position.

– If fitted, disconnect electrical connector -3-.

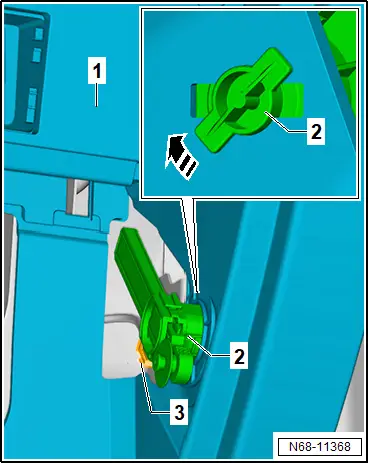

– Turn restrictor -2- in direction of -arrow- in mounting of glove compartment on front passenger side -1-, and remove it.

Installing

Install in reverse order.

Service position of glove compartment

Service position of glove compartment

Moving to service position

Removal and installation are described for a left-hand drive vehicle as an example.

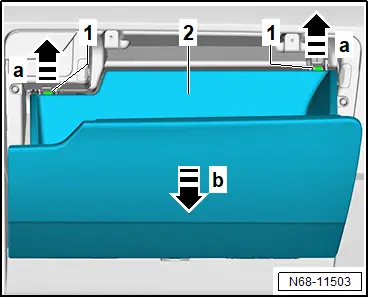

– Open glove compartment cover -2-.

– Push stops -1- from glove compartment cover -2- in direction of -arrow a-.

On right-hand drive vehicles, stops are located on side of glove compartment cover and must be pressed outwards for removal.

– Fold out glove compartment cover -2- as far as stop in direction of -arrow b-.

– Unclip push rod from restrictor at side of glove compartment cover -2-.

Moving from service position

– Clip in push rod of restrictor at side on glove compartment cover, and slowly close glove compartment cover until it is heard to engage.

Removing and installing information electronics cover

Removing and installing information electronics cover

Removing

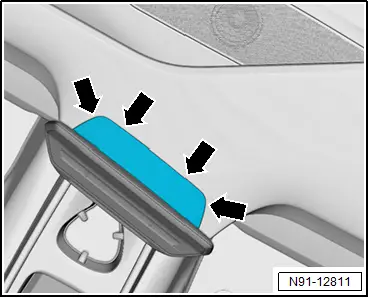

– Use commercially available plastic wedge to unclip information electronics cover -arrows-.

Installing

Install in reverse order.
